Swarovski Habicht AV 3-9x36 Rifle Scope - TDS Reticle 52038 Rifle Scope
Tap Tap to Zoom
Product No Longer Available
Unfortunately Swarovski Habicht AV 3-9x36 Rifle Scope - TDS Reticle 52038 Rifle Scope is not listed by OpticsForYou.You can also explore other items in the Riflescopes yourself to try and find the perfect replacement for you!
Product Info for Swarovski Habicht AV 3-9x36 Rifle Scope - TDS Reticle 52038 Rifle Scope
The Swarovski Habicht AV 3-9x36 Rifle Scope - TDS Reticle 52038 Rifle Scope is here at Opticsforyou.com and as usual we offer great discounts !
Purchase your new Swarovski Habicht AV 3-9x36 Rifle Scope - TDS Reticle 52038 Rifle Scope from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

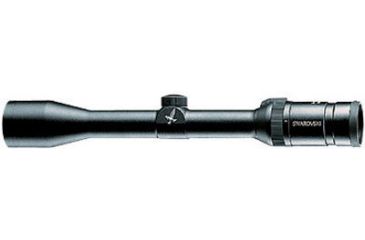

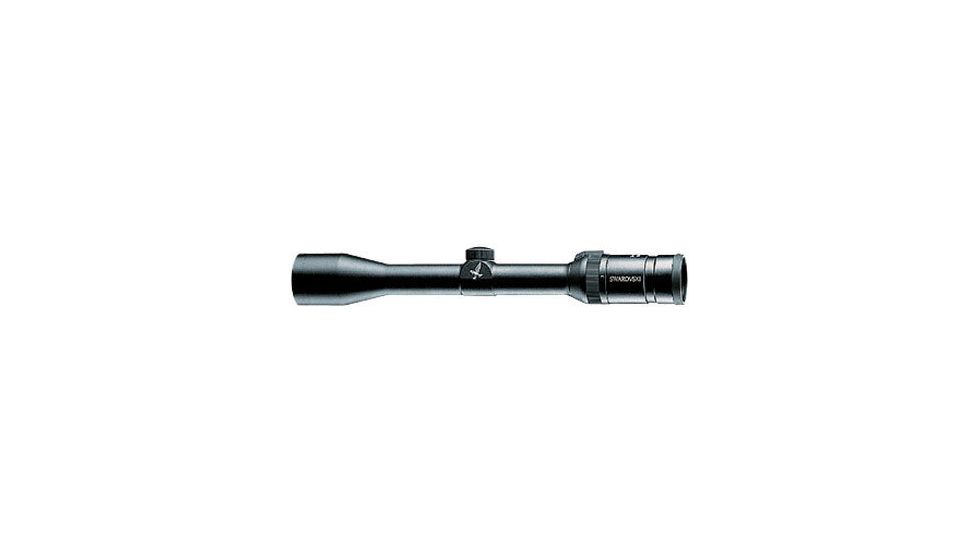

The lightweight and very compact construction of Swarovski 52038 Habicht AV 3-9x36 Rifle Scopes w/ TDS Reticle makes this ideal for mountain hunting and stalking. Swarovski Habicht AV 3-9x36 TDS Rifle Scope features top quality resolution and amazing brightness in a 1" tube with reticle in the second image plane.
Specifications for Habicht AV 3 - 9x36 Swarovski Rifle Scopes w/ TDS Reticle:
| Magnification:Â | Â 3-9x | |
| Objective lens diameter (mm):Â | Â 36 | |
| Objective lens diameter (in):Â | Â 1.42 | |
| Exit pupil, diameter (mm):Â | Â 4-Dec | |
| Exit pupil, diameter (in):Â | Â 0.47-0.16 | |
| Eye relief (mm):Â | Â 90 | |
| Eye relief (in):Â | Â 3.5 | |
| Field of view, real (m/1000 m):Â | Â 13-4.5 | |
| Field of view, real (ft/1000 yds):Â | Â 39-13.5 | |
| Field of view, real (degree):Â | Â 7.4-2.6 | |
| Field of view, apparent (degree):Â | Â 22.7 | |
| Diopter compensation (dpt):Â | Â ?2.5 | |
| Transmission (%):Â | Â 94 | |
| Twilight factor (DIN 58388):Â | Â 9-18 | |
| Impact point correction per click (mm/100 m):Â | Â 7 | |
| Impact point correction per click (in/100 yds):Â | Â 0.25 | |
| Max. elevation/windage adjustment range (m/100 m):Â | Â 1.6 | |
| Max. elevation/windage adjustment range (ft/100 yd):Â | Â 4.8 | |
| Objective filter thread:Â | Â M 39 x 0.75 | |
| Length, approx. (mm):Â | Â 301 | |
| Length, approx. (in):Â | Â 11.85 | |
| Weight, approx. (g):Â | Â 330 | |
| Weight, approx. (oz):Â | Â 11.6 | |
Features of Habicht Swarovski AV 3-9 x 36mm Rifle-Scopes w/ TDS Reticle:
- RETICLE

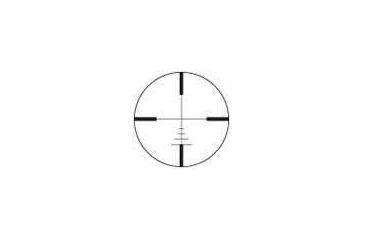

- Centered reticle in the 2nd image plane (ocular image plane): - For precise shooting with low target coverage, even at high magnification. - For clear recognition, even with small targets at long distances.
- Patented zero setting system for precision adjustment of the point of impact without tools.
- Quadratic adjustment area for full edge-to-edge ranging.
- USABILITY
- Slender eyepiece for compact mounting.
- 90 mm (3.5 in) eye relief to protect against recoils, particularly when shooting upwards.
- Magnification ring with sure grip: easy to use and read when in firing position.
- Dioptric correction of +/?2,5 diopters.
- Objective with connection thread for standard photo filter for enhancing contrast.
- ROBUSTNESS
- Totally dust- and waterproof, even without turret cap.
- Sturdy, light main tube with or without mounting rail.
Package Contents:
- Swarovski Habicht AV 3-9x36mm Rifle Scope - TDS Reticle 52038
In addition to Swarovski Habicht AV 3-9x36mm Rifle Scope - TDS Reticle 52038, make sure to check other Swarovski Rifle Scopes and other Swarovski products offered in our store.
