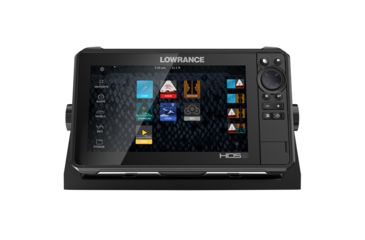

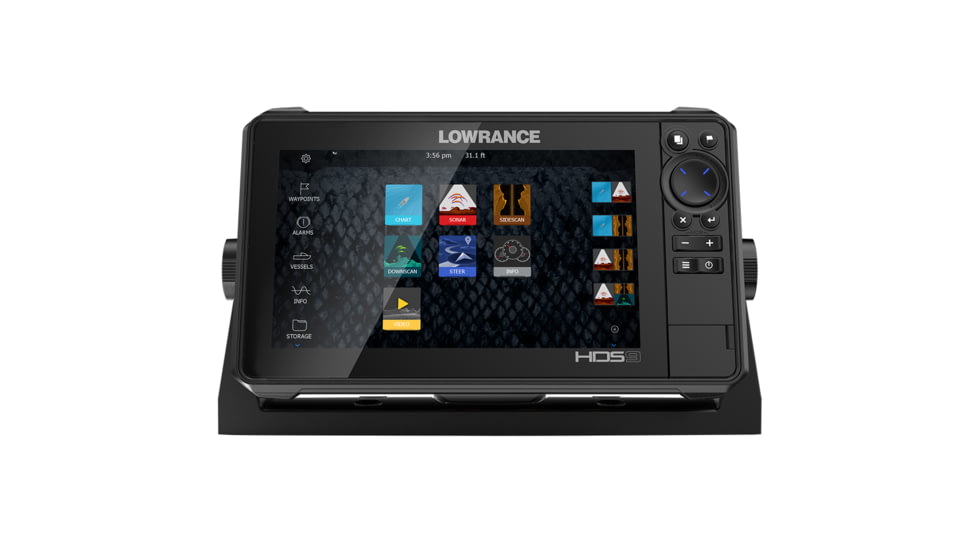

Lowrance HDS-9 LIVE No Transducer w/C-MAP Pro Chart

The Lowrance HDS-9 LIVE No Transducer w/C-MAP Pro Chart is here at Opticsforyou.com and as usual we offer unbelievable prices !

Purchase your new Lowrance HDS-9 LIVE No Transducer w/C-MAP Pro Chart from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

HDS-9 LIVE No Transducer with C-MAP Pro ChartYear after year more fishing tour pros use HDS than all other fishfinder brands combined. HDS LIVE 9 is will carry on that tradition behind premium performance and support for the best collection of innovative sonar

Features of Lowrance HDS-9 LIVE No Transducer w/C-MAP Pro Chart

• Active Imaging 3-in-1 (CHIRP/Side/Down) sonar ready
• Active Imaging 2-in-1 (Side/Down) sonar ready
• StructureScan 3D with Active Imaging enhancements
• LiveSight real-time sonar compatible
• Smartphone notifications
• High-performance dual-core processor
• C-MAP Genesis Live onscreen mapping
• FishReveal Smart Target View
• High-resolution 9-inch SolarMAX HD multi-touch screen with the widest range of viewing angles viewable even through polarized sunglasses
• Preloaded high-detail C-MAP US Enhanced charts with 1-foot contours on 4000 lakes
• C-MAP Easy Routing Navionics Autorouting capability
• Dual-Channel CHIRP dual sonar-range coverage from the same transducer
• Live Network Sonar cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers
• SiriusXM Marine Weather and Audio compatible
• Wireless and Bluetooth connectivity
• Heat Map feature allows anglers to see trends in water temperature changes to quickly target key fishing areas
• Enhanced Surface Clarity lets you see more fish targets near the surface
• Quick Access Control Bar provides onetouch access to system controls
• SmartSteer control for Xi5 Trolling Motor and Outboard Pilot
• Radar and SonicHub2 audio server connectivity
• NMEA 2000 engine support
• Optional mapping upgrades include C-MAP Navionics and more
• HDS LIVE Advantages:Best Screens: You will have an easier time viewing fish structure and bottom detail on bright and clear SolarMAX HD screens that offers clean and crisp views from any angle in direct sunlight even through polarized sunglasses.
• Easy and Efficient Interface: On-the-water adjustments will be quicker and easier with the refreshed HDS interface designed with a simpler feature layout to deliver next-level ease of use and efficiency.
• Active Imaging: See structure and cover with a new level of refined detail at a range unmatched by anyone else with new Lowrance Active Imaging. Active Imaging is available with 3-in-1 transducer (CHIRP SideScan and DownScan Imaging) and Active Imaging 2-in-1 transducer (SideScan and DownScan Imaging) options.
• View all Structure Imaging Side-by-Side: For the first time you can get a side-by-side view of all your structure imaging technology with the enhanced capabilities of HDS LIVE which supports simultaneous viewing of StructureScan 3D SideScan and DownScan Imaging panels.
• Most Advanced Fishfinder Technology: Simultaneously view CHIRP Sonar with Active Imaging 3D to get the best possible view of fish and structure below and to the sides of your boat.
• LiveSight: Get live views of fish movements across the bottom in and around cover and structure with new revolutionary LiveSight sonar. Capable of showing views beneath or in front of your boat LiveSight is at its best when trolling at very slow speeds or fishing from a single spot. HDS LIVE comes LiveSight ready so all you need to do is mount the LiveSight transducer and get after the fish.
• C-MAP Genesis LIVE: Create your own high-definition 1/2-foot contour maps in real time on your HDS LIVE screen with C-MAP Genesis Live.
• Smartphone Notifications: Keep your eyes on the fish and never miss an important text or call with smartphone notifications built into HDS LIVE. Turn off phone notifications for uninterrupted fishing or leave them on to receive popup notifications on the screen of your HDS LIVE display.
• FishReveal Smart Target View: Makes fish easier to see on DownScan Imaging by combining crystal-clear CHIRP sonar fish targets with superior high-resolution views of bottom detail structure and bait fish.
• High Performance Processor: Whether panning the chart tracking back through your sonar history or creating a Genesis LIVE map you will get responsive smooth operation with no lag from the dual-core processor at the heart of HDS LIVE. The high- performance processor can easily drive todays technology like Active Imaging 3D LiveSight sonar Genesis Live StructureMap Live Network sonar with power to
• New Modern Low-Profile Design: Enhance the look of your console with the new zero-edge glass design of HDS LIVE featuring the exceptional crispness vibrant images and extreme viewing angles of SolarMAX HD technology. Create clean sleek look at the console with an HDS LIVE flush mount.
• Live Network Sonar: Cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers. Get sonar views from bow-mounted transducer and the in-hull or transom-mounted transducer at the same time on the same display.
• Dual-Channel CHIRP: Deep water and trolling anglers will never miss a fish watching two Lowrance CHIRP frequencies at the same time via a dual-channel CHIRP split screen. Run a High CHIRP panel for the best target separation close to the bottom or in tight schools a Medium CHIRP panel to cover the widest area ideal for watching bait schools under a transducer in shallow water or go deeper with a Low CHIRP panel to cover more of the water column.
• C-MAP Easy Routing and Navionics Dock-to-Dock Autorouting: You will navigate faster and easier with automatic route planning. Menu activated the feature automatically plots the shortest and safest course based on a boats draft beam and height creating a route around a landmass shoals and other fixed navigational hazards. Requires C-MAP MAX-N+ charts Navionics+ or Navionics Platinum charts.
• C-MAP Navigation Palette: Enhances the readability of C-MAP charts especially near shore where the colors used for land docks anchorage areas water and channels are nicely differentiated and water contour lines are distinct. That makes it easy to tell where the boat is in relation to a channel navaid ledges and drop-offs or a point of land. The color scheme is much easier on the eye.
• Wireless Connectivity: Integrated wireless connectivity with the Lowrance LINK App and other onboard devices allows you to download software updates and custom C-MAP Genesis maps directly to the display and offers wireless smartphone viewing/tablet control of HDS Carbon displays.
• Network All Components: Plug-and-play compatibility with Lowrance performance modules including Broadband Radar SonicHub2 Marine Audio SiriusXM Marine Weather and audio Class B AIS and DSC VHF as well as industry-leading technologies like Mercury VesselView Link Bluetooth control of Power-Pole shallow water anchors equipped with the C-Monster Control System and the SmartSteer interface featuring control of MotorGuide Xi5 trolling motor and the Lowrance Outboard Pilot.
• Display: 9"
• Screen: High-Resolution SolarMAX HD multi-touch display
• Resolution: 800 x 480
• Backlighting: LED
• Power Output: RMS (PTP): Max 500W RMS
• Operating Voltage: 12 vDC (10-17 vDC min-max)
• Warranty: Two year
• Sonar :Depth Alarm: Yes
• Sonar Frequencies: 455/800 kHz (StructureScan 3D with Active Imaging Active Imaging 3-in-1) 40-60kHz 85-145kHz 130-210kHz (CHIRP) 50 kHz/83kHz/200kHz (Narrow Band) Max Side-Scanning Range: 600 feet per side
• Shallow Alarm: Yes
• Temperature Readings: Yes
• Transducer Type: Multiple selections Lowrance and Airmar
• Max Depth Per Sonar Operation:StructureScan 3D: SideScan - 600 ft/183m; DownScan - 300 ft/92m
• Active Imaging HD: 300 ft / 91 m @ 455/800 KHz
• CHIRP: 3500 ft / 1067 m (transducer dependent)
• Technical/EnvironmentalWaterproof Standard/Rating: IPx7
• DimensionsProduct Width: 11.02 in 280 mm
• Product Depth: 3.05 in 77 mm
• Product Height: 6.56 in 167 mm
• PowerPower Supply (Supply Voltage): 12 vDC (10-17 vDC min-max)
• GPS NavigationNavigation: Routes: 200
• Navigation: Waypoint Storage: 5000
• GPS Antenna Type: Internal 10Hz ultra-high-sensitivity WAAS + EGNOS + MSAS (optional external antenna) Plot Trails: Up to 100 trails - up to 10000 points / trail
• GPS Alarms: Yes
• Mapping: Preloaded C-MAP US Enhanced charts plus worldwide reference background map
• Mapping Options: C-MAP Insight Pro C-MAP Lake Insight HD C-MAP MAX-N+ Navionics+ Navionics Platinum+ Gold and HotMaps Premium Fishing Hotspots PRO and more.
• Networking ConnectorsNMEA Port: NMEA 0183 + NMEA 2000
• Power and Video: Red 10-pin power connector
• Channel 1 Transducer port: Black 9-pin connector for Broadband/CHIRP sonar StructureScan 3D with Active Imaging SideScan and DownScan Imaging LiveSight Forward and Down
• Channel 2 Transducer Port: Black 9-pin connector for Broadband/CHIRP sonar Active Imaging 3-in-1 / 2-in-1 TotalScan StructureScan HD with SideScan and DownScan Imaging

Package Contents:

• Lowrance HDS-9 LIVE No Transducer w/C-MAP Pro Chart
