Name: Arisaka Defense Inline Ring KeyMod Mounts
Brand: Arisaka Defense
SKU: 3KD-1F-IRMKM
Availability: Discontinued

Product Info for Arisaka Defense Inline Ring KeyMod Mounts

The Arisaka Defense Inline Ring KeyMod Mounts is here at Opticsforyou.com and as usual we offer competitive prices !

Purchase your new Arisaka Defense Inline Ring KeyMod Mounts from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

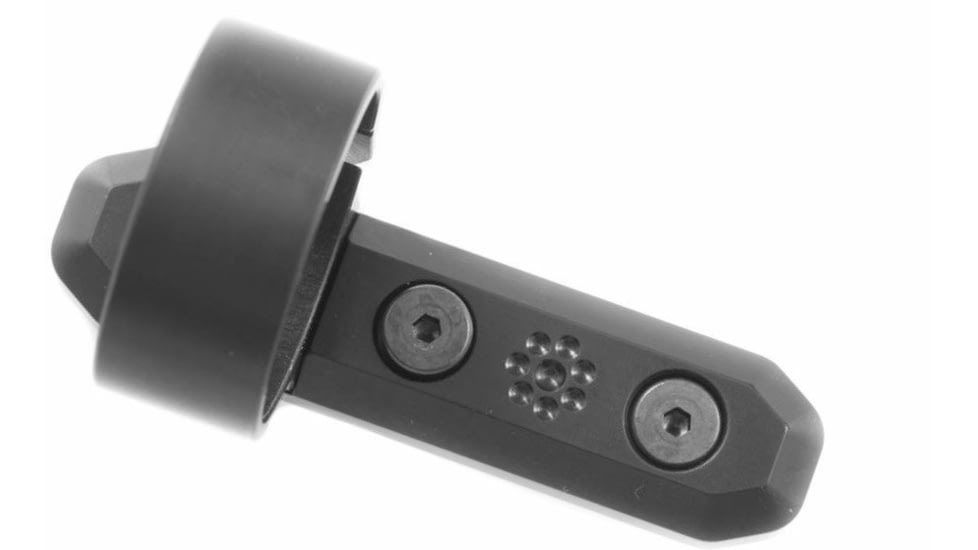

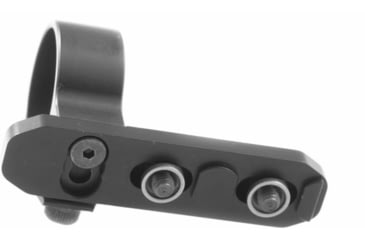

The Arisaka Inline Ring Mount is designed to securely attach 1in handheld lights to KeyMod handguards. The mount is especially useful on handguards that feature 45 degree angle mounting flats, such as the BCM KMR, KAC URX4, Mega MKM and MI Gen 3.

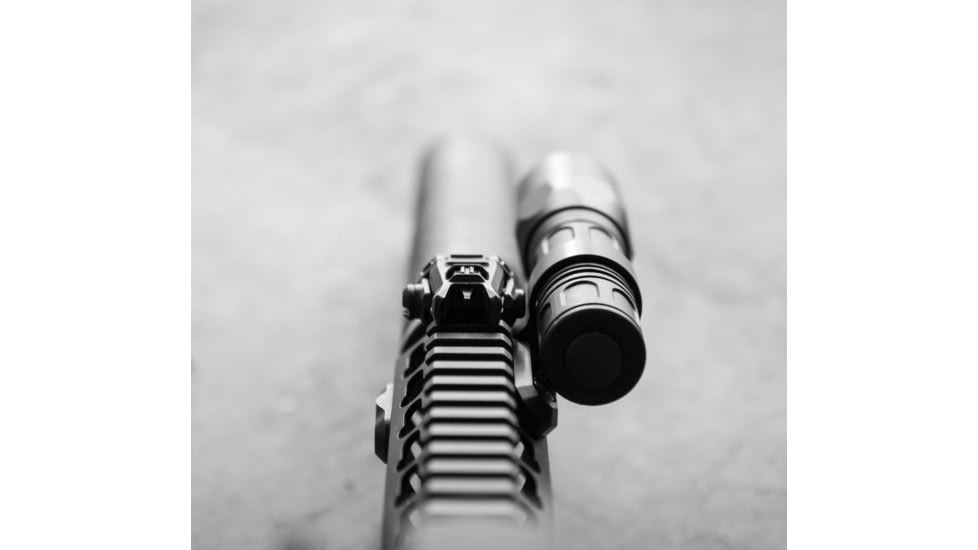

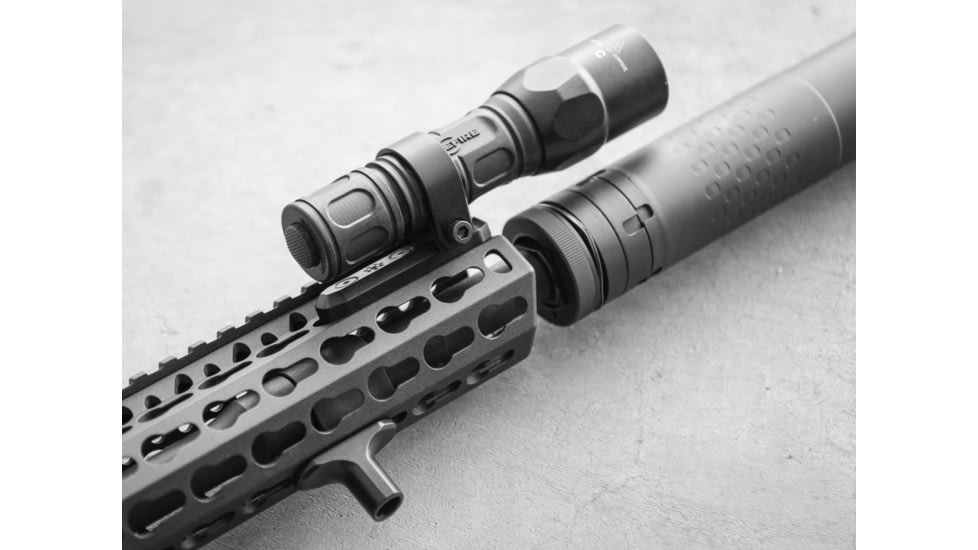

When used on a 45 degree angle mounting flat, the Inline Ring Mount allows the user to position the light closer or farther away from the top 12 o'clock rail to give clearance for front sights or other accessories. Three positions are provided, allowing an offset of 0.24in from center. The outer diameter of the handheld light sits 0.41in above the KeyMod or M-Lok mounting surface, making the entire unit very low profile.

Additionally, the mount can be reversed, allowing further flexibility for positioning your light (it is necessary to loosen the KeyMod nuts and spin them 180 degrees if you intend to use the mount in reverse).

Installation tip: The clamping screw for the ring should face away from the handguard when installed. It is necessary to remove and reinstall the ring in the correct orientation for whichever side of the handguard you are using it.

The mount is CNC machined from 6061-T6 aluminum and MIL-A-8625 Type III hard coat anodized. A 9/64in and 5/64in Allen wrench, plus T15 Torx driver are required for installation (not included). Made in specialized factories.
