Arisaka Defense Inline Scout KeyMod Mounts ISM-K

The Arisaka Defense Inline Scout KeyMod Mounts is here at Opticsforyou.com and as usual we offer fantastic discounts !

Purchase your new Arisaka Defense Inline Scout KeyMod Mounts from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

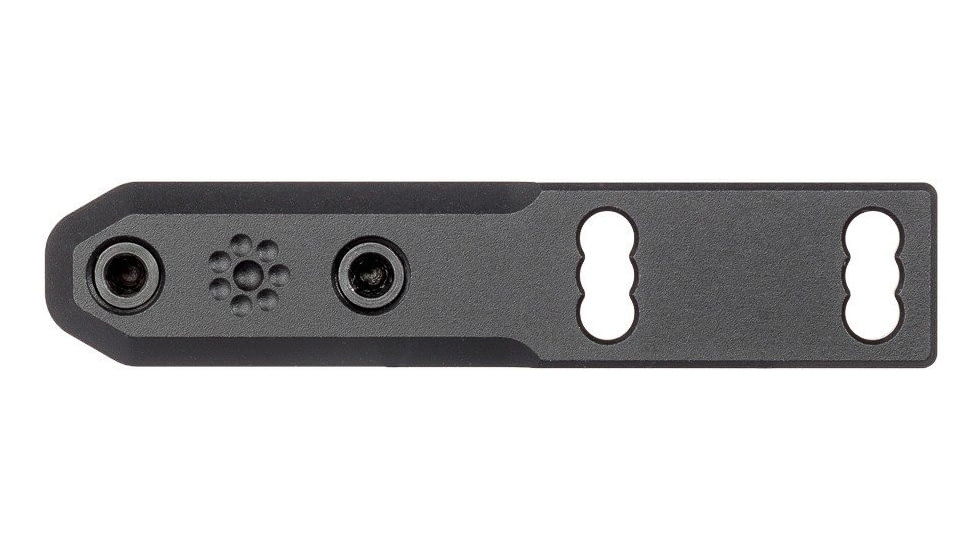

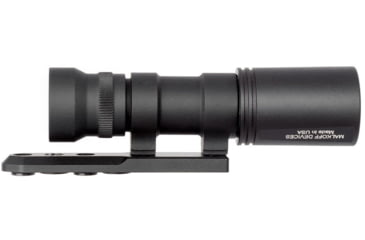

The Patented Arisaka Inline Scout Mount is designed specifically for the Surefire Scout Light M600 and M300 series weapon lights, the Arisaka 300, 600 and 18650 Series, Olight Odin, and the Streamlight Protac Rail Mount 1, 2 and HL-X. It replaces the stock Picatinny rail adapter with a low profile mount for KeyMod handguards. The mount is especially useful on handguards that feature 45 degree angle mounting flats, such as the Bravo Company KMR, Daniel Defense MFR, Knight's Armament URX 4, MI Gen 3 and Mega MKM. This new version is made of 7075 aluminum for superior strength and uses BCM's patented inverted KeyMod screws with twin recoil lugs for easier installation and a solid connection to your handguard.

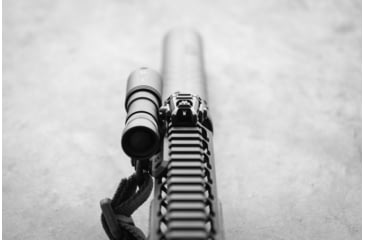

When used on a 45 degree angle mounting flat, the Inline Scout Mount allows the user to position the light closer or farther away from the top 12 o'clock rail to give clearance for front sights or other accessories. Three positions are provided, allowing an offset of 0.12" to either side of center. The base of the Surefire Scout Light sits only 0.2" above the mounting surface.

Specifications for Arisaka Defense Inline Scout KeyMod Mounts:

Features of Arisaka Defense Inline Scout KeyMod Mounts

• This mount is not intended for use in a cantilever fashion where it hangs off the end of the handguard. Doing so may result in mount failure in the event of a heavy impact to the light.
• Fit with front sights varies depending on mounting location on handguards with 45 degree flats:
• 1. Top left 45 degree flat: Most sights work, including MBUS Pro, Knight's Armament Micro, Troy folding, and Diamondhead. MBUS Gen II work if positioned to allow clearance for the release tab.
• 2. Top right 45 degree flat: Due to the asymmetrical body of the Surefire Scout Light, placement of the front sight and light are more critical in this setup. The smaller sights like MBUS Pro and Knight's Armament Micro work fine, but the Troy, Diamondhead, and MBUS Gen II will not be able to clear the main body where the screw holes reside for the stock picatinny adapter. This means one or the other will have to be moved forward/back to get appropriate clearance. Another option is to use an Arisaka 300 Series Light Body or 600 Series Light Body, which will allow plenty of clearance.
• Compatible with the Modlite PLH, PLHv2 and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), Olight Odin, CD REIN, and Arisaka 300, 600 and 18650 Series.

Package Contents:

• Arisaka Defense Inline Scout KeyMod Mounts
