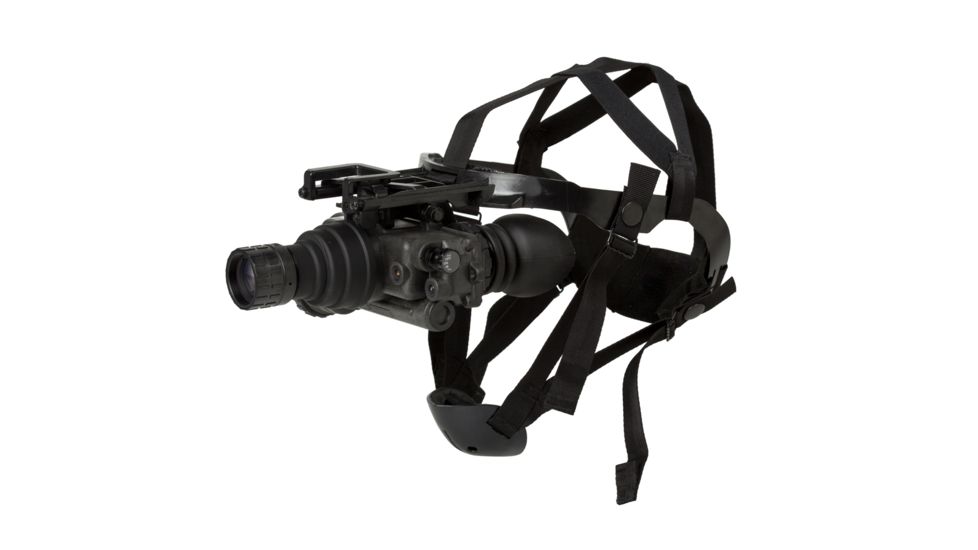

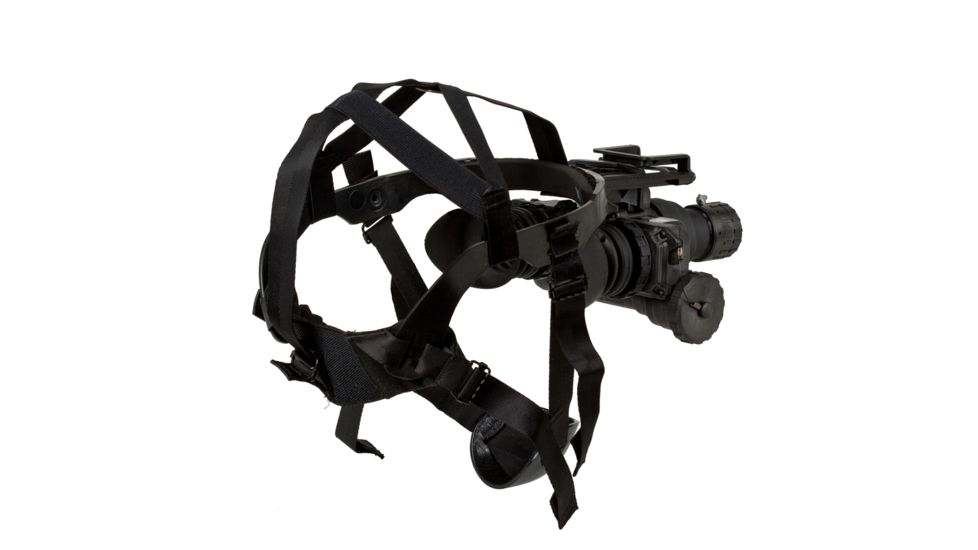

Sightmark PVS-7 64+DS NV Goggle
Tap Tap to Zoom
Product No Longer Available
Unfortunately Sightmark PVS-7 64+DS NV Goggle is not listed by OpticsForYou.You can also explore other items in the Night Vision Accessories yourself to try and find the perfect replacement for you!
Product Info for Sightmark PVS-7 64+DS NV Goggle
The Sightmark PVS-7 64+DS NV Goggle is here at Opticsforyou.com and as usual we offer fantastic deals !
Purchase your new Sightmark PVS-7 64+DS NV Goggle from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.
For efficient night time hunting, the Sightmark PVS-7 64+DS NV Goggle is engineered to meet the highest requirements and standards of the serious night vision user. These night vision goggles by the experts at SightMark offer a bi-ocular optical system that utilizes a single image intensification tube and both eyes of the operator that operates at a maximum of 30 hours on two AA batteries. The Sightmark PVS-7 64+DS NV Goggle w/ IR is equipped with an auto-gated that maintains the operator's visibility of their target by adapting the image intensifier tube to dynamic lighting conditions such as in urban environments. Sightmark Night Vision Goggles also feature a low battery/IR indicator that lets the operator know when the battery is low or the IR illuminator is activated. The Sightmark PVS-7 64+DS Waterproof NV Monocular comes with a green, military soft case with shoulder strap for added protection from outside elements.
Make your Mark.
Specifications for Sightmark PVS-7 64+DS Waterproof NV Goggles:
| Generation: | 3 |
| Tube Type: | ITT F98105SLG Pinnacle |
| Useful photocathode diameter, mm: | 18 |
| Photocathode type: | GaAs |
| Integral photocathode sensitivity, μm/lm, minimum value: | 1350 |
| Signal to noise ratio, value, not less than/ typical value: | 16.2/21 |
| Resolution, lines per mm: | 64 |
| Gate Type: | Auto-gated |
| Film Type: | Thin-filmed |
| FOM: | Determined by tube spec |
| Halo: | Determined by tube spec |
| Magnification, x: | 1 |
| Objective Lens diameter, mm: | 24 |
| F- number: | F/1.2 |
| Field of view, °: | 40 |
| Min. focusing distance, in: | 8 to Infinity |
| Min. focusing distance, m: | .2 to Infinity |
| Interpupillary adjustment, mm: | 55 to 71 |
| Diopter adjustment, dptr.: | +2, -6 |
| Power supply, V: | 3 |
| Battery Type: | 2xAA |
| Battery life (without IR), hour: | 30 |
| ens Material: | Glass |
| Body Material: | Glass-filled Nylon Composite |
| Operating temp, °C: | -51 to 52 |
| Nitrogen purged: | No |
| Waterproof: | Yes |
| Dimensions, in: | 6.375x3x6 |
| Weight (with batteries), oz: | 24 |
Features of Sightmark PVS-7 64+DS NV Monocular w/ IR:
- Auto-Gated, Thin film ITT Pinnacle tube
- Variable Gain Control
- Automatic Brightness Control
- Able to Withstand Heavy Recoil
- Extremely Versatile
- Single AA Battery Operation
- Integrated IR Illuminator
- Low Battery Indicator
- IR Illuminator on Indicator
- Lightweight and Waterproof
Package Contents:
- Sightmark PVS-7 64+DS NV Goggles
- Data Sheet
- Head Mount Assembly
- Brow Pad (small, medium, large)
- Eye Cup
- Soft Carrying Case w/ Shoulder Strap
- Lens Paper
- Day Light Filter
- Operator's Manual
- Batteries
- Demist Shield
