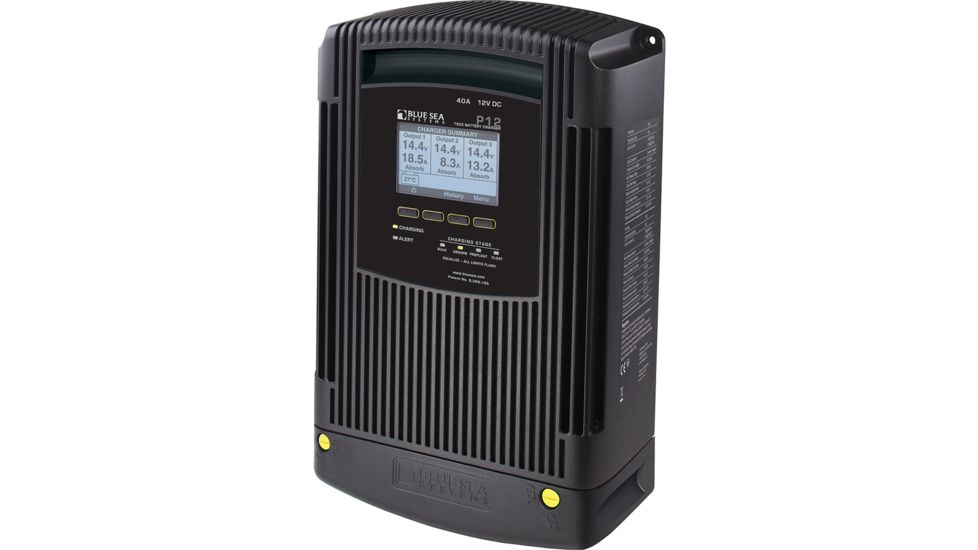

Blue Sea Systems 7532 P12 Gen2 Battery Charger - 40A - 3-Bank 67227
Tap Tap to Zoom
Product No Longer Available
Unfortunately Blue Sea Systems 7532 P12 Gen2 Battery Charger is not listed by OpticsForYou.You can also explore other items in the Battery Chargers yourself to try and find the perfect replacement for you!
Product Info for Blue Sea Systems 7532 P12 Gen2 Battery Charger
The Blue Sea Systems 7532 P12 Gen2 Battery Charger is here at Opticsforyou.com and as usual we offer unbelievable prices and discounts !
Purchase your new Blue Sea Systems 7532 P12 Gen2 Battery Charger from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.
P12 Gen2 Battery Charger - 40A - 3-Bank
Features of Blue Sea Systems 7532 P12 Gen2 Battery Charger
- Four stage three output dry mount design for use in harsh environments.
- Rugged finned aluminum case
- PreFloat stage prevents over charging
- Power factor corrected for efficient use of AC
- Intuitive diagnostic screens
- User defined charge profiles and customizable settings
- Provides charging for up to three battery banks
- Large bright display
- Multi-lanGauge: English French German Italian Spanish
- Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
- Battery Temperature Compensation - adjusts charge voltage based on battery temperature
- AC over and under voltage shut down and automatic restart
- Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
- DC over voltage and reverse polarity protection
- Surge and short circuit protection
- :Total Output Current: 40A
- Input AC Current: 7.5A @ 100V AC / 3.75A @ 200V AC
- Maximum Output Voltage: 16V DC
- Nominal Voltage: 12V DC
- Ignition Protected: Yes
- Number of Outputs: 1 negative / 3 positive
- Universal AC Input Voltage: 90-265V AC
- AC Input Frequency: 45-65Hz
- Output Voltage Accuracy: 0.05V
- Typical Float Voltage:13.5V DC
- Minimum Operating Temperature: -20 C
- Maximum Operating Temperature: 70 C
- Minimum Storage Temperature: -30 C
- Maximum Storage Temperature: 80 C
- Battery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)
- Recommended for Battery Bank Sizes: 440Ah Maximum Example: 4 x Group 31 / 60Ah Minimum Example: 2 x Group 31
- Warranty: 5 Year
- Height: 13.03" (330.96 mm)
- Width: 8.46" (214.88 mm)
- Depth: 3.66" (92.96 mm)
- Weight: 13.00lb (5.9 kg)
Package Contents:
- Blue Sea Systems 7532 P12 Gen2 Battery Charger
