Product Info for Samlex America 40A Battery Charger
The Samlex America 40A Battery Charger is here at Opticsforyou.com and as usual we offer unbelievable prices 19% Off!![]()
Purchase your new Samlex America 40A Battery Charger from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

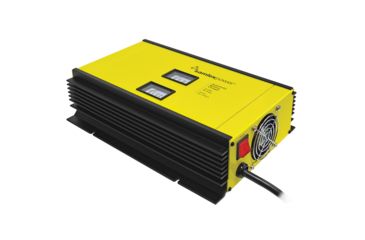

40A Battery Charger - 24V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp SensorThis advanced fully automatic three-stage 40 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V 60 Hz or 230 V 50 Hz AC source. By means of a DIP switch setting conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply.
Specifications for Samlex America 40A Battery Charger:
| Manufacturer: | Samlex America |
| Color: | Black |
| Amperage: | 40 amps |
| Voltage: | 24 volts |
Features of Samlex America 40A Battery Charger
- Switch mode technology for high efficiency lightweight and quiet operation
- Automatic operation for ALL Lead Acid Batteries Flooded AGM or Gel Cell
- Can charge 2 banks of batteries simultaneously no isolator necessary
- Can be used as a power supply or DC UPS when used in conjunction with a battery
- User Configurable AC Input voltage 120 or 230 VAC 50 / 60 Hz
- User Selectable ( by DIP Switch) for 2 or 3 stage rapid and safe charging of standalone and loaded Lead Acid Batteries
- Half Power Mode reduces maximum charging current to half the rated capacity allows for safe charging of lower capacity batteries
- Voltmeter and Ammeter for monitoring
- Fan cooled based on output current
- Protections: Short circuit overload reverse battery connection and over temperature
- Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively
- Input: 120 VAC or 230 VAC
- Output: 24 VDC
- Amps: 40
- Remote Control: 900-RC
- Weight: 9 (lbs)
- Weight: 4.1 (kg)
- Dimensions: 15 x 9.61 x 3.82 (in)
- Dimensions: 381 x 244 x 97 (mm)
- Safety: Listed to UL Standard UL-1564 EMI Compliant to FCC Part 15(B) Class B
- Warranty: 2 Year Limited
- Applications:Automotive
- Recreational vehicles
- Marine
- Communications sites
- Battery back-up systems
Package Contents:
- Samlex America 40A Battery Charger
