Reticle: Illuminated Red TA11F Chevron Illumination Color: Red Finish: Matte Color: Black Weight: 14 ozAdjustment Click Value: 1/4 MOAAdjustment Type: MOA Illumination Type: Fiber Optics/Tritium Included Accessories: Flat Top Adapter Condition: New

Code: TJ-RS-ACOG-TA11F-EE

MPN: TA11F

UPC: 719307301306

Free Two Day Shipping
List: $1,729.00Save 25%
$1,289.00

Buy Together and Save

Some discounts may not apply to bundled purchases

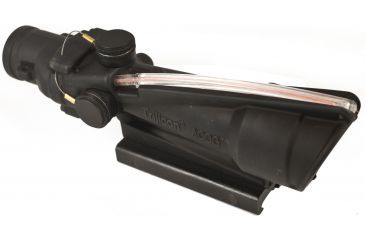

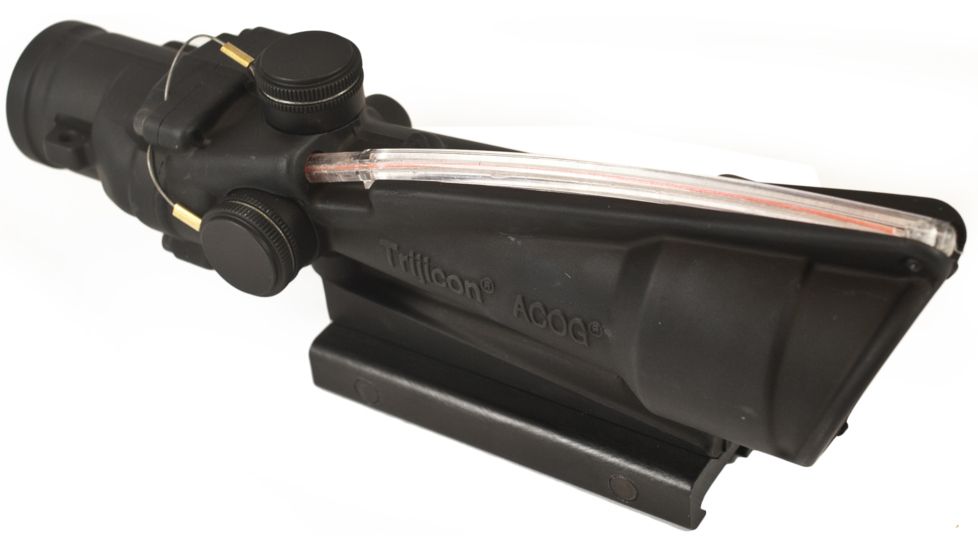

Product Info for Trijicon ACOG 3.5x35mm Rifle Scope with Chevron BAC Reticle and Mount

The Trijicon ACOG 3.5x35mm Rifle Scope with Chevron BAC Reticle and Mount is here at Opticsforyou.com and as usual we offer fantastic discounts 25% Off!image

Purchase your new Trijicon ACOG 3.5x35mm Rifle Scope with Chevron BAC Reticle and Mount from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

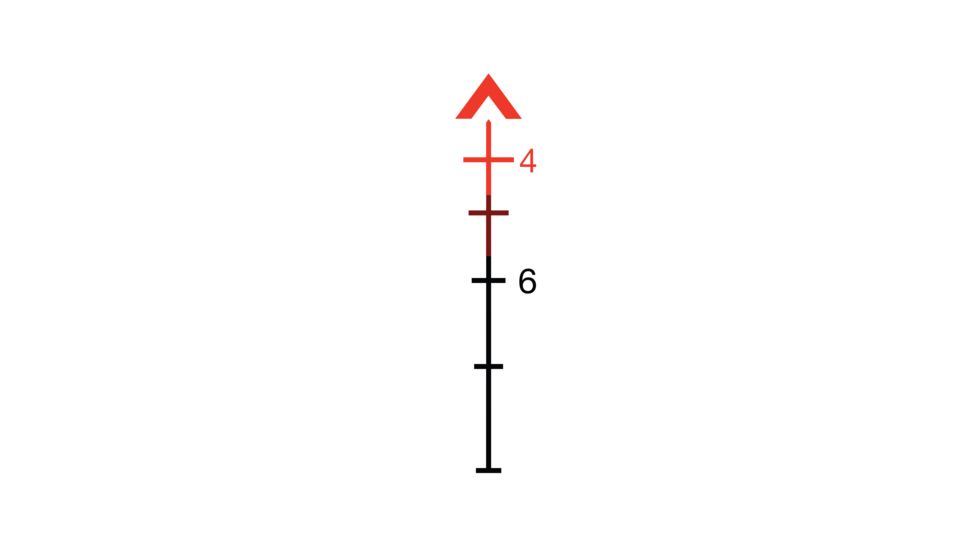

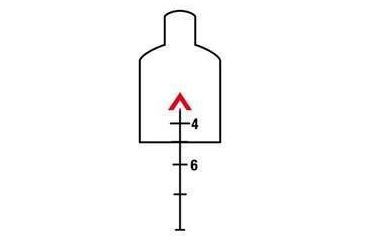

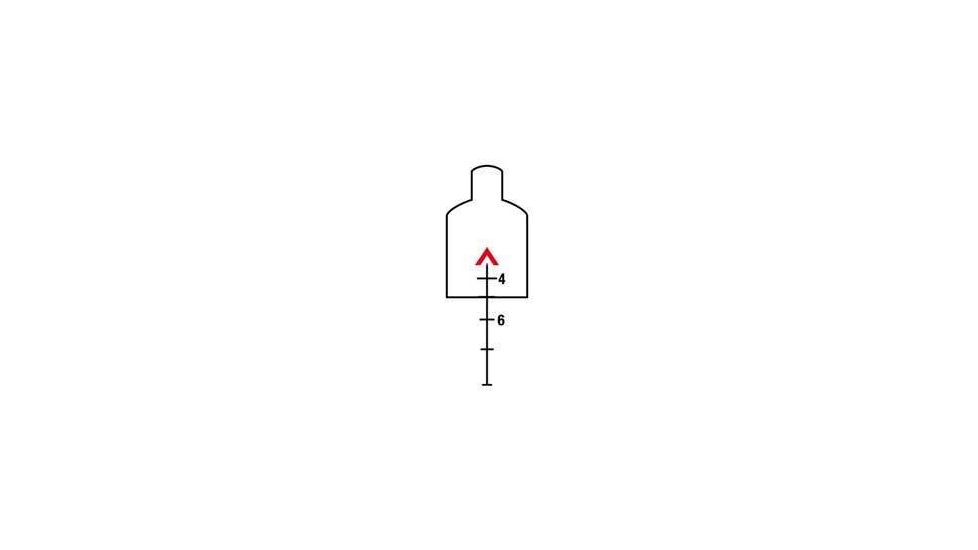

Trijicon TA11F ACOG 3.5x35 Scope w/ Chevron BAC Reticle KIT2 is a highly effective medium range weapon sight that comes with all the tools you need to successfully attach it to a weapon for stellar firearm accuracy. This rifle scope pack includes the Trijicon TA51 Flat Top Adapter. The ranging reticle of these Trijicon rifle scopes is calibrated for 5.56mm (.223 cal) flat-top rifles out to 800 meters. The chevron BAC reticle of these rifle scopes is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA, which is 19" at 300 meters. This allows range estimation for silhouette targets. Trijicon TA11F 3.5x35mm ACOG .223 BAC Rifle Scope hits fast in any light. Trijicon has built these scopes to be internally-adjustable, compact telescopic sights with tritium illuminated, dual illuminated .223 chevron BAC reticles for use in low light or at night. Designed for use with the M16 family, every feature of its mechanical and optical design was chosen for a single purpose: to provide increased hit potential in all lighting conditions, without failure-prone batteries. For a highly accurate ACOG scope with a custom red chevron BAC reticle, choose the Trijicon T-A11F 3.5x35mm ACOG .223 Chevron Rifle Scope.

Trijicon ACOG Gunsight Info

Specifications for Trijicon 3.5x35mm ACOG Sight w/ Mount:

Magnification: 3.5x
Objective Lens: 35mm
Length: 8"
Weight: 14 oz (without mount)
Illumination: Fiber optics and tritium
Reticle: .223 BAC Chevron
Calibration: .223
Reticle Color: Red
Eye Relief: 2.39"
Exit Pupil: 10mm
Field of View Angle: 5°
Field of View: 28.9' at 100 yards
Adjustment Rate: 3 clicks/in
Material: Forged aluminum

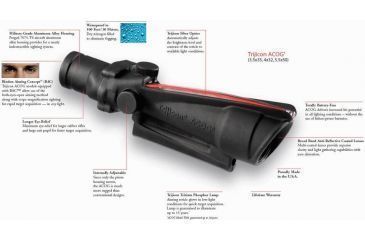

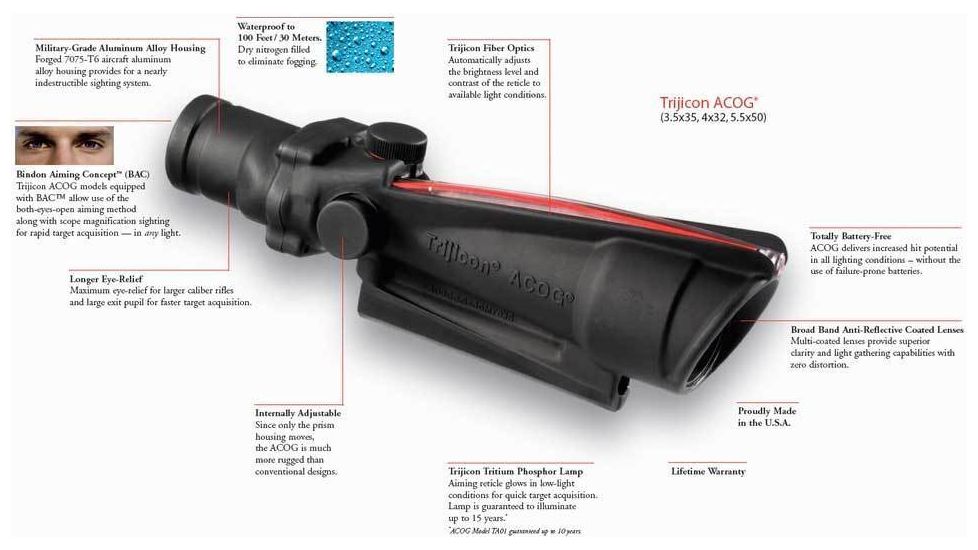

Features of Trijicon ACOG 3.5x35mm Rifle Scope with Chevron BAC Reticle and Mount:

  • Always On, Always Ready: Most ACOG models are battery-free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.
  • Take Control: Several ACOG models are designed with a user-adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.
  • Rugged, Reliable Housing Design: Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
  • "Both Eyes Open" Design: "Both eyes open" shooting using Trijicon's Bindon Aiming Concept (BAC) feature allows for improved situational awareness.
  • Outstanding Clarity: The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
  • Exact Target Distances & Holds: Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
  • Combat Proven: No other magnified optic has been used more in combat than the ACOG.
  • Shock-Resistant: Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
  • Waterproof: Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.

Package Contents:

  • Trijicon ACOG 3.5x35mm Rifle Scope with Chevron BAC Reticle and Mount
  • Thumbscrew Flattop Adapter (TA51)
  • 3.5x35 Scopecoat (TA63)
  • LENSPEN (TA56)
  • Lanyard Assembly for Adjuster Caps (TA71E)
  • Trijicon Logo Sticker (PR15)
  • ACOG BAC Manual
  • Warranty Card
