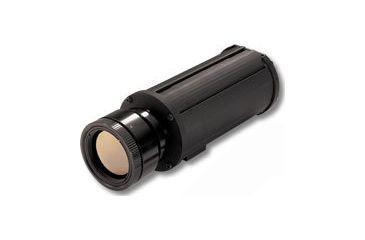

Thermal Eye TSC4500 IR Camera
Tap Tap to Zoom
Product No Longer Available
Unfortunately Thermal Eye TSC4500 IR Camera is not listed by OpticsForYou.
Product Info for Thermal Eye TSC4500 IR Camera
The Thermal Eye TSC4500 IR Camera is here at Opticsforyou.com and as usual we offer fantastic deals !
Purchase your new Thermal Eye TSC4500 IR Camera from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.
Thermal Eye TSC4500 IR Camera is a thermal security camera ( TSC ) capable of long-range security surveillance. The Thermal-Eye TSC4500 requires no lighting or IR illumination and has a detection range of up to 3,300 ft (1,000 m). The TSC4500 by Thermal Eye is an extremely strong thermal image camera and features a weather proof rating of IP67. The Thermal Eye TSC 4500 Camera is a high grade thermal imager equipped with an Amorphous Silicon Microbolometer core providing 320 x 240 resolution for impressive optical performance.
The Thermal Security Camera TSC4500 combines advanced image processing power and a low noise level to provide a clear visual that allows for easy target identification from further distances. Thermal Eye thermal imaging devices deliver exceptional thermal imaging performance and quality thermal cameras that are suitable for tactical situations and high grade security applications.
The following models of Thermal Eye TSC4500 Camera are available in the following field of view / frame rate combinations:
- 4000143-0009: Thermal Eye TSC4500 (Fixed Base), IR Camera With 50 Deg HFOV (10mm) Atherm Lens, NTSC, RS-232, 9600 Baud, 30 Hz
- Wide-angle security surveillance for gated entrances and equipment storage
- 4000143-0010: Thermal Eye TSC4500 (Fixed Base), IR Camera With 50 Deg HFOV (10mm) Atherm Lens, NTSC, RS-232, 9600 Baud, 9 Hz
- Wide-angle security surveillance for gated entrances and equipment storage
- 4000143-0001: Thermal Eye TSC4500 (Fixed Base), IR Camera With 25 Deg HFOV (22mm) Atherm Lens, NTSC, RS-232, 9600 Baud, 30 Hz
- Medium-range facility surveillance for power plants and public utility facilities
- 4000143-0005: Thermal Eye TSC4500 (Fixed Base), IR Camera With 25 Deg HFOV (22mm) Atherm Lens, NTSC, RS-232, 9600 Baud, 9 Hz
- Medium-range facility surveillance for power plants and public utility facilities
- 4000143-0002: Thermal Eye TSC4500 (Fixed Base), IR Camera With 12 Deg HFOV (46mm) Atherm Lens, NTSC, RS-232, 9600 Baud, 30 Hz
- Long-range perimeter surveillance for borders, harbors, waterfronts and airfields
- 4000143-0006: Thermal Eye TSC4500 (Fixed Base), IR Camera With 12 Deg HFOV (46mm) Atherm Lens, NTSC, RS-232, 9600 Baud, 9 Hz
- Long-range perimeter surveillance for borders, harbors, waterfronts and airfields
Specifications for Thermal Eye TSC-4500 IR Camera:
| Focal Plane Array | ||
|---|---|---|
| Material & Structure: | Amorphous Silicon Microbolometer (320 x 240 pixel array) | |
| Spectral Response: | 7-14um (filter bandwidth) | |
| Thermal Sensitivity (Detector): | <50mK | |
| Refresh Rate: | Real-time 30Hz (9Hz available) | |
| Thermal Imaging Performance | ||
| Start-up Time: | ~4 seconds | |
| Contrast/Brightness: | Advanced Image Processing | |
| Optics | ||
| Field of View (H x V): | Wide Angle (50° x 38°) / Medium Angle (25° x 18°) / Narrow Range (12° x 9°) | |
| Range to Detect Human Activity: | Up to 775ft (235m) / Up to 1465ft (445m) / Up to 3300ft (1000m) | |
| f/#: | 1.0 Athermalized / 1.2 Athermalized / 1.2 Athermalized | |
| Focus Method: | Manual adjust with passive athermalized lens | |
| Video | ||
| Analog Output: | NTSC (color); Real-time 30Hz frame rate / PAL (color); Real-time 25Hz frame rate | |
| Output resolution: | NTSC = 640 x 480 pixels; PAL = 768 x 574 pixels | |
| Customizable Absolute Color: | 3 OEM selectable color points are mapped to selectable absolute temperatures | |
| Power | ||
| Input Voltage: | 9 to 32 VDC | |
| Input Power: | ~2.0W for 9 to 32 VDC input at 25° ambient | |
| Interface/Controls | ||
| Camera Setup: | RS-232 and Advanced GUI Control | |
| Environmental Characteristics | ||
| Operating Temperature (Ambient Air Temp): | -20°C to 70°C (-4°F to 158°F) | |
| Storage Temperature: | -40°C to 105°C (-40°F to 221°F) | |
| EMC Compliance: | FCC Part 15 & CE Mark | |
| Weatherproofing: | Watertight to IP67 | |
| Physical | ||
| Size: | 8.3"L x 2.5"W x 2.7"H (21.1cm x 6.6cm x 6.9cm) | |
| Color: | Black Extruded Anodized Aluminum | |
| Weight: | 20oz. (567g) | |
| Mounting Bracket: | 1/4" - 20 UNC - 2B Universal top or bottom mount | |
Features of Thermal Eye Infrared Camera TSC4500:
- Uses proven Amorphous Silicon Microbolometer detector technology and provides 320 x 240 resolution
- Watertight to IP67 rating
- Select optics provide detection of human activity at up to 3,300 feet
- Equipped with a serial data port for camera diagnostics
- Fully RoHS-compliant for improved exportability and available with 9Hz frame rate
- Three field of view (FOV) alternatives provide user's desired detection range
- No lighting or infrared illumination required to view image
- Full visibility when smoke, fog or haze is present
- Rugged, dependable and ideal for long-range security surveillance
- Compatible with intelligent video analytics software
- Fits in Pelco enclosures 2500, 3700 and 4700 series
- "Plug and Play Ready" for easy system integration
- 4500AS a-Si core offers 320x240 resolution
- Available with 30Hz or 9Hz refresh rate
- Available optics include 25° and 12° HFOV
- Manual adjustment with passive athermalized lens
- Analog output with NTSC or PAL
Package Contents:
- Thermal Eye TSC4500 IR Camera
