Si-Tex SP-110C Color System w/9 Axis Compass, Virtual Feedback & No Drive Unit

The Si-Tex SP-110C Color System w/9 Axis Compass, Virtual Feedback & No Drive Unit is here at Opticsforyou.com and as usual we offer great discounts !

Purchase your new Si-Tex SP-110C Color System w/9 Axis Compass, Virtual Feedback & No Drive Unit from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

SP-110C Color System with 9 Axis Compass Virtual Feedback & No Drive Unit

Features of Si-Tex SP-110C Color System w/9 Axis Compass, Virtual Feedback & No Drive Unit

• The SI-TEX SP-110C-VF1 is a Hydraulic Autopilot kit for hydraulic steering systems up to 12 cu. In.
• Does not require a separate junction box everything simply connects to the rear of the control head
• This system is ideal for small outboard boats with Hydraulic steering cylinders of 12 cu. In. or less
• This system does NOT include the reversing hydraulic pump and is intended for install on an existing Hyd. pump
• The system is a Virtual Rudder feedback system that does not require the installation of a separate RFB unit
• Control head displays Compass heading & Selected Heading

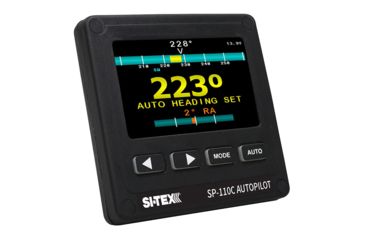

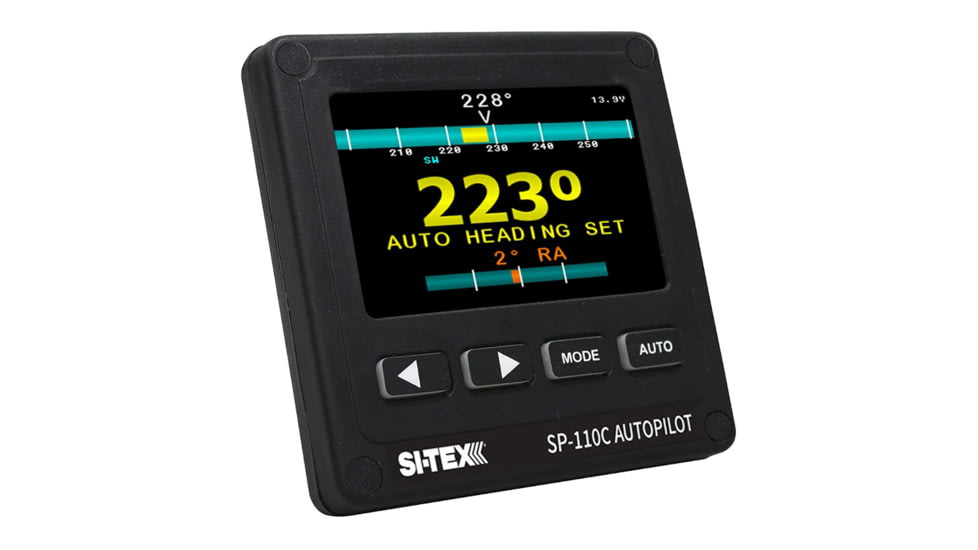

• Compact 4.1 x 4.1 Splash proof Control head with large easy to read Color LCD Display
• Very easy to select your desired headings operate and setup via a new easy to use menu system
• High Quality Rate Gyro Compass provides the autopilot with excellent steering response
• Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to enhance performance
• NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
• NMEA-0183 Output of Compass heading at 10kHz for interface to MFDs with Chart/Radar Overlay
• Autopilot Steering Modes:
• Manual (Power Steer)
• Auto (Pilot maintains selected Magnetic course)
• GPS (Steers to Waypoint or Routes when Interfaced with GPS)
• Wind (Steers to wind when interfaced to wind sensor for Sailboat installations)
• Off Course Alarm
• Waterproof: IPX6
• Control Head Dimensions: 110 mm L x 110 mm W
• Voltage supply VOLTAGE: 12/24 Volts DC
• Display LCD Color
• Constant Compass Heading Displays
• Current consumption: 0.5 amps at 12VDC in standby mode
• Maximum Drive Output Current 15 Amps (do not use on pumps over 12 cu. In. capacity)
• Operating temperature: -10C to +55C
• Data Connections: NMEA-0183 GPS Input NMEA-0183 10kHz Compass heading Output
• Course Detection Package Includes:SI-TEX SP-110C Color LCD Autopilot Control Head
• Control Head Sun cover
• EC-110 Electronic Rate Gyro Compass
• Product manual
• Mounting Screws

Package Contents:

• Si-Tex SP-110C Color System w/9 Axis Compass, Virtual Feedback & No Drive Unit
