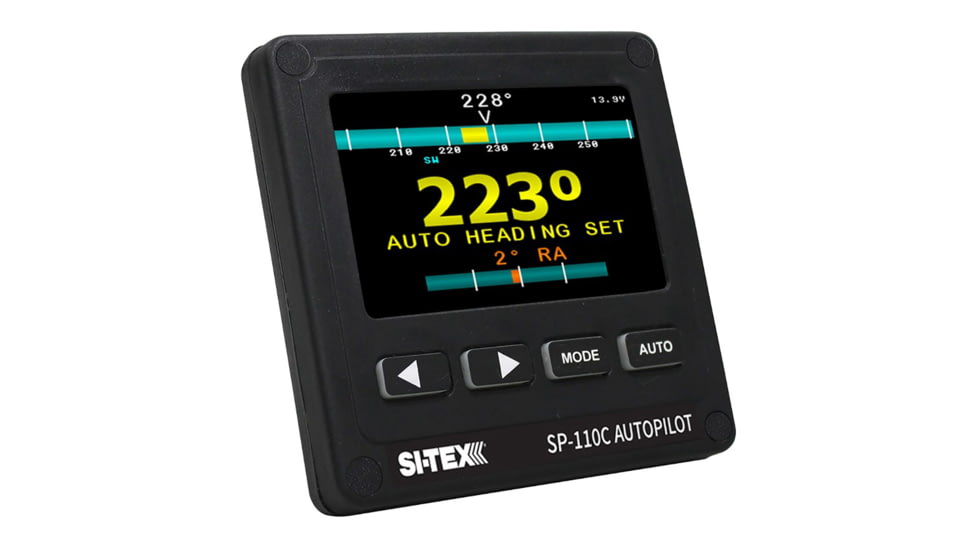

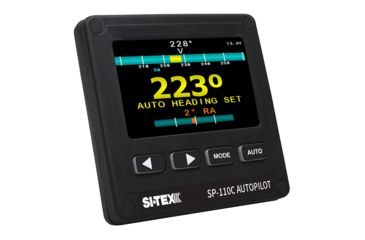

Si-Tex SP-110C Color System w/9 Axis Compass, Rudder Feedback & "Type S" Dash Drive

The Si-Tex SP-110C Color System w/9 Axis Compass, Rudder Feedback & "Type S" Dash Drive is here at Opticsforyou.com and as usual we offer fantastic discounts !

Purchase your new Si-Tex SP-110C Color System w/9 Axis Compass, Rudder Feedback & "Type S" Dash Drive from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

SP-110C Color System with 9 Axis Compass Rudder Feedback & "Type S" Dash Drive

Features of Si-Tex SP-110C Color System w/9 Axis Compass, Rudder Feedback & "Type S" Dash Drive

• The SI-TEX SP-110C-RF3 is a complete Autopilot-in-a-Box kit that is ready to install on Boats with Cable Steering Systems. No need to convert your cable steering to expensive hydraulic steering
• Applications include any type of cable steered boats using Teleflex-Morse rotary steering cables. Power assisted or Manual
• Replaces your original cable helm with a heavy-duty helm unit with the drive motor and rudder feedback built-in
• The entire installation is completed at the helm area with no need to run wires to the stern saving time and aggravation.
• Does not require a separate junction box everything simply connects to the rear of the control head
• This system is ideal for small boats used for downrigger trolling in the Great Lakes.
• Control head displays Compass heading Selected Heading and Rudder Angle information simultaneously
• Compact 4.1 x 4.1 Splash proof Control head with large easy to read Color LCD Display
• Very easy to select your desired headings operate and setup via a new easy to use menu system
• High Quality Rate Gyro Compass
• Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to enhance performance
• NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
• NMEA-0183 Output of Compass heading at 10kHz for interface to MFDs with Chart/Radar Overlay
• Autopilot Steering Modes:
• Manual (Power Steer)
• Auto (Pilot maintains selected Magnetic course)
• GPS (Steers to Waypoint or Routes when Interfaced with GPS)
• Wind (Steers to wind when interfaced to wind sensor for Sailboat installations)
• Off Course Alarm
• Waterproof: IPX6
• Control Head Dimensions: 110 mm L x 110 mm W
• Voltage supply VOLTAGE: 12/24 Volts DC
• Display LCD Color
• Current consumption: 0.5 amps at 12VDC in standby mode
• Maximum Drive Output Current 15 Amps
• Operating temperature: -10C to +55C
• Data Connections: NMEA-0183 GPS Input NMEA-0183 10kHz Compass heading Output
• Course Detection Package Includes:SI-TEX SP-110C Color LCD Autopilot Control Head
• Control Head Sun cover
• EC-110 Electronic Rate Gyro Compass
• OCTSIMDMSRW Straight Shaft Cable Steering Drive Unit w/ Built-in Rudder Feedback Sensor
• 90 Degree Bezel Kit and Cable adapters
• CAB47USRFU Rudder Feedback/NMEA-0183 Connection Box
• Product manual
• Mounting Screws

Package Contents:

• Si-Tex SP-110C Color System w/9 Axis Compass, Rudder Feedback & "Type S" Dash Drive
