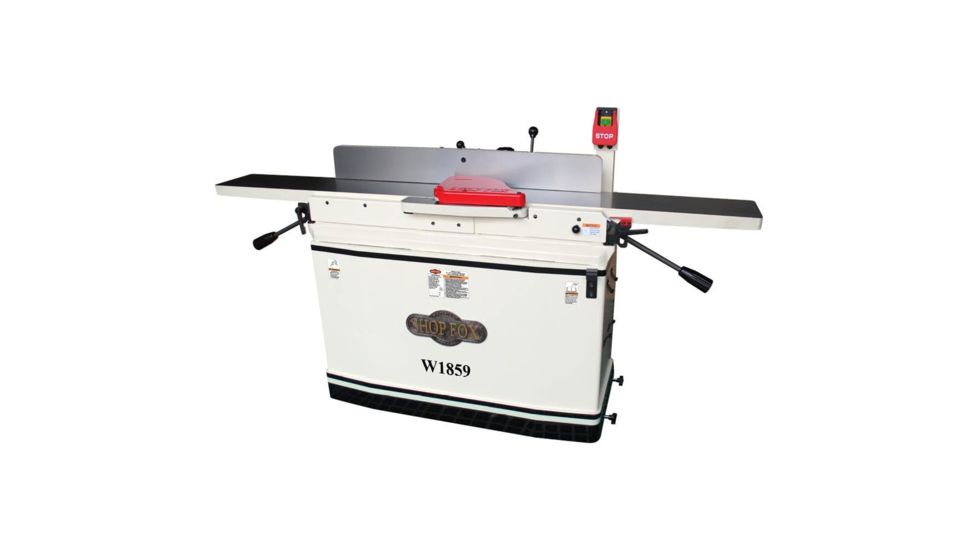

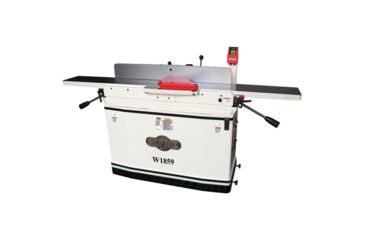

Shop Fox Parallelogram Jointer with Mobile Base W1859

The Shop Fox Parallelogram Jointer with Mobile Base is here at Opticsforyou.com and as usual we offer competitive prices !

Purchase your new Shop Fox Parallelogram Jointer with Mobile Base from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

This 8" Parallelogram Jointers feature extra-long infeed and outfeed tables that can be adjusted transversely and longitudinally to each other for ultra-precision face flattening and edge jointing. Table levers with positive table locks provide quick and precise height adjustments, and the pedestal mounted switch is conveniently located for easy on and easy off. This version features a straight knife cutterhead

Features of Shop Fox Parallelogram Jointer with Mobile Base:

• Motor: 3 HP
• 230V
• single-phase
• Total table size: 9" x 76"
• Fence size: 4-5/8" x 38"
• Maximum depth of cut: 1/8"
• Rabbeting capacity: 1/2"
• Cutterhead speed: 5500 RPM
• Cutterhead diameter: 3-1/16
• Cuts per minute: 22,000
• Cutterhead knives: 4
• Lever-adjusted table height with depth gauge
• Center-mounted fence with rack and pinion adjustment
• Built-in mobile base
• Precision-ground cast-iron tables
• Extra-long 40" infeed table
• Powder-coated finish
• 4" dust port with built-in dust chute
• Parallelogram table design
• Power transfer: Poly V-belt
• Switch: magnetic push-button switch with large off paddle for safety
• Fence system: positive stops at +/- 45 degrees and 90 degrees
• Approximate shipping weight: 298 lbs

Package Contents:

• Shop Fox Parallelogram Jointer with Mobile Base
