Product Discontinued by Manufacturer
Nikon Instruments Eclipse E200-LED Biological Microscope has been discontinued by Nikon Instruments and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Microscopes yourself to try and find the perfect replacement for you!
Product Info for Nikon Instruments Eclipse E200-LED Biological Microscope
The Nikon Instruments Eclipse E200-LED Biological Microscope is here at Opticsforyou.com and as usual we offer great prices and discounts !
Purchase your new Nikon Instruments Eclipse E200-LED Biological Microscope from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

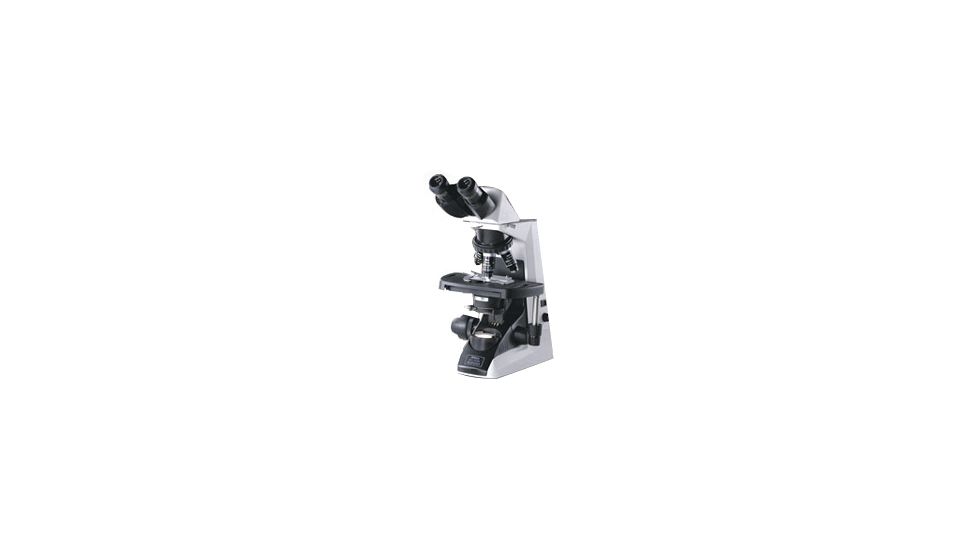

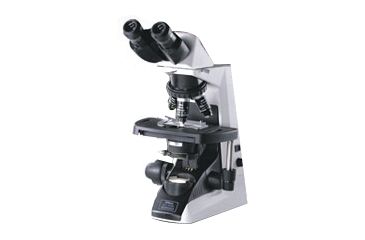

The Nikon Eclipse E200-LED Biological Microscope MCA762DD has been designed to be a built-to-last, top-quality biological microscope that is perfect for rudimentary laboratory use or as a student microscope for teaching purposes. With its newly developed LED Eco-Illumination system, this Laboratory Microscope from the experts at Nikon Instruments produces brighter, sharper, crisper, and clearer images for a noticeably enhanced view. Best of all, the Nikon Eclipse E200-LED Microscope maintains the same operational ease and rigidity common to all Nikon microscopes and is compatible with many accessories for higher-grade Eclipse series microscopes. For a great way to make sure you have a high quality microscope at your disposal, choose the Nikon Eclipse E200 Microscope.
Specifications for Nikon Instruments Eclipse E200 Microscope:
| Applications: | EQA, Pathology, Cytology, Observation of Prepared Slide, Veterinary |
| CFI60 Infinity Optical System, Parfocal distance: | 60 mm |
| Illumination: | High luminescent white LED illuminator (Eco-illumination); 6V20W/6V30W halogen lamp, Compliant multi-voltage (100 V-240 V) |
| Eyepieces (F.O.V.): | CFI E 10x (20 mm); CFI E 15x (12 mm) |
| Focusing: | Coaxial coarse/fine focusing |
| Right Focus: | fine |
| Left Focus: | coarse/fine |
| Focusing stroke: | 26.5 mm |
| Coarse: | 37.7 mm/rotation |
| Fine: | 0.2 mm/rotation |
| Eyepiece Tube: | E2-TB Binocular Tube |
| E2-TF Trinocular Tube, Eyepiece/Port: | 100/0, 0/100, 360° rotatable |
| C-TE2 Ergonomic Binocular Tube, Inclination: | 10-30 degrees; Extension - up to 40 mm |
| Nosepiece: | Quadruple nosepiece (within main body) |
| Stages: | Rectangular stage (within main body), with specimen holder, Cross travel - 78 (X) x 54 (Y) mm |
| Objectives (NA / W.D., mm): | CFI E Plan Achromat 4X (0.10 / 30); CFI E Plan Achromat 10X (0.25 / 0.7); CFI E Plan Achromat 40X (0.65 / 0.65); CFI E Plan Achromat 100X Oil (1.25 / 0.23); CFI Achromat DL and other higher-grade CFI60 objectives can be used. |
| E2 Abbe Condenser: | N.A. 1.25, Aperture diaphragm with position guide markings for respective CFI E Plan objectives |
| E2 Phase Condenser: | N.A. 1.25, Aperture diaphragm with position guide markings for respective CFI Achromat DL objectives |
| For the model without field diaphragm: | C-C Achromat Condenser, Achromat Swing-out Condenser 2-100x,Darkfield Condenser (dry), C-C Phase Contrast Condenser |
| Observation Methods: | Brightfield, Epi-fluorescence, Darkfield, Phase contrast, Simple polarizing |
| Intermediate Attachment: | E2-FM Epi-fluorescence Attachment, 2 filter cubes mountable; Y-THS Teaching Unit B (Side-by-Side); Y-THF Teaching Unit (Face-to-Face); Y-IDT Drawing Tube; Y-IER Eye-level Riser |
| Power Consumption (max.) Normal value: | 3 W (LED model), 41 W (halogen model) |
| Weight (approx.): | 7.3 kg (Binocular standard set) |
Features of Nikon Microscope - E200:
- Enhanced LED Eco-Illumination
- Crystal-clear Images with CFI60 optics
- Ergonomic Design Ensures Comfortable Operation
- Siedentopf-type eyepiece tube w/ 30° Incline
- Eyepieces Feature Built-in Diopter Adjustment
- Unique Refocusing Stage Eliminates the Need to Refocus Manually
- Upper Limit Stopper
- Revolving Nosepiece
- Adjustable Binocular Tube Reduces Strain
- Eye-level Riser
- Robust, Vibration Resistant Construction
- Anti-mold Agents Resist Mold Growth
- Coarse motion torque adjustable, Refocusing function
Package Contents:
- Nikon Eclipse E200-LED Biological Microscope MCA762DD
