Meiji Techno Inverted Brightfield Biological Microscope

The Meiji Techno Inverted Brightfield Biological Microscope is here at Opticsforyou.com and as usual we offer great discounts !

Purchase your new Meiji Techno Inverted Brightfield Biological Microscope from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

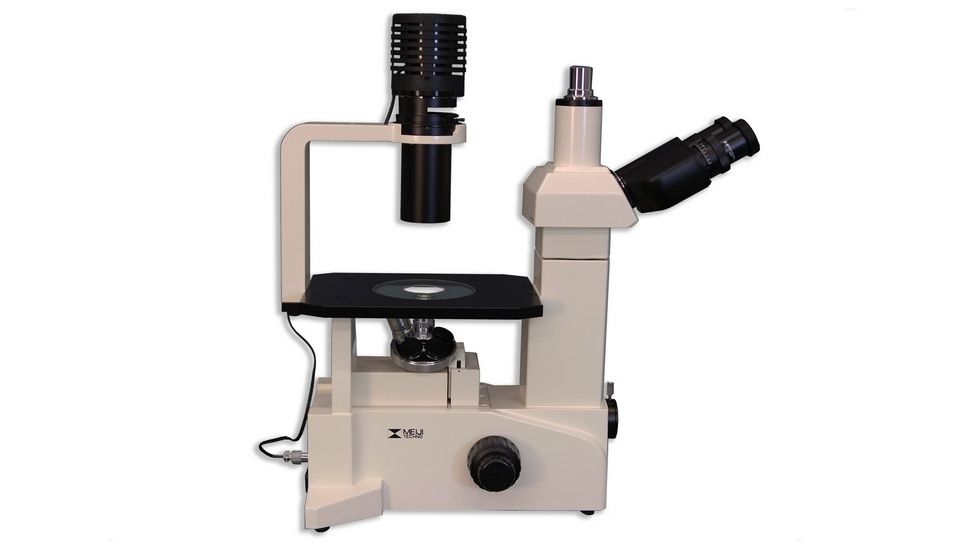

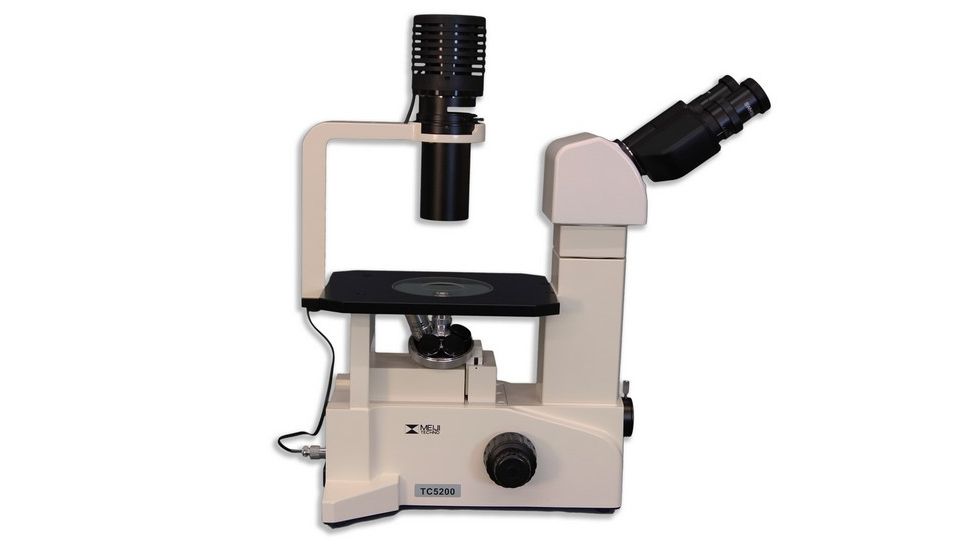

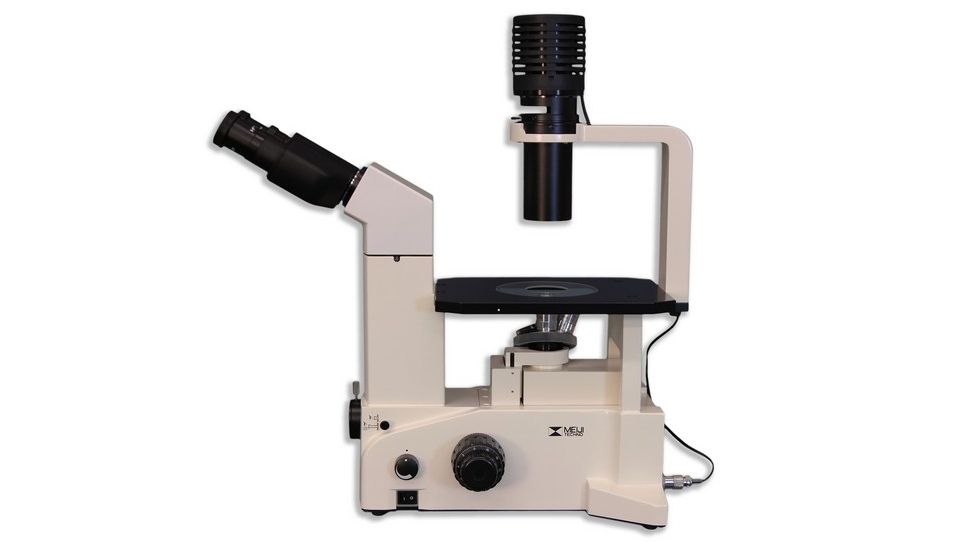

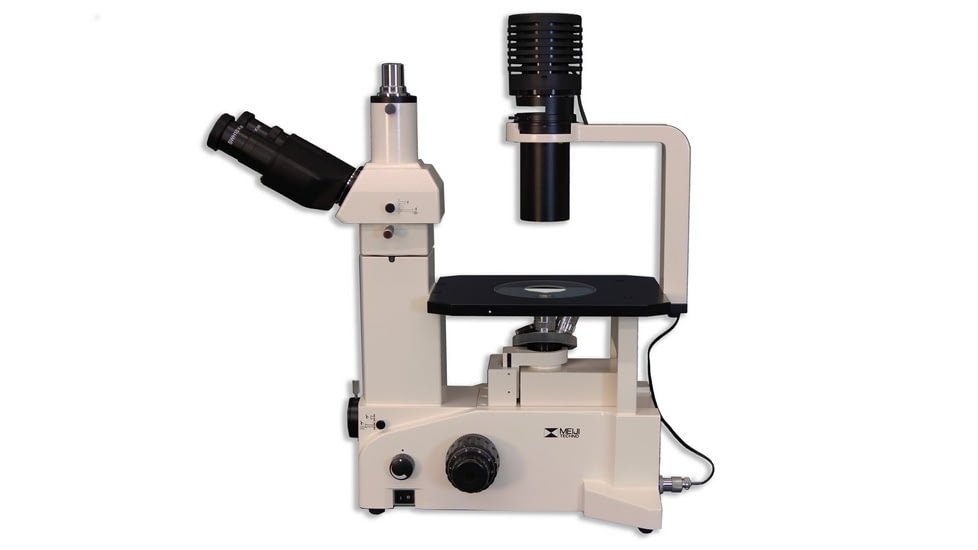

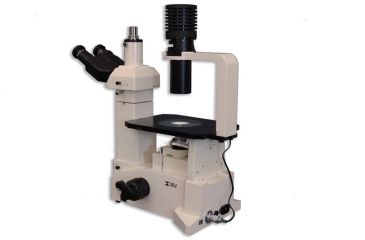

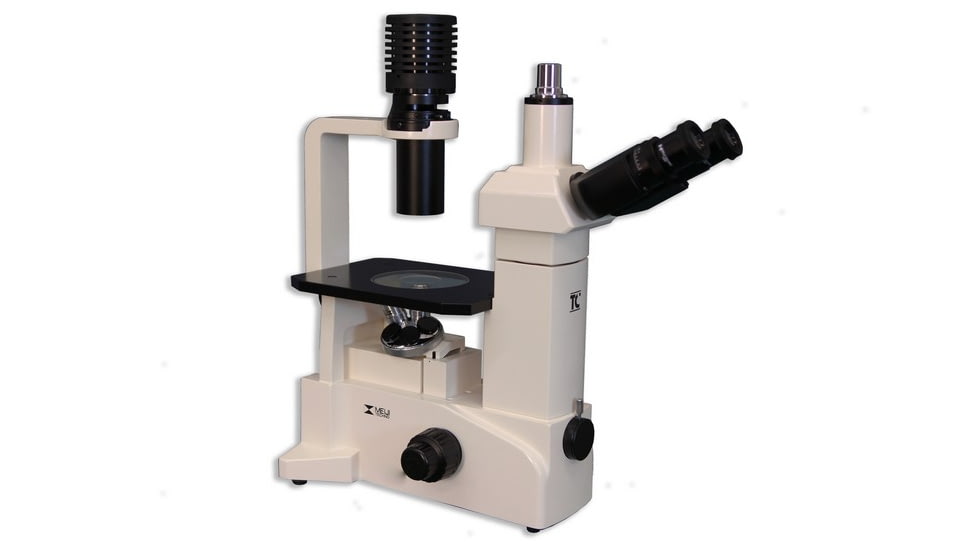

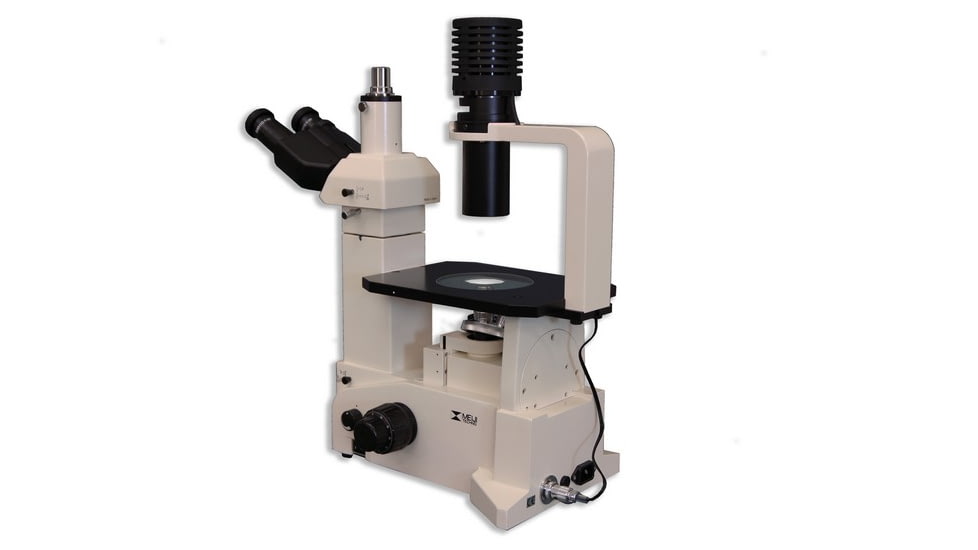

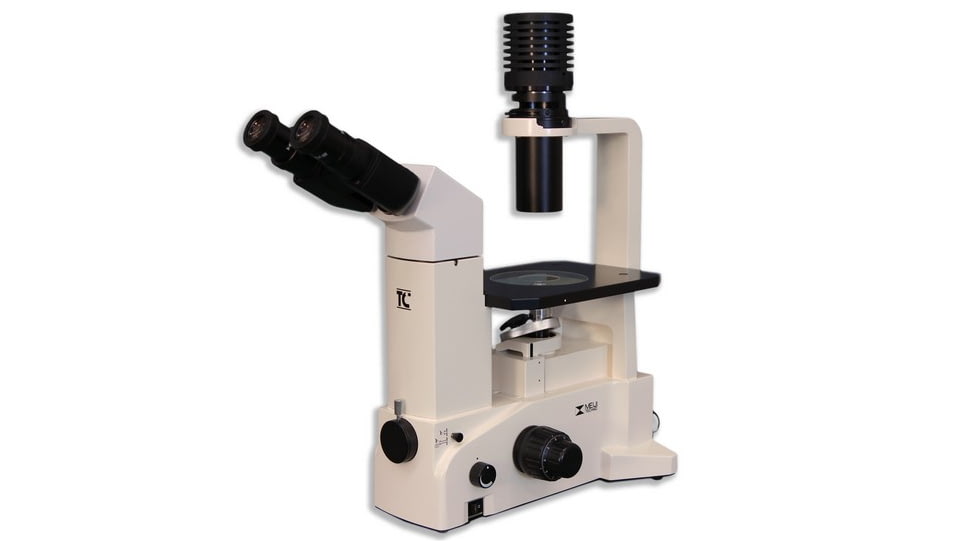

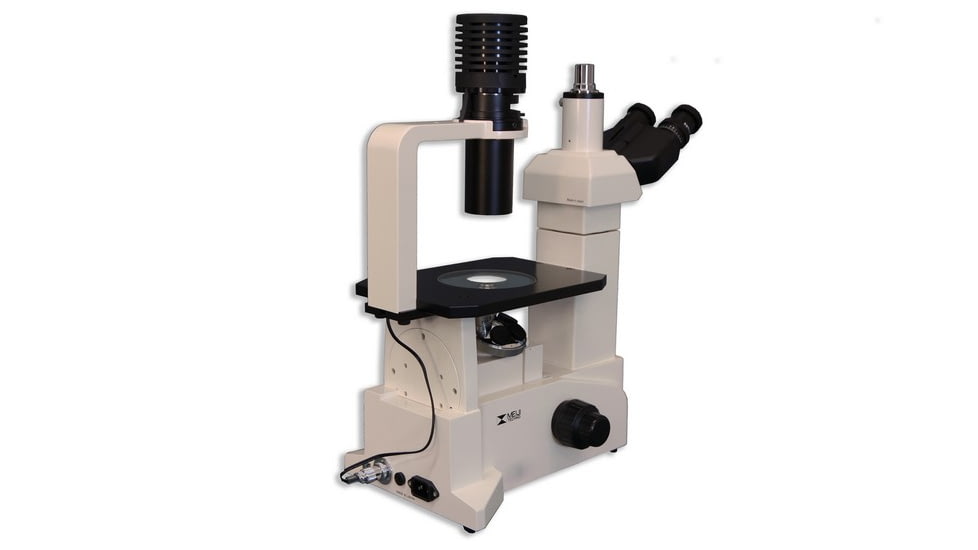

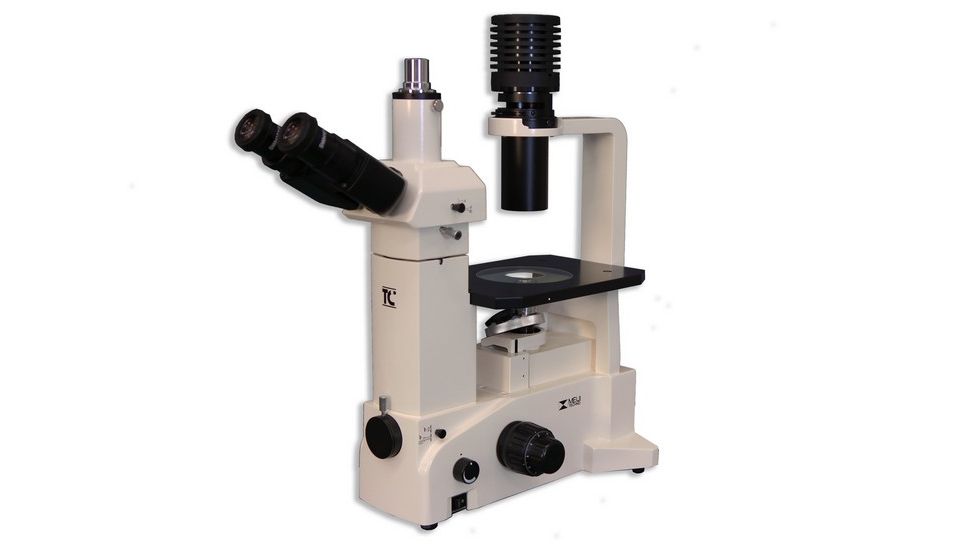

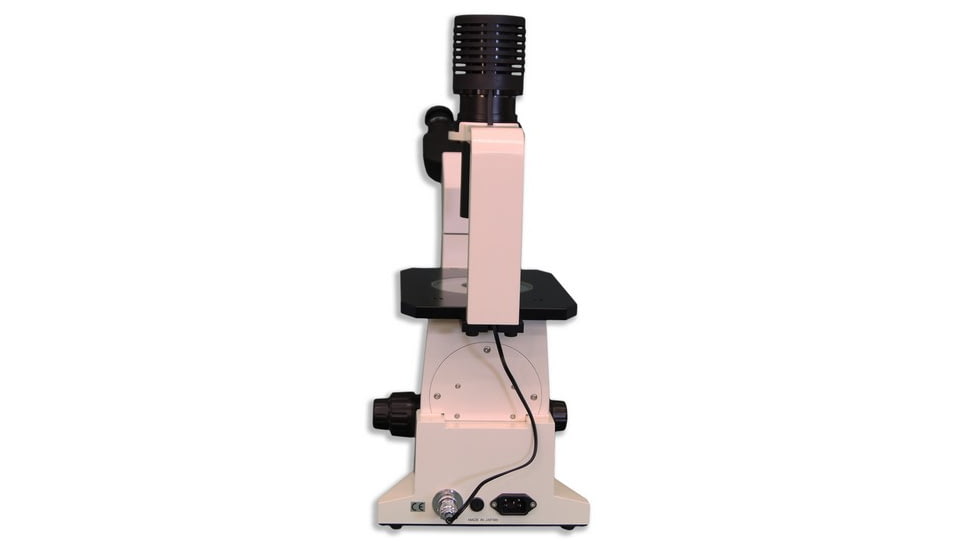

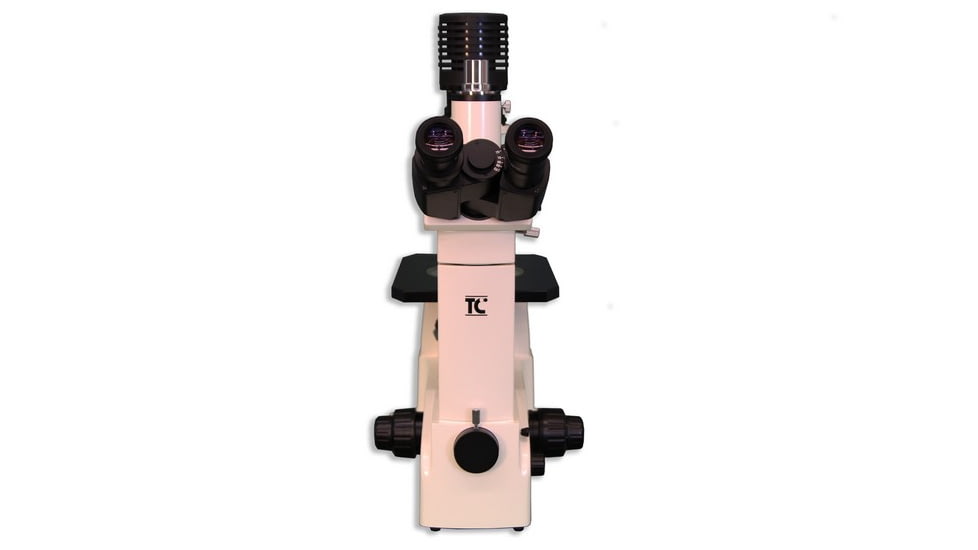

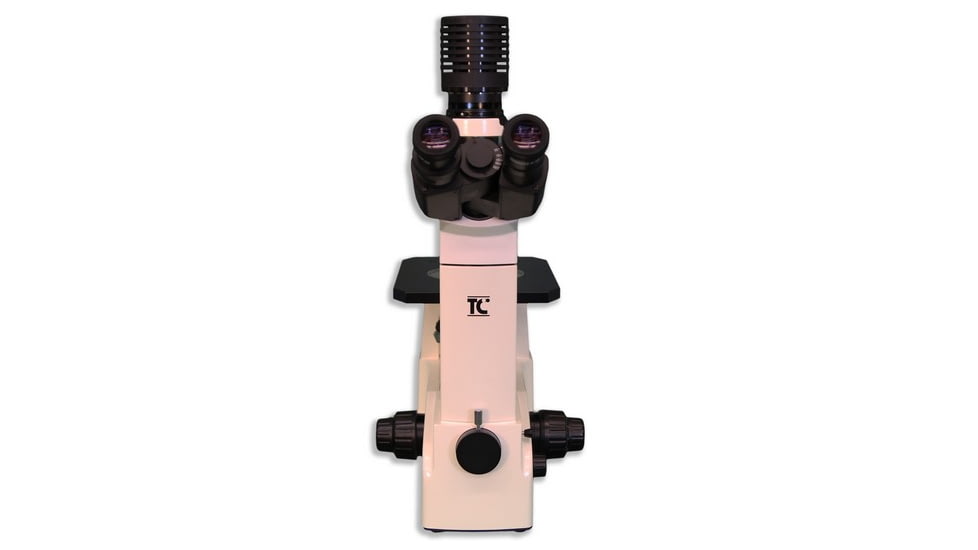

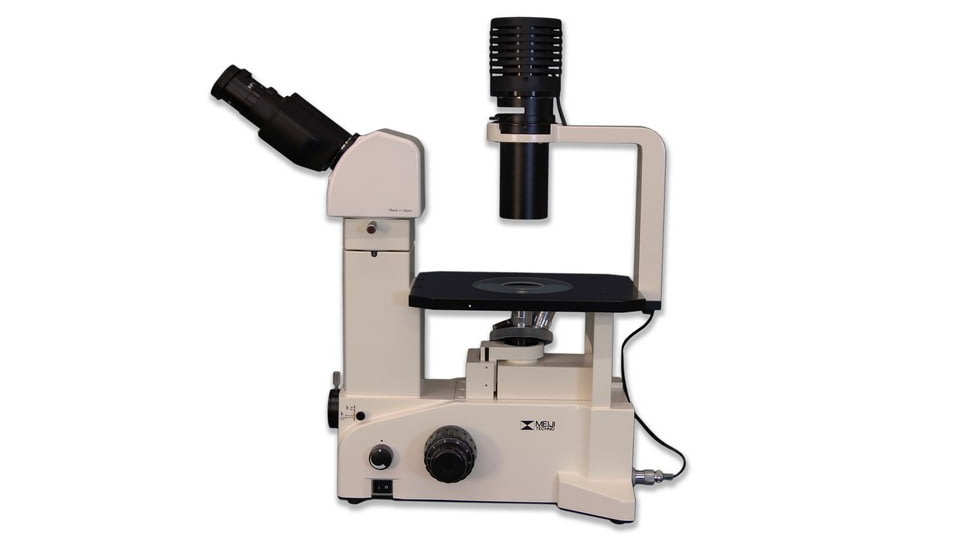

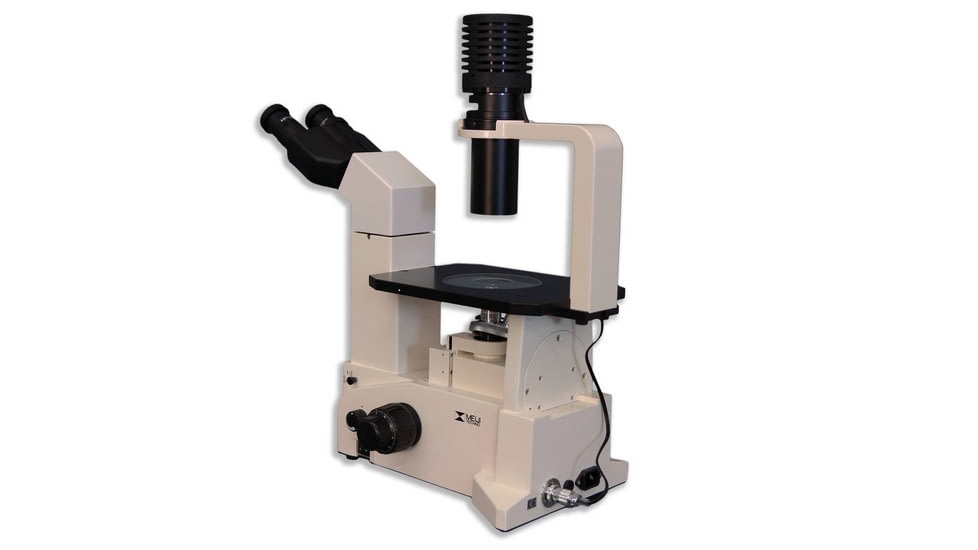

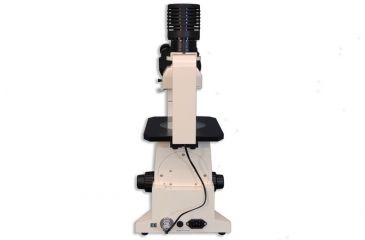

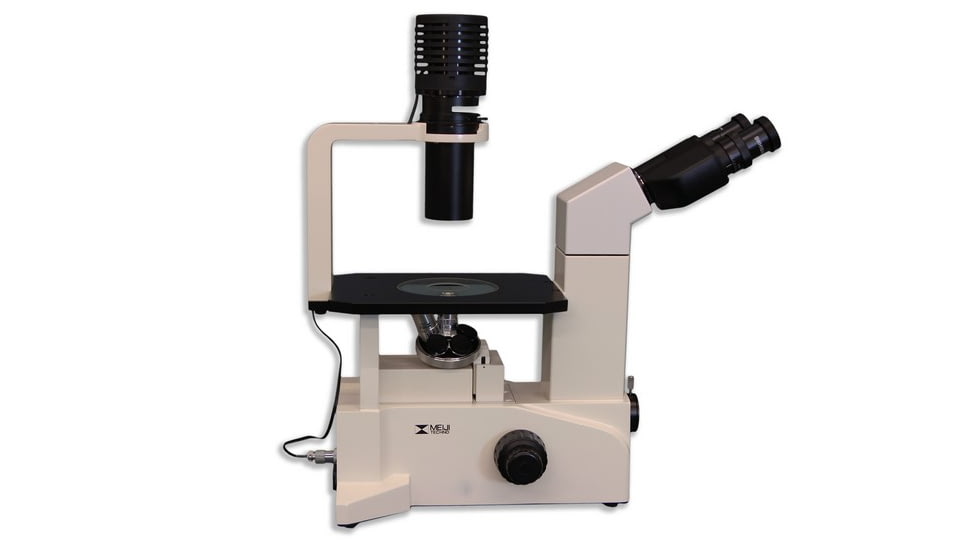

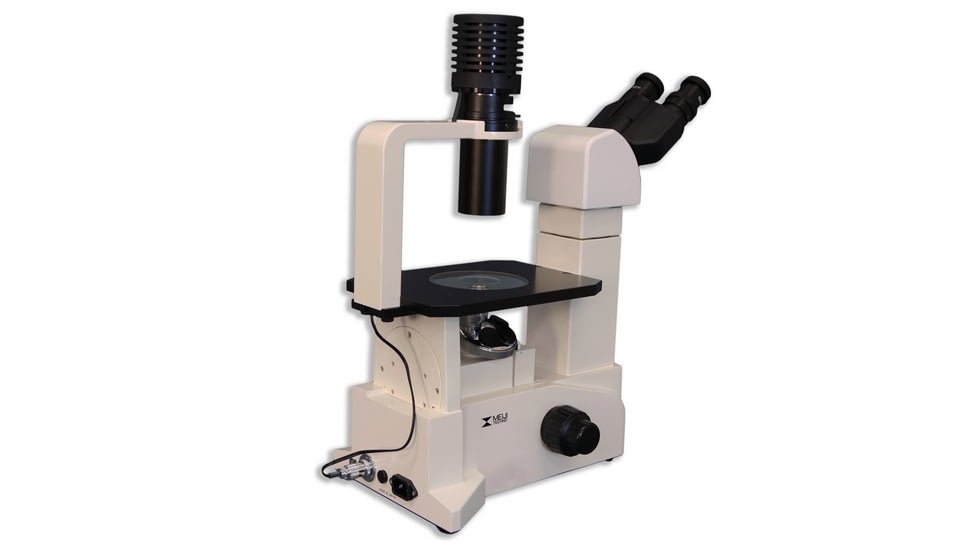

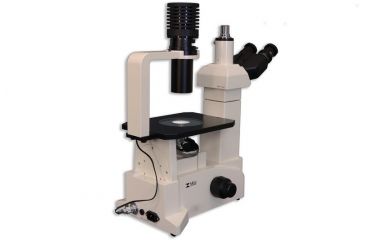

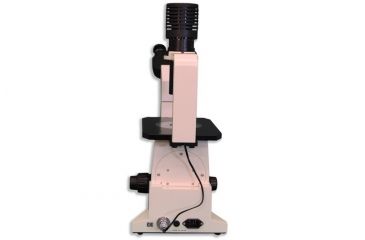

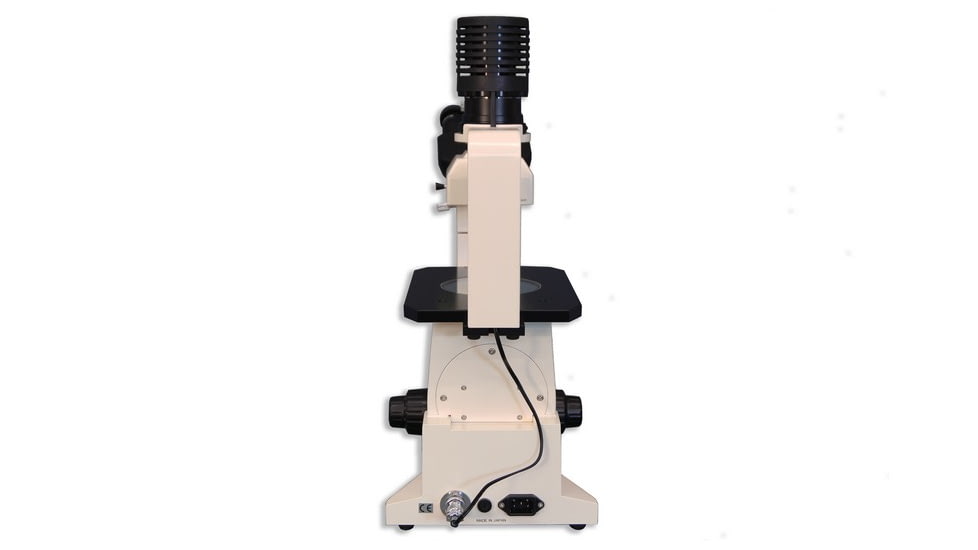

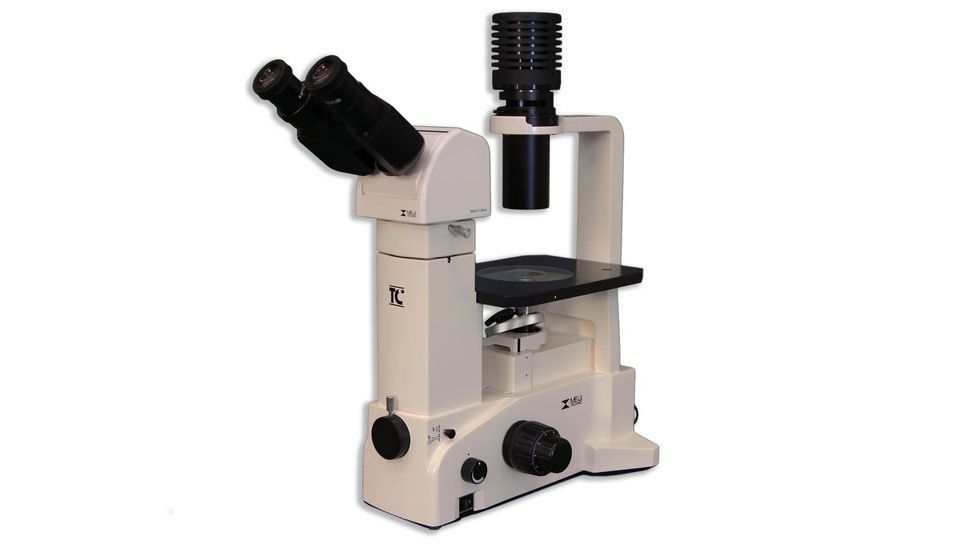

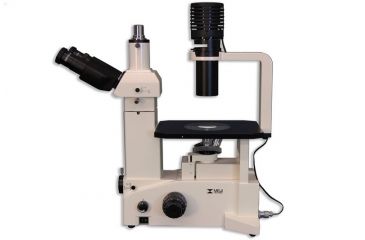

Meiji Techno's latest inverted microscope line is the cost-effective TC-5000 Series Inverted Biological Microscopes. The TC-5100 & TC-5200 Series brightfield microscopes have been designed to be a versatile, modular, ergonomic, system ideal for use in research, educational and clinic applications. The TC-5100 & TC-5200 Series are well suited for wide variety of routine examination of tissue culture, precipitates and high resolution video microscopy. The TC-5100 & TC-5200 Series microscopes deliver crisp, distortion-free, high resolution images in multiple modes of operation. A wide range of components, objectives and contrasting methods are available to suit your specific application.

Features of Meiji Techno Inverted Brightfield Biological Microscope:

• Seidentopf type binocular head inclined at 30° or trinocular at 45°
• Equipped with 6V, 30W Halogen lamp illuminator
• N.A. 0.30 condenser
• 180mm(X) X 245mm(Y) stage with replaceable glass insert with 45mm opening
• Exchangeable observation tubes
• Integrated Automatic Voltage Sensing Power Supply with localized power cord
• Compact wedge shaped cast aluminum alloy frame for exceptional stability and a small footprint
• Chemical resistant baked enamel finish
• Flexible and modular design for system expansion
• Transparent stage plate for easy objective identification
• Low profile coaxial and fine focus controls with tension adjustment
• Precentered 30W Halogen bulb
• Integrated Automatic Voltage Sensing Power Supply with localized power cord
• Optional mechanical stage with specimen holders

Package Contents:

• Inverted Biological Brightfield Compound microscope:
• Infinity Corrected Optical System: F-200MM with 6V 30W Halogen Koehler illumination with quintuple nosepiece and auto voltage sensing power supply.
• Head: Inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes).
• MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm.
• MA821: TC Long Working Distance Objective WD 17.3mm, NA 0.25, Planachromat 10X, Infinity F=200mm ∞/1.0.
• MA822: TC Long Working Distance Objective WD 7.0mm, NA 0.40, Planachromat 20X, Infinity F=200mm, ∞/1.0,
• MA853: TC Condenser, N.A. 0.30, W.D. 73.mm.
• STAGE: Plain stage with 180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening.
• MA878: Glass Stage plate insert for plain stage (Round-109mm diameter, 1.5mm thick with 44.3mm central opening).
• MA863: Cobalt clear filter in mount in 51mm mount.
• MA809/10: Removable AC Electric cord with plug for 115V models.
• MA326: Bulb 6V 30W Halogen (Factory Installed).
• MA327: Fuse 3 Amp (Factory Installed).
• Manual: TC-5000 Meiji Techno Instruction Manual.
• Warranty: Limited Lifetime Warranty Card.
