Maretron Mid Double-Ended Cordset w/ Free Shipping and Handling — 10 models

The Maretron Mid Double-Ended Cordset is here at Opticsforyou.com and as usual we offer great discounts Up to $2.50 Off!

Purchase your new Maretron Mid Double-Ended Cordset from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

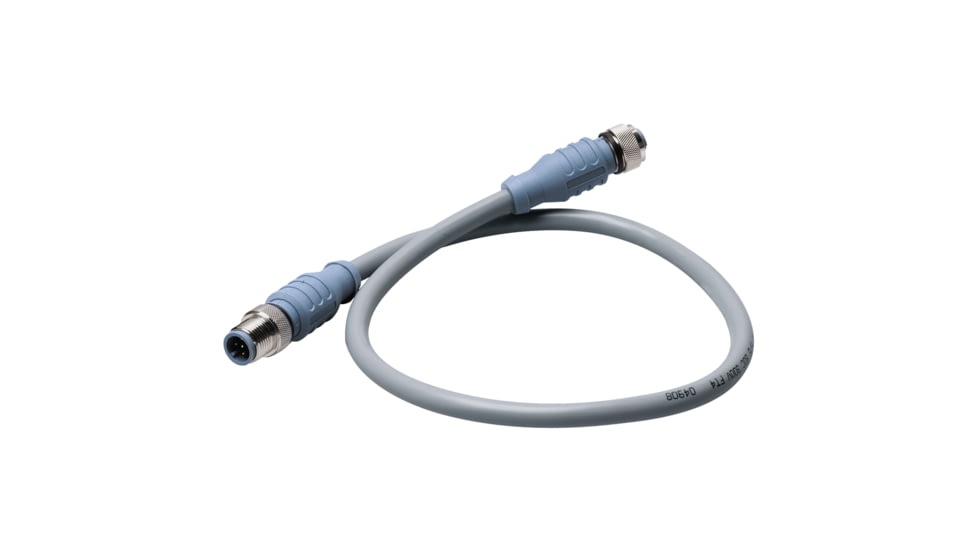

Maretron Mid Double-Ended Cordset - 0.5M Gray

Mechanical:

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray

Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray

Contact Mat/Plating: Brass/Gold

Coupling Nut Mat/Plating: Brass/Nickel

Connector Outside Diameter: 0.59"

Electrical

Current Rating: 4.0 Amps

Voltage Rating: 250 V

Cable

Outer Jacket Mat/Color: PVC/Gray

Conductor Insulation Material: PE (data pair) PVC (power pair)

Number of Conductors: 2x16 (1.29mm) AWG Data 2x20 (0.81mm) AWG 20 (0.81mm) AWG Drain Wire

Shielding (3 Levels): Alum/Polyester Foil (Overall) Foil (Power Pair) Foil (Data Pair)

ENVIRONMENTAL

Protection Class: IEC IP68 NEMA 1346P

Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

APPROVALS

(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625 AWM 80 deg C 300V

(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C AWM I/II A/B 80 deg C 300V FT4

NMEA: NMEA 2000 Approved

IEC: IEC 61162-3

Features of Maretron Mid Double-Ended Cordset

• Rugged IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installatin requirements
• Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable
• Color: Gray

Package Contents:

• Maretron Mid Double-Ended Cordset
