Product Discontinued by Manufacturer
LW Scientific Innovation Trinocular Microscope w/ BioVIEW Camera and Monitor has been discontinued by LW Scientific and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Microscopes yourself to try and find the perfect replacement for you!

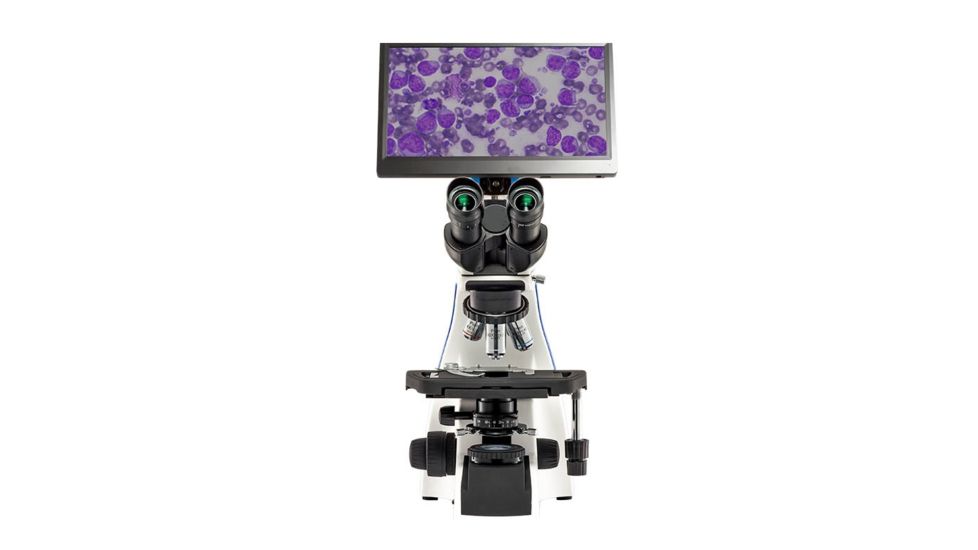

Product Info for LW Scientific Innovation Trinocular Microscope w/ BioVIEW Camera and Monitor
The LW Scientific Innovation Trinocular Microscope w/ BioVIEW Camera and Monitor is here at Opticsforyou.com and as usual we offer great discounts !
Purchase your new LW Scientific Innovation Trinocular Microscope w/ BioVIEW Camera and Monitor from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.
The BioVIEW microscope camera and monitor is the essential tool for live presentations and client education. The premium BioVID HD1080+ camera paired with the 1080p 11.6" HD Monitor provides a bright and beautiful image. Simply mount the camera onto any trinocular C-mount for amazing resolution and fast-action video (60fps). Using the included mouse and SD card, click to save and view images and videos...even view side-by-side comparisons.
Whether in a large lecture hall, a classroom, the laboratory, or the clinic, the BioVID HD 1080+ will ensure clients and students see microscope images clearly.
Ideal for a wide variety of applications:
- Research, Teaching, & Demonstration
- Pathology, Cytology, Oncology, Hematology, Semen Evaluation
- Dental Applications
- Industrial & Manufacturing
Specifications for LW Scientific Innovation Trinocular Microscope w/ BioVIEW Camera and Monitor:
| BioVIEW MONITOR SPECIFICATIONS: | |
| Display: | Panasonic super TFT LCD |
| Resolution: | True 1080p |
| Color: | 16.7 million |
| High contrast: | Ratio up to 1,000 |
| Backlight: | LED with 50000 hours lifetime |
| View Area: | 11.6-inch active |
| Viewing: | IPS full wide-angle |
| OPERATING CONDITIONS: | |
| Operating Temp: | -15º to 55º C |
| Humidity: | 10-90% |
| Synchronization Range: | 30-80 KHz horizontal 55-75 Hz vertical |
| Power Supply: | AC 110v-220v auto-switching input DC 12v /1a output |
| Power Consumption: | Max 12w |
| PERFORMANCE: | |
| Input: | HDMI |
| Resolution: | 1920 x 1080 |
| Display Type: | 16 |
| Contrast Ratio: | 1,000 |
| Colors: | 16.7 million |
| View Angle: | IPS full view |
| Display Area: | 258mm W x 145mm H |
| Pixel Pitch: | 0.134mm W x 0.134mm H |
| Brightness: | 350 CD/sq.m |
| Back Light: | 5,000 hours |
| Dimensions: | 281mm L x 179mm H x 15.6mm D |
| Weight: | 400g |

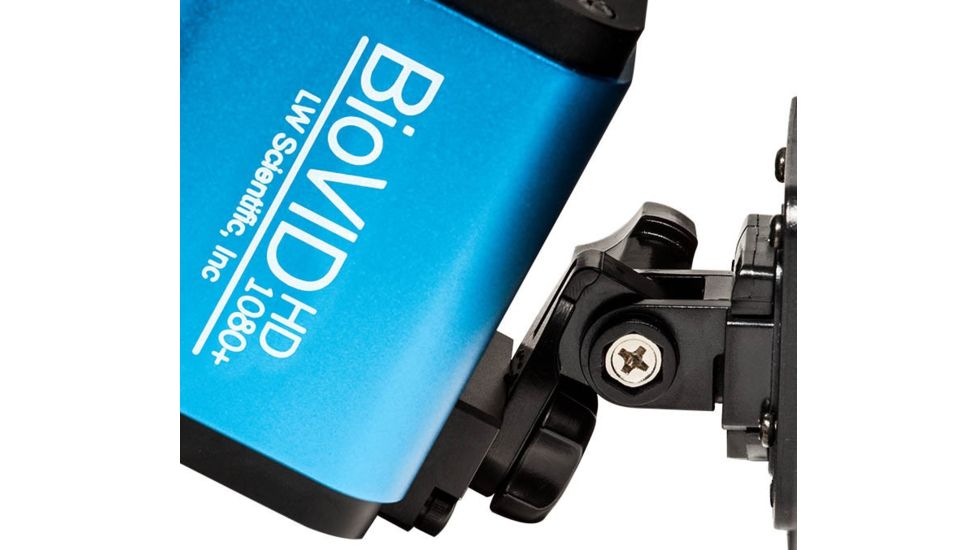

| BioVID HD 1080+ CAMERA SPECIFICATIONS: | |
| Resolution: | 1920x1080 |
| Image Sensor: | 1/2.8" (5.5x3.4mm) Sony IMX236(C) CMOS color |
| Pixel size: | 2.8um x 2.8um |
| Auto-Exposure: | 0.1ms-999ms |
| Power: | UL/CE approved power adapter |
| AC Input: | 100-240Vac 50/60Hz, 0.31A (Auto-switching power adapter) |
| DC Output: | 12V, 1.0 amp |
| OPERATING CONDITIONS: | |
| Temperature: | -10°C ~ 50°C (14°F to 122°F) |
| Humidity: | 30-80%RH |
| CONNECTION AND CONTROLS: | |
| USB Port: | USB computer cable or USB mouse |
| HDMI Port: | HDMI cable to TV |
| DC 12v Jack: | 12v DC power in |
| SD Slot: | For included SD card |
| ON/OFF: | Power button |
| LED Light: | Red=off, Blue=on |
| REQUIREMENTS: | |
| Operating System: | Microsoft Windows XP,Vista, 7, 8, 10 (32 & 64 |
| bit), Mac OSX, Linux: | |
| CPU: | Intel Core2 2.5 or higher |
| Memory: | > 4GB |
| USB: | 2.0 High-speed port |
| VIDEO OUTPUT: | |
| HDMI: | User interface |
| Video: | 60 frames per second @ 1920x1080 (HDMI). On screen-camera control panel and tool bar. |
| USB: | Includes software for capturing, rotating,measuring, etc. |
| Image/video capture into PC, Image capture into Mac Video: | 30 frames per second @ 1920x1080 (USB) White balance and standard color controls |
| Optional Accessory: | Eyetube adapter Part# MVP-ADAO-ETMC for use with trinocular microscopes without a c-mount) |
Features of LW Scientific Innovation Biological Infinity Microscope LED:
-
HEAD
- Trinocular (Seidentopf)
- Digital camera and monitor
- Diopter adjustment +/-5 (built into each eyepieces)
- Inclined 30°, rotates 360°
- 10X/22 Super Widefield High Eyepoint eyepieces
- (15X/16 eyepieces available)
- 30mm eyetube
- Interpupillary distance range 48-75mm
-
NOSE PIECE
- Reverse quadruple
- Multiple ball bearing mounted
-
OBJECTIVES
- Infinity High Contrast Plan objectives
- 4X, 10X, 40XR, 100XR (oil)
- Anti-fungal, parfocal, parcentric, color-coded
-
STAGE
- Double Layer Mechanical Stage (216mm X 150mm)
- Graphite-Coated Surface
- Coaxial drive controls, rackless
- Range of traverse: 75mm x 55mm
- Slow-close hydraulic slide finger
-
FOCUS
- Coarse adjustment: range of 18mm
- Fine adjustment: graduation of 0.001mm
- Tension control knob
-
ILLUMINATION
- Movable Abbe condenser, NA 1.25
- Iris Diaphragm
- LED provides 50,000 hours of light and consistent even brightness
- Variable light adjustment
- Simple Kohler illumination
- 90-240V / 50-60Hz automatic-switching power input
-
OPTIONS
- 50x oil objective
- 60x dry objective
- Phase contrast
- Darkfield condenser (dry)
- Simple polarizer,
- WF 16X/15mm eyepieces
-
WEIGHT AND DIMENSIONS
- Height: 16 in (406 mm)
- Length: 15 in (381 mm)
- Width: 8.5 in (216 mm)
- Weight: 14.2 lbs (6.4 kg)
-
PACKAGE DIMENSIONS
- 21 lbs (9.5 kg)
- 21 in x 16 in 13 in (533 mm x 406 mm x 330mm)
-
OPTIONAL HARD CARRY CASE
- 15 lbs (6.8 kg)
- 22 in x 18 in 12 in (559 mm x 457 mm x 305mm)
Package Contents:
- LW Scientific Innovation Biological Trinocular Microscope With LED Illumination
- BioVIEW HD1080+ Camera and Monitor
- C-Mount Adapter
- HDMI Cable
- USB220-ATA / USB2.0 A cable - 2 meter
- USB Mouse
- 8G SD Card
- CD with camera driver and software
- Pair of Low Profile Eyeguard
- Pair of High Profile Eyeguards
- Dust Cover
- Manual
