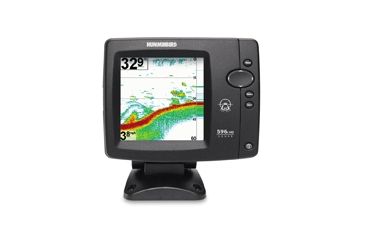

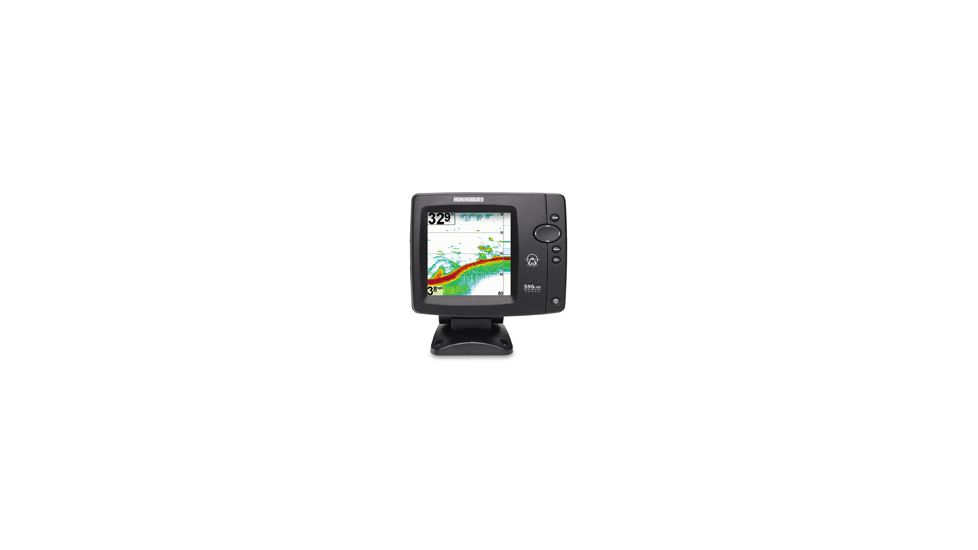

Humminbird Fishfinder 596C
Tap Tap to Zoom
Product No Longer Available
Unfortunately Humminbird Fishfinder 596C is not listed by OpticsForYou.You can also explore other items in the Fishfinders yourself to try and find the perfect replacement for you!
Product Info for Humminbird Fishfinder 596C
The Humminbird Fishfinder 596C is here at Opticsforyou.com and as usual we offer great prices and discounts !
Purchase your new Humminbird Fishfinder 596C from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.
The Humminbird Fishfinder 596C Sonar Only features an industry best, brilliant, color 640V x 480H 4.5" display. The Humminbird 596C Fishfinder w/ Sonar has a design that allows drop-in replacement capability for competitive in-dash models. Maximize your angling experience with the Humminbird 596C Fishfinder.
Specifications for Humminbird Fishfinder 596C Sonar Only:
| Display Size: | 4.5" diagonal |
| Display Pixel Matrix: | 640V x 480H |
| Display Type: | 256 Color TFT |
| Display Colors/Grayscale: | 256 Colors |
| Dual Beam: | |
| Sonar Coverage: | |
| 200 kHz / 20° @ -10db: | |
| 83 kHz / 60° @ -10db: | |
| Target Separation: | 2.5 inches |
| Power Output (RMS): | 300 Watts (RMS) |
| Power Output (Peak to Peak): | 2400 Watts (Peak-to-Peak) |
| Temperature: | Included |
| Speed: | Capable |
| Backlight: | Yes |
| Waterproof: | Yes |
| Mount: | Quick Disconnect |
| Unit Size: | 6.9" W x 7.5" H x 4.5" D |
| Mount: | Optional In-dash |
| Unit Size: | 6.9" W x 5.4" H x 1.25" D |
| Transducer - Standard: | XNT-9-20-T |
| Transducer Mounting: | Transom |
| Power Input: | 10-20 VDC |
| Current Draw: | 615 mA |
Features of Humminbird Fishfinder 596C Sonar:
- ADVANCED SONAR FEATURES:
- Real Time Sonar RTS Window
- Selective Fish ID
- Sonar Echo Enhancement
- Split Screen Zoom
- USER-FRIENDLY TECHNOLOGY:
- Custom Digital Readout Selection
- Large Digits View
- Quick Disconnect Mounting System
- Selectable Background Color
- Triplog- optional
- X Press Menu System
Package Contents:
- Humminbird 596C Fishfinder 596C w/ Sonar 4073601
