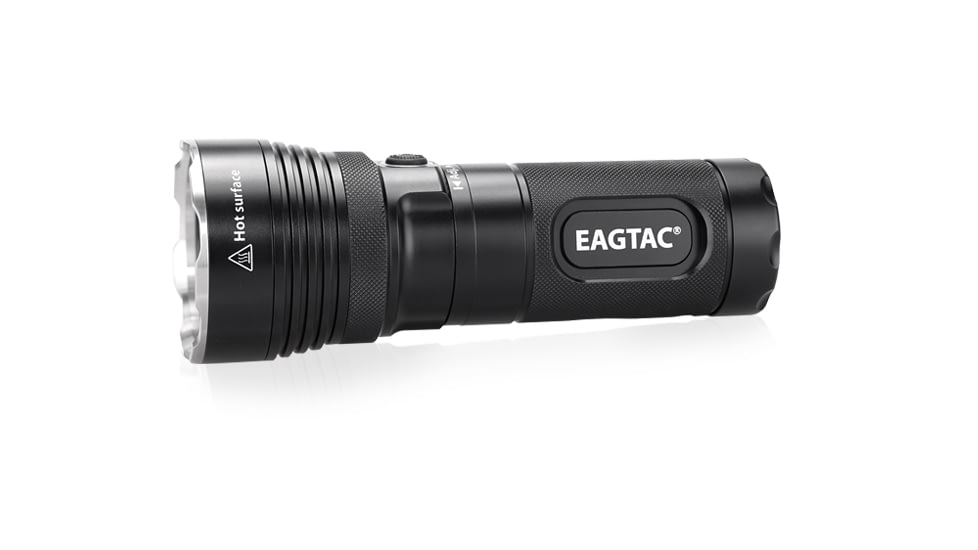

EAGTAC M Series MX25L3 Powerfull Compact LED Flashlight w/ Free Shipping and Handling — 2 models

The EAGTAC M Series MX25L3 Powerfull Compact LED Flashlight is here at Opticsforyou.com and as usual we offer fantastic discounts Up to $4.00 Off!

Purchase your new EAGTAC M Series MX25L3 Powerfull Compact LED Flashlight from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

Reliability that you can count on

We design this circuit to survive the toughest torture environment including: 1) repeatedly over-night burn-in test w/ minimal cooling, 2) over input voltage test of up to 20V, 3) over-driven output current test of up to 5.5A, and 4) high temperature bake test.

Our experienced electronic engineers ensure all components are working at its maximum efficiency and highest stability with the optimally planned and implemented circuit pcb layout. All chosen electrical components in this circuit design have good amount of headroom to ensure high stability in long term usage.

Inside the C5000 ST

Base on higher voltage platform than competitor's design, our C5000 ST circuit regulates the MT-G2 LED output until the very last drop of energy. Our highly efficient wide voltage buck current regulated circuit controls the precious amount of current that goes through the LED at all output levels. This results in constant brightness output regardless of LED variation, battery voltage, and temperature change. Our smart EMI management and quick soft-start design provide clean electricity to power the LED with enhanced service life.

We utilize low RDS(on) high power external mosfets, rugged & shielded power inductor, low ESR 50V X7R ceramic capacitors, and low resistance 2 oz copper PCB for maximum efficiency. This also lower required input voltage to current regulate the LED at maximum output when the battery voltage is near the LED forward voltage.

The microprocessor is programmed to provide handy and easy-to-use interface for users. When the flashlight is turned off, it shuts off all unnecessary components and waits for response to user command at very low standby current (uA).

Excellent runtime & efficiency

We use highly precise operating amplifier with very low offset voltage to control the output current. This allows MX25L3 to run for 350+ hours on its lowest brightness level and constant regulate all output levels without LED flicking.

At its highest brightness output, MX25L3 runs for 2.7 hours (XM-L2) / 1.5 hour (MT-G2) using three EAGTAC 18650 3400mAh batteries with energy saving feature enabled. The circuit is also designed to handle six 3V primary CR123A batteries with the same great efficiency.

We strive to offer the brightest and the most efficient flashlight in the market regardless of added cost. Professional reviewers found our lights to be one of the brightest with their integrated sphere and lux meter. They typically report up to 20%-30% more runtime than other competitors during their runtime test. We believe performance and function come before fancy appearance.

Maximum lumen output

LED lumen

MT-G2 P0: 27501-2320/1220/205/35

XM-L2 U2: 15051-1270/780/121/5

ANSI lumen2

MT-G2 P0: 23751-2006/1057/177/28

XM-L2 U2: 12451-1054/648/99/4

Energy saving technology

1) This feature prolongs turbo output runtime, by reducing output current by 25% after 200 seconds at turbo mode. With this feature disabled by user, it reduces output current by only 10% after 200 seconds at turbo mode for higher output.

2) ANSI FL-1 lumen is the total overall light output being emitted from the flashlight. This measurement is generally more accurate as it takes into consideration the loss from reflector/lens/bezel. EAGTAC ANSI FL-1 Lumen output is measured using a calibrated integrated sphere one minute after turning on the flashlight.

Top binned LED

Cool White LED

CREE XM-L2 U2 LED (6000K)

CREE MT-G2 P0 LED (5000K)

Neutral White LED

CREE XM-L2 T6 LED (4300K)

Color tint selection

Cool White LED

This gives you the maximum brightness output in its class and maximum beam distance. The CREE MT-G2 P0 5000K LED can be either called cool white or neutral white as such color temperature is right at the border of the transition between two color tint.

Neutral White LED

If you need awesome beam output out in the woods, or areas with a lot of green vegetation, use our neutral white LED as it offers higher CRI (Color rendering index). Neutral white LED renders color like the sun in the afternoon. Neutral white LED is approximately 7% dimmer than our top binned cool white LED, but it's well worth the ability to see the real color of your surrounding.This gives you better color rendition and more accurate color relative to cool white LED.

CREE MT-G2 P0 LED

This is the first EasyWhite LED array built on the newest CREE SC3 technology platform. It pushes performance limits to redefine lumen levels and outstanding lumen/watt efficiency (over 107 lumen/watt at 18.5W). Its smooth beam profile features a huge and bright hot spot, suitable for lighting up a large area at close-up or mid-range.

CREE XM-L2 U2 LED

The XM-L2 LED is also built on the newest CREE SC3 technology platform. Its signle emittor die structure allows higher current per inch square compared to the MT-G2 array. XM-L2 U2 offers maximum projecting distance due to the more concentrated light source.

(Cool white LED beam profile shown above) Neutral white LED shares the same beam profile as its cool white version.

Specifications for EAGTAC M Series MX25L3 Powerfull Compact LED Flashlight:

Features of Eagtac M Series MX25L3 Powerfull Compact LED Flashlight:

• Clicky on/off side switch & Twisty head
• Easy on/off operation
• Turn on the light by press and release the on/off button switch (Included Accessories:
• Mil-Spec Para-cord Lanyard w/ quick attachment clip
• 3xCR123A Battery Magazines
• (Extra) tailcap w/ switch and tail-standing ability
• Heavy duty nylon holsterw/ self-retention device and open-top design
• Diffuser&G&R&B&Y Filters w/ flip cover (plastic)

Package Contents:

• EAGTAC M Series MX25L3 Powerfull Compact LED Flashlight
