The EAGTAC M Series M25C2-T Turbo LED Flashlight is here at Opticsforyou.com and as usual we offer fantastic discounts Up to 25% Off!

Purchase your new EAGTAC M Series M25C2-T Turbo LED Flashlight from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

The C3300 Extreme circuit dominate the output competition with its ultimate power management ability and proven stability.

Reliability that you can count on

We design this circuit to survive the toughest torture environment including: 1) repeatedly over-night burn-in test w/ minimal cooling, 2) over input voltage test of up to 13.5V, 3) over-driven output current test of up to 3.7A, and 4) high temperature duration test.

Our experienced electronic engineers ensure all components are working at its maximum efficiency and highest stability with the optimally planned and implemented circuit pcb layout. All chosen electrical components in this circuit design have good amount of headroom to ensure high stability in long term usage.

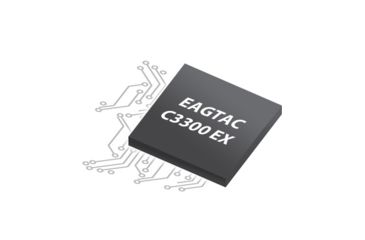

Inside the C3300 Extreme

This highly efficient synchronous buck current regulated circuit controls the precious amount of current that goes through the LED at all output levels. This results in constant brightness output regardless of LED variation, battery voltage, and temperature change. The Low EMI management and quick soft-start design provide clean electricity for the circuit and LED to enhance their service life.

Our synchronous buck converter is more technologically advanced and compact than regular buck converter. It also allows more board space for our exceptionally low DCR mosfets, rugged & shielded power inductor, and low ESR tantalum capacitors. This together leads to very high efficiency and low dropout voltage which allows single 18650 to regulate at turbo for most of the runtime.

Excellent runtime and flat regulation

M25C2 Turbo runs for 90+ hours on its lowest brightness level. The current regulated circuit design allows constant output throughout its runtime for all output levels without flicking.

At highest brightness level, M25C2 Turbo current regulates for 1 hour using two EAGTAC CR123A batteries. With two 3100mAh 18650 batteries (using 4 cells body extender) you get about 2.7 hours of runtime on high (1.9 hours with energy saving feature turned off).

The current regulation control method allows the just right of amount of current going through the LED. This results in constant brightness output regardless of battery type, LED variation, and temperature change.

High lumen output

LED lumen

XM-L2 U2 (Cool White): 1180/536/104/8

XM-L2 T6 (Neutral White): 1100/500/97/7

ANSI FL-12 lumen

XM-L2 U2 (Cool White): 980/449/86/7

XM-L2 T6 (Neutral White): 911/418/79/6

Smart energy management

1) Energy saving feature (on by default) reduces lumen output by 23% after 200 seconds at turbo mode. With this feature turned off, turbo mode output lumen will be reduced by only 9% instead after 200 seconds. If you wish to turn off this feature, we recommend only do so when you are using 18650 batteries or three or more CR123A for better runtime.

2) ANSI FL-1 Lumens is a measurement of light output standardized by American National Standards Institute for use with flashlights. This ANSI Lumen measurement is the total overall light output being emitted from the flashlight. This measurement is generally more accurate as it takes into consideration the loss from reflector/lens/bezel. EAGTACs ANSI Lumen output is measured using a calibrated integrated sphere three minutes after turning on the flashlight.

CREE XM-L2 U2 LED

Cool White output

This gives you the maximum brightness output in its class. Our XM-L2 LED offers 1180 LED lumen at turbo mode with industrial leading efficiency (175+ lumen/watt at 700mA current output).

Neutral White output

If you need awesome beam output out in the woods, or areas with a lot of green vegetation, use our neutral white LED as it offers higher CRI (Color rendering index) compared to cool white LED. Neutral white LED renders color like the sun in the afternoon. XM-L2 T6 Neutral white LED is approximately 7% dimmer than our top bin limited edition U2 cool white LED, but it's well worth it if you prefer the comfortable neutral color tint.

Color temperature choices

Cool White LED

This allows you to view the object with maximum brightness output and gives you maximum beam distance.

Neutral White LED

This gives you better color rendition and more accurate color relative to cool white LED.

Beam distance

The M25C2 Turbo beam reaches 544 yards / 498 meters at turbo output with the XM-L2 U2 LED.

Reflector

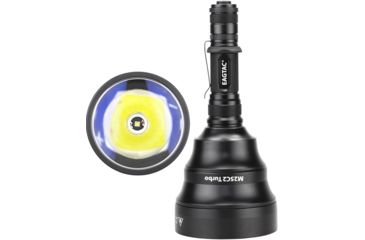

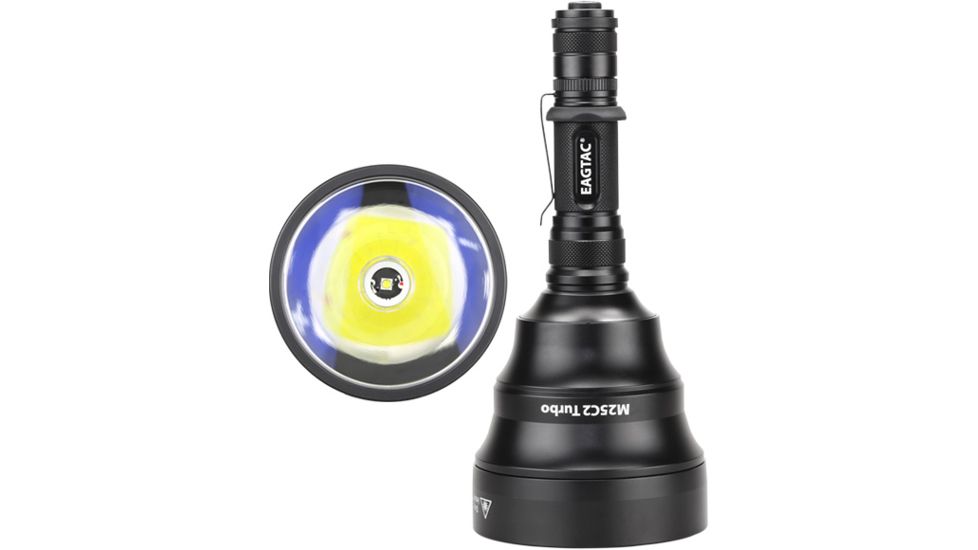

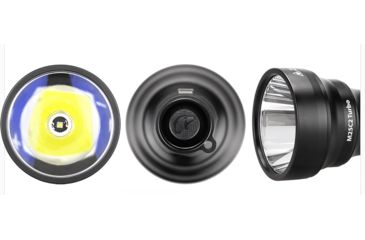

M25C2 Turbo uses polished aluminum reflector with smooth reflective finish for maximum output and far projecting beam. No donut, dark dot, or artifacts inside the beam.

Specifications for EAGTAC M Series M25C2-T Turbo LED Flashlight:

Features of Eagtac M Series M25C2-T Turbo LED Flashlight:

• Handful of powerful features
• easy-to-use
• There is nothing like it.
• Introducing the M25C2 Turbo user interface
• Easy and Trusty operation
• Switch on and off:
• Turn on the light by pressing the tailcap button until it clicks
• Slightly press for momentary on/off.
• Switching between output
• Twist the head to select between four output levels
• You can pre-selected output level before turning on the light.

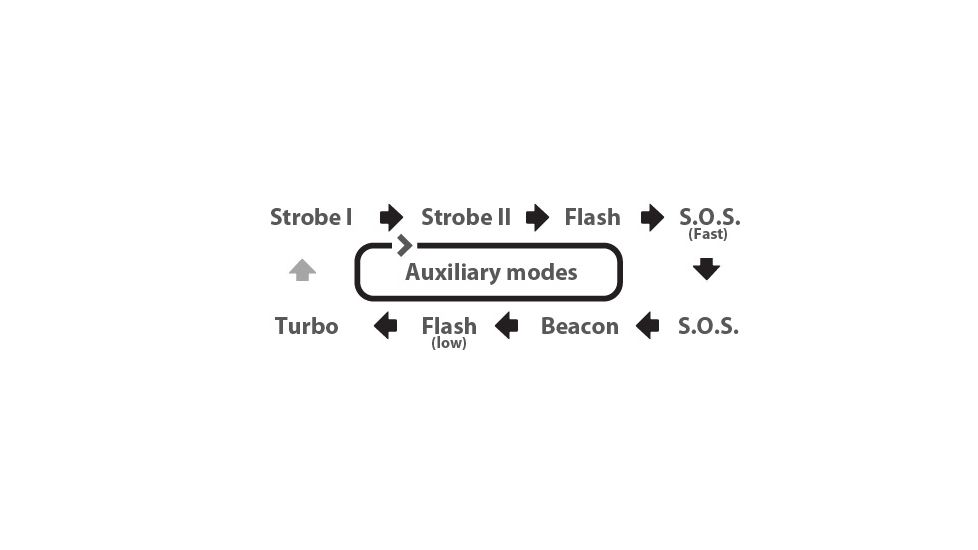

• Cycle through auxiliary modes
• Tighten the head (1st level)
• and loosen to 3rd (or 4th level) and then tighten the head within one second to enter auxiliary setting
• Repeat to cycle through all settings
• Turn off the light or loosen the head to quit.
• Other powerful features

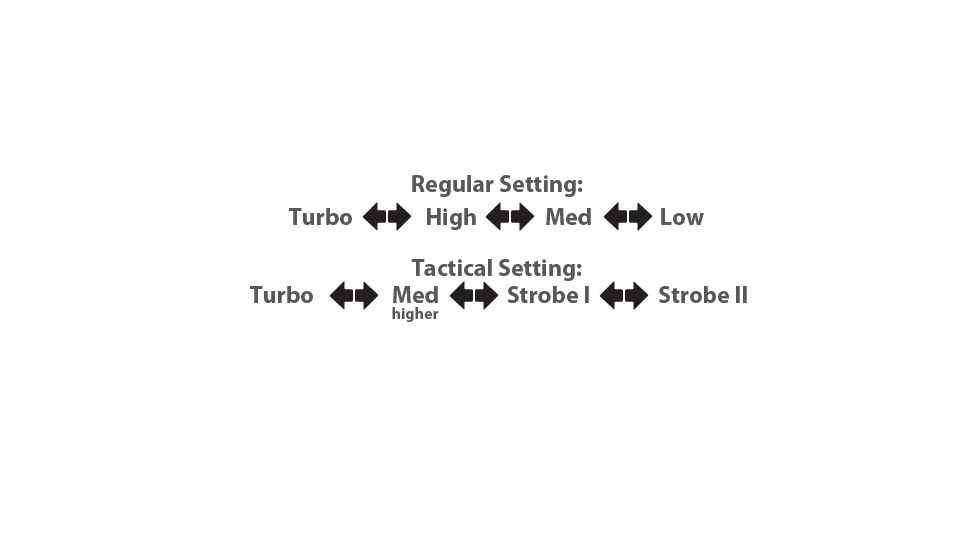

• M25C2 Turbo comes with two pre-defined modes
• Tactical mode (factory default/mode 1) includes Hi/Lo brightness levels and two strobe output for tactical use
• Regular mode (mode 2) includes four well separated brightness level for general use
• To toggle between modes
• dial to 2nd output level and turn the flashlight on and off for 20 times.
• Tail strobe feature (off by default): With this enabled
• you can access strobe output at the tailcap switch button
• To enable (or disable) this function (disable from factory)
• dial to 1th level and turn the flashlight on and off 20 times (one second or less between each click)
• With the tailcap strobe setting enabled
• double pressing the switch button (within one second) will activate the strobe output.
• Energy saving feature (on by default): M25C2 Turbo reduces output by 24% after 200 seconds at turbo mode
• With this feature turned off
• turbo output will be reduced by only 9% after 200 seconds at turbo mode
• To toggle this feature
• dial the head to 4th level and turn the flashlight on and off for 20 times
• Once setting has been changed
• LED will output 3 seconds at 100% (enable)
• or 1 second at 100% (disable).
• One model
• The M25C2 Turbo comes with titanium coated Stainless steel pocket clip
• tail-stand rubber boot
• soft cigar holding grip
• cigar grip cover ring
• lanyard ring attachment ring
• and mil-Spec Paracord Lanyard w/ quick attachment clip.
• Safety protection
• Battery reverse polarity protection
• Your safety is our first priority
• Inserting battery in the wrong direction may lead to serious damage and fire
• We incorporate a physical structure to protect against reverse polarity without compromise (battery with a protruding button top is required).
• Try our Panasonic based 3400mAh protected 18650 with custom-made protruding button
• it features industrial leading 3400mAh capacity and our trusty protective circuit is good for 4A-5A of continuous output.
• Battery stabilizer
• We incorporate a multiple spring loading mechanism in the flashlight body to prevent the batteries from moving around the body
• This ensure proper battery contact and non-dimming output for all output levels
• regardless of head tighten or loosen.
• Always ready for you
• One press for MAX or MIN output
• Unlike others that needs to cycle through modes or levels to get to the output you need
• With head tighten/loosen
• turning on the flashlight will always get you the maximum/minimum output power.
• Four pre-defined output
• Turn the head to access all three output levels
• You can pre-select your desired output before turning on the light
• For the lowest hidden output
• start from head loose
• tight and loose the head to enter the lowest output setting
• This setting is especially useful when you are in a dark environment and need to preserve your adapted night vision.
• Body tube extender
• Extended runtime & Superior handling
• Using 3 cells extender allows user to get 50% more runtime than standard two CR123A
• 4 cells extender doubles the runtime
• With increased battery juice
• user may consider disabling the energy saving feature to maximize the output.
• We included a battery spacer for CR123A and RCR123A users when using the body extender
• It slides directly into the end of the flashlight body tube and stabilize the battery from moving around the body tube.
• Body extender offers different way for you to hold the light
• either in tactical cigar grip mode
• or daily usage mode.
• Body extenders are included in our complete add-on kit
• or as a stand-alone accessory.
• Included Accessories:
• Mil-Spec paracord lanyard w/ quick attachment clip
• Tail-stand rubber boot

Package Contents:

• EAGTAC M Series M25C2-T Turbo LED Flashlight
