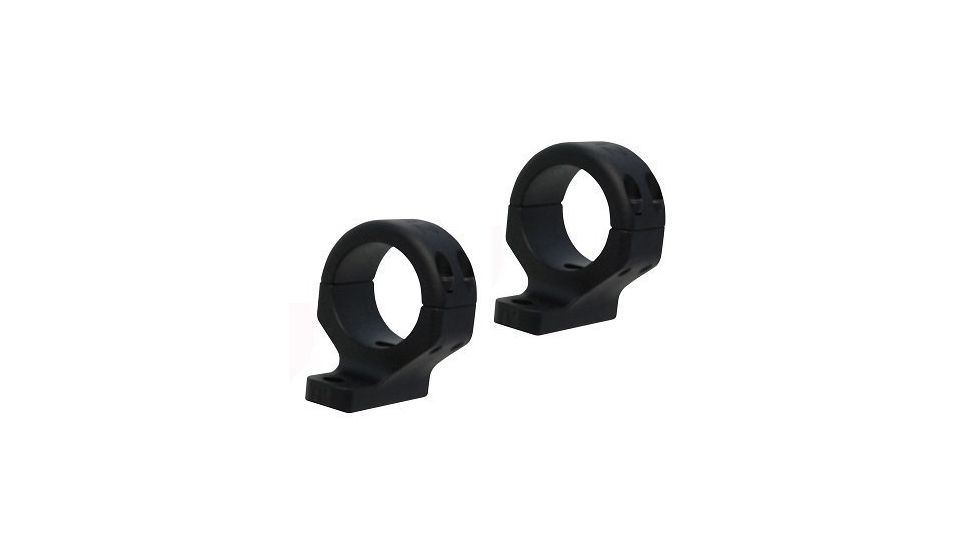

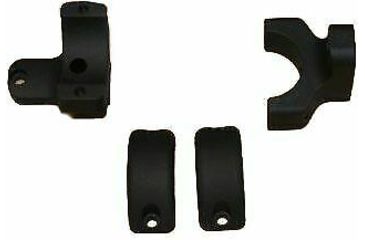

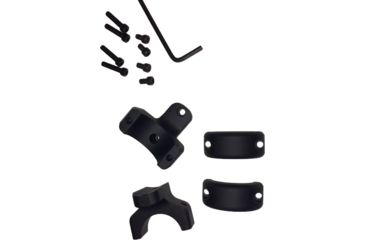

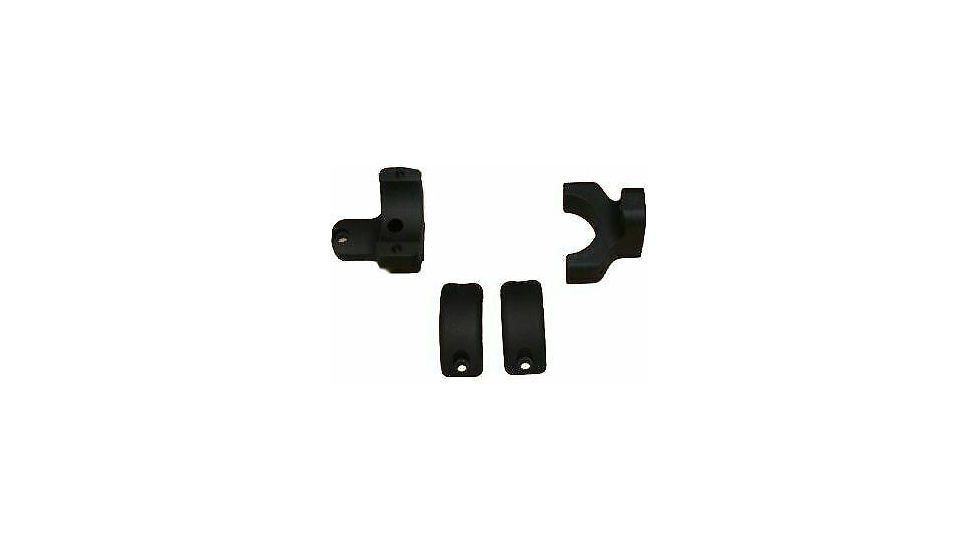

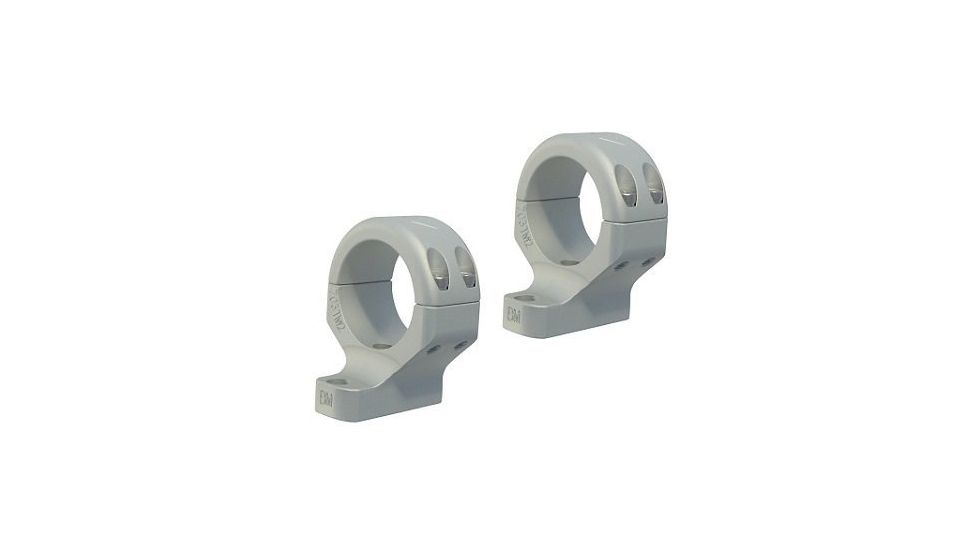

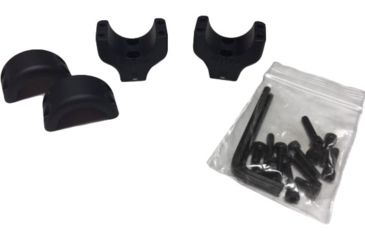

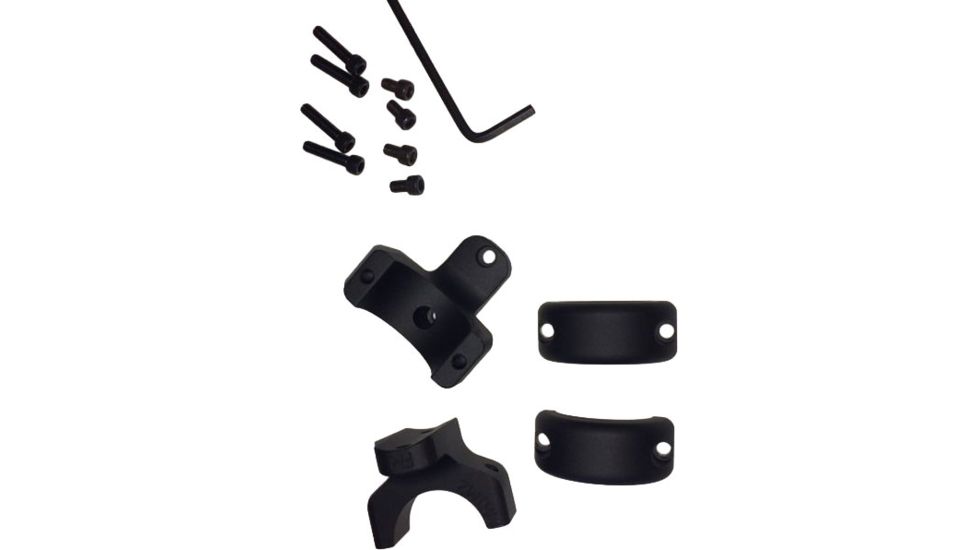

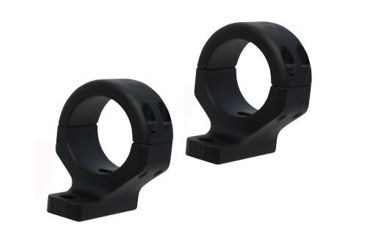

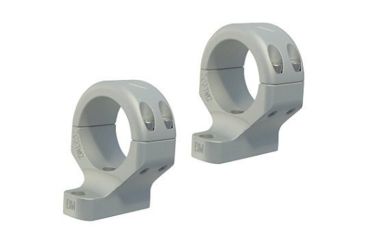

DNZ Products Hunt Masters Series 2 Two Piece Scope Mounts — 10 models

The DNZ Products Hunt Masters Series 2 Two Piece Scope Mounts is here at Opticsforyou.com and as usual we offer great prices and discounts Up to 67% Off!

Purchase your new DNZ Products Hunt Masters Series 2 Two Piece Scope Mounts from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

Weight of most all Hunt Master mounts are 2 to 3 ounces. Depends on height, style, and size. Material is 6061T6 Aluminum.

Browning A Bolt, Sako A7, Steyr (fits long and short actions):

Base screws are 6-48 X 1/4 long. Ring screws are 6-40 X 5/8 long. Both use a 7/64 Allen wrench.

Hole spacing dimensions on front mount and back mount are .86. Both mounts are the same part. Standard rings are .63 wide and Tactical rings are .80 wide. Standard rings have 2 screws per ring and Tactical rings have 4 screws per ring. Height of mounts from top of receiver to centerline of scope tube is low .94, medium 1.06, and High 1.19.

Browning X Bolt (fits all action lengths):

Base screws are 6-48 X 1/4 long. Ring screws are 6-40 X 5/8 long. Both use a 7/64 Allen wrench.

Hole spacing dimensions on front mount and back mount are .70. Both mounts are not the same part. Back mount is taller than front mount because receiver is lower on back end. Standard rings are .63 wide and Tactical rings are .80 wide. Standard rings have 2 screws per ring and Tactical rings have 4 screws per ring. Height of mounts from top of receiver to centerline of scope tube is low .94, medium 1.06, and High 1.19.

Howa 1500, Mauser M18, Mossberg 100ATR, 4X4, Patriot, MVP, Weatherby Vanguard, Remington 700,721,722,725 (fits all action lengths):

Base screws are 6-48 X 1/4 long. Ring screws are 6-40 X 5/8 long. Both use a 7/64 Allen wrench.

Hole spacing dimensions on front mount is .86 and on back mount it is .60. Both mounts are not the same part. Back mount is taller than front mount because receiver is lower on back end. Standard rings are .63 wide and Tactical rings are .80 wide. Standard rings have 2 screws per ring and Tactical rings have 4 screws per ring. Height of mounts from top of receiver to centerline of scope tube is X low .86, low .98, medium 1.10, and High 1.23.

Marlin XL7, XS7, Winchester 70 (fits Long action, WSM, and Short actions):

Base screws are 6-48 X 1/4 long. Ring screws are 6-40 X 5/8 long. Both use a 7/64 Allen wrench.

Hole spacing dimensions on front and back mount is .86. Both mounts are not the same part. Back mount is taller than front mount because receiver is lower on back end. Standard rings are .63 wide and Tactical rings are .80 wide. Standard rings have 2 screws per ring and Tactical rings have 4 screws per ring. Height of mounts from top of receiver to centerline of scope tube is low .92, medium 1.05, and High 1.17.

Savage Flatback Receiver (Fits 2003 and older long and short actions):

Front of receiver is rounded and back is flat where mounts attach.

Base screws are 6-48 X 1/4 long. Ring screws are 6-40 X 5/8 long. Both use a 7/64 Allen wrench.

Hole spacing dimensions on front and back mount are .86. Both mounts are not the same part. Back mount is taller than front mount because receiver is lower on back end. Standard rings are .63 wide and Tactical rings are .80 wide. Standard rings have 2 screws per ring and Tactical rings have 4 screws per ring. Height of mounts from top of receiver to centerline of scope tube is low .92, medium 1.05, and High 1.17.

Savage A17 30MM fits the Savage 2 piece 30mm mounts.

Savage Round Receiver (2004 and newer guns) Model 10,11,12,14,16,110,111,112,114,116,212,220, Savage A17, Savage Axis, Stevens 200, Ruger American Centerfire, Remington 783 (fits long and short actions):

Front and back of receiver are rounded where mounts attach.

Base screws are 6-48 X 1/4 long. Ring screws are 6-40 X 5/8 long. Both use a 7/64 Allen wrench.

Hole spacing dimensions on front mount and back mount are .86. Both mounts are the same part. Standard rings are .63 wide and Tactical rings are .80 wide. Standard rings have 2 screws per ring and Tactical rings have 4 screws per ring. Height of mounts from top of receiver to centerline of scope tube is low .92, medium 1.05, and High 1.17.

Thompson Center Venture (fits long and short actions):

Base screws are 6-48 X 1/4 long. Ring screws are 6-40 X 5/8 long. Both use a 7/64 Allen wrench.

Hole spacing dimensions on front mount and back mount are .88. Both mounts are the same part. Standard rings are .63 wide and Tactical rings are .80 wide. Standard rings have 2 screws per ring and Tactical rings have 4 screws per ring. Height of mounts from top of receiver to centerline of scope tube is low .94, medium 1.06, and High 1.19.

TIKKA T3, 595, 695, Whitetail Hunter (fits long and short actions):

Mounts fit flat top receivers that are drilled and tapped.

Base screws are 6-48 X 1/4 long. Ring screws are 6-40 X 5/8 long. Both use a 7/64 Allen wrench.

Hole spacing dimensions on front mount and back mount are .86. Both mounts are the same part. Standard rings are .63 wide and Tactical rings are .80 wide. Standard rings have 2 screws per ring and Tactical rings have 4 screws per ring. Height of mounts from top of receiver to centerline of scope tube is low .94, medium 1.06, and High 1.19.

Specifications for DNZ Products Hunt Masters Series 2 Two Piece Scope Mounts:

Features of DNZ Products Hunt Masters Series 2 Two Piece Scope Mounts:

• Hunt Masters signature series two piece scope mounts
• Fits long and short actions
• some super short actions left and right hand guns
• Custom made to fit each type of firearm and align perfectly with your rifles receiver
• Each ring and base is machined from a solid block of top-grade billet 6061T6 aluminum
• Internal ring and base design allows for extra eye relief adjustment
• Eliminates or reduces scope damage from tightening rings
• Approximately 1/3 the weight of steel
• Eliminates the need for windage screws that can work loose and cause problems
• No moving parts between the firearm and the scope
• Up to four times the threads of other mounts for absolute strength and security
• Absorbs shock and withstands temperature extremes better than steel mounts at a fraction of the weight

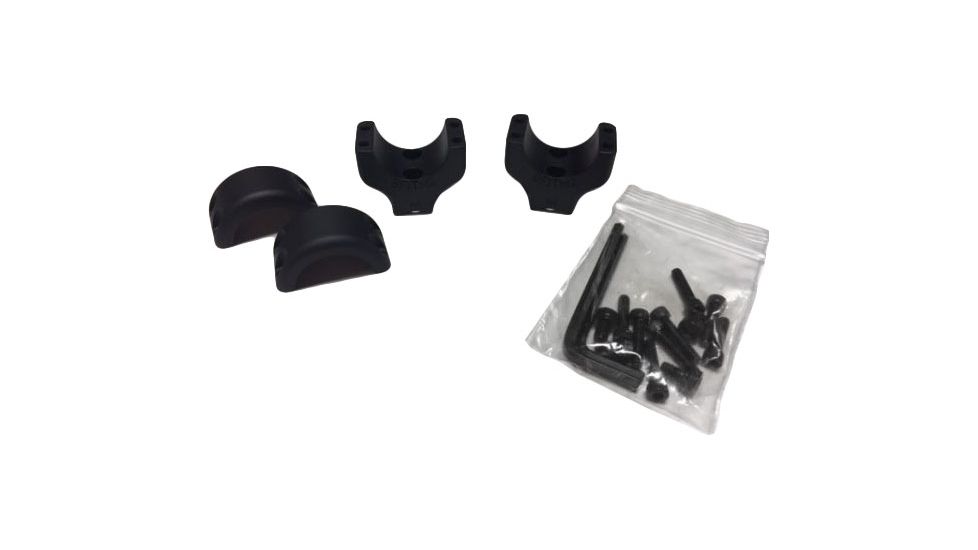

Package Contents:

• DNZ Products Hunt Masters Series 2 Two Piece Scope Mounts
