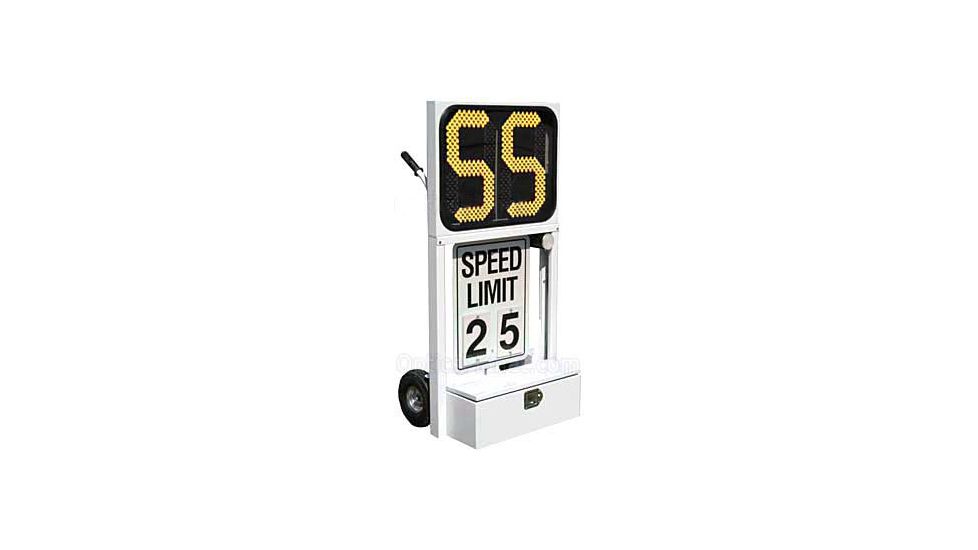

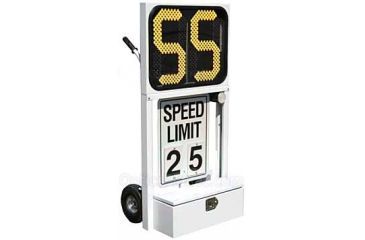

Name: Decatur OnSite 200 Radar Speed Display Sign w/ K-Band Directional Antenna &amp; LED Display in KPH or MPH
Brand: Decatur Electronics
SKU: DT-RG-ONSTE200
Availability: Discontinued

Product Info for Decatur OnSite 200 Radar Speed Display Sign w/ K-Band Directional Antenna & LED Display in KPH or MPH

The Decatur OnSite 200 Radar Speed Display Sign w/ K-Band Directional Antenna & LED Display in KPH or MPH is here at Opticsforyou.com and as usual we offer great deals !

Purchase your new Decatur OnSite 200 Radar Speed Display Sign w/ K-Band Directional Antenna & LED Display in KPH or MPH from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

Decatur Electronics is proud to introduce the new, improved Decatur OnSite 200 Dolly Speed Radar Sign / Trailer. The portable, low cost Decatur OnSite 200 Radar Speed Display Sign is designed for easy positioning in areas where speeding is a concern. Decatur OnSite 200 Dolly Radar Sign is accurate, from five miles per hour, and easily read at a glance. Children are easily seen around the radar sign, while the wide base is built to withstand adverse weather conditions.

With Decatur Radar Sign OnSite-200, oncoming drivers will not lose site of pedestrians while keeping an eye on their speed. Decatur On Site 200 Dolly Radar Trailer features the 18" high, full matrix LED characters, that are readable up to 1,000 feet. In addition, Decatur On-Site 200 Radar Speed Display Sign is protected by a smoked, non-glare Lexan shielding for maximum security and optimal viewing conditions. This Decatur Radar Sign also offers K-Band Directional Radar Antenna, the 10" pneumatic tires, the dust-proof and waterproof storage box, and the rubber grips to easily move the Decatur OnSite 200 Speed Trailer into position for quick and effective traffic safety enforcement.

Decatur On Site 200 Dolly Radar Sign is compatible with Decatur Stat Pak - Traffic Data Logger for Police Radar, LIDAR, Radar Trailers. Decatur Stat Pack EZ Stats Traffic Statistics Package includes EZ Stat Module, 110VAC/4.5VDV Adapter, EZ Stat Installation CD and EZ Stat Operators Manual. Decatur Stat Pak allows to collect Traffic Speed Data and generate an easy to read and analyze Traffic Speed Survey Report. Decatur StatPak Traffic Data Logger - serial module which gathers speed data samples from Decatur SPEEDTRAK Radar, Decatur Genesis II Police Radars, Decatur Radar Trailers (Decatur OnSite 200 Speed Radar Sign, Decatur SpeedTrak SST Radar Trailer) and LIDAR and directly interfaces with a PC to provide statistical data in an easy to use format. Just plug Decatur EZ Stat into Data Logger port (use adapter if necessary) and Decatur Stat Pack will begin recording speeds. Using Decatur Stat Pk you can generate and print a Traffic Speed Survey Report with all necessary statistical data in an easy to read format. Decatur Stat-Pack 4-Megabit Memory's capacity is approximately 130,000 counts.

Specifications for Decatur Dolly Speed Radar Sign OnSite-200:

Frame:	Decatur OnSite 200 Radar Trailer is constructed from 2.5" x 1.5" C Channel steel. The frame is made from 12-gauge A36 hot rolled steel. The storage boxes are made from 14-gauge A36 hot rolled steel.
Size:	The unit dimensions are 24" deep x 57" high x 28" wide.
Paint:	The paint is oven-baked, powder-coated glossy white.
Tires:	The tires are 10" pneumatic tires
Weight:	The entire unit weighs 135 lbs.
LEDs:	High output 7-Segment LEDs with a wide-viewing angle of 70-degrees.
Luminous Intensity:	1300 mlm (millilumen), readable from 1000 ft.
Display Size:	The display is 28" Wide x 2.50" Thick x 22" High.
Window:	The window is 0.1875" thick, Lexan solar grade plastic front.
Characters:	The sign contains two characters. (3rd Digit optional Km/h).
Character Size:	Each Character is 18" High x 10" Wide.
Controls:	The control box is a self-contained dust and waterproof environment.
Power:	A power on/off switch is located in the lower storage compartment.
Battery:	There are two 12-volt, SLA batteries located in lower storage compartment. A smart charger is included with a waterproof 110 V outlet.
Battery Life:	A continuous draw using LED's and Radar will last 2 days.(varies on applications)
Type:	The Radar is an K-Band Directional Antenna
Frequency:	K-band 24.150 Ghz + 50Mhz
Beam Width:	12 degrees
Detection Range:	1500 ft
Accuracy:	+/- 0.1 MPH
Speed Sign Size:	The speed sign is 24" high x 18" wide.
Characters:	The speed limit exchangeable numbers are 7" High x 5" Wide.
Materials:	The speed sign and characters are constructed of Aluminum.
Interface Capability:	The SI-3 in Decatur OnSite 200 Radar Trailer is compatible with the Decatur Electronics EZ-Stat Traffic Statistics Program (Decatur Stat Pak ).
One Year Warranty:	Decatur On Site 200 Dolly Speed Radar Display Sign comes with a one-year warranty on all parts and labor. Warranty shipment costs are not pre-paid. The warranty does not include repair of physical damage from misuse or vandalism.

Features of Decatur On-Site 200 Radar Speed Display Signs:

The K-band Directional antenna acquires the strongest of the faster moving vehicles.
The slim profile of Decatur OnSite 200 Radar Trailer stands apart from other dolly radar signs on the market.
The dust-proof and waterproof storage box houses the control box, on/off switch, batteries, and also offers storage for the "Your Speed" or "School" signs and the 0-9 speed limit digits.
With automatically adjusting LEDs, even during inclement weather, violators can plainly see when they exceed the speed limit.
Decatur OnSite 200 Speed Radar Sign comes with a one-year warranty on all parts and labor. The warranty does not include repair of physical damage from misuse or vandalism.
The rubber grips help you to easily move Decatur OnSite 200 Radar Trailer into position for quick and effective traffic safety enforcement.
The 10" pneumatic tires allow easy movement over different types of terrain.
