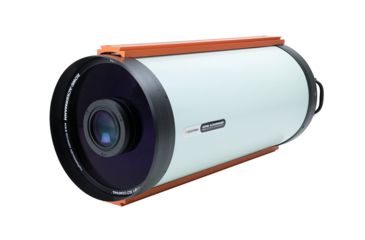

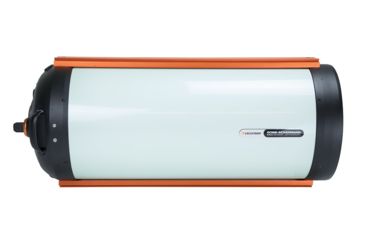

Celestron Telescope RASA 36cm - OTA Only, f/2.2

The Celestron Telescope RASA 36cm - OTA Only, f/2.2 is here at Opticsforyou.com and as usual we offer fantastic deals !

Purchase your new Celestron Telescope RASA 36cm - OTA Only, f/2.2 from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

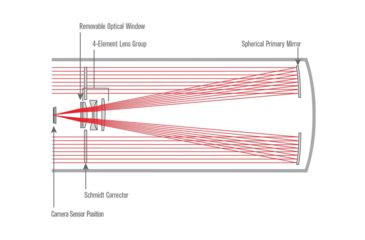

The Rowe-Ackermann Schmidt Astrograph (RASA), is a cost-effective optical system for space surveillance, Space Situational Awareness (SSA), other scientific applications, and advanced wide field astroimaging. It offers unprecedented value in aperture, speed, field of view, and optical performance. The RASA design has a convenient external prime-focus image capture location with a flat focal plane, providing small spot sizes to the edge of a wide field. The result is images free of optical defects like field curvature, off-axis coma, and astigmatism.

The 36 cm aperture version is the largest RASA Celestron manufactures; it is the biggest and fastest (f/2.2) optical instrument of its kind available off-the-shelf. Unlike most telescopes, which only focus visible light (400-700 nm), the RASA 36 cm focuses an extended spectral range (400-900 nm), allowing a brighter signal to be detected by a camera sensor. The RASA 36 cm also features a redesigned focus system, which ensures easy and stable focusing.

RASA 36 cms ample back-focus distance (77.5 mm) accommodates a wide variety of imaging sensors. A custom camera adapter can be added for a field of view up to 4.4 degrees.

Important freight requirement RASA 36 is a professional-caliber, high-precision instrument. It is manufactured and aligned to an exacting standard to provide exceptional optical performance. The telescope has been packaged to ensure it retains alignment and resulting performance during transport. However, due to the weight, size, and known stresses of shipping via parcel service, Celestron has determined that the ideal transport is a palletized delivery via LTL truck freight. For all domestic deliveries, Celestron will ship via this method. We also require this shipping method for all deliveries from Celestron dealers to end customers.

Features of Celestron Telescope RASA 36cm - OTA Only, f/2.2:

• A breakthrough 36 cm aperture
• f/2.2 optical system designed for professional applications that require both a wide field of view and resolution
• such as space surveillance and other scientific applications
• 4-element lens group utilizes extra-low dispersion (ED) glass for images free of false color
• coma
• and field curvature
• the Rowe-Ackermann Schmidt Astrograph (RASA) 36 cm is also an excellent choice for advanced astroimaging
• 60 mm optimized image circle maintains pinpoint stars to the far corners of the largest available sensors
• Extended spectral range takes advantage of sensor response in the 700-900 nm range
• allowing a brighter overall signal to be detected
• Redesigned focusing system minimizes focus shifting or other unwanted motion of the primary mirror
• enabling easy and stable focus
• Celestrons proprietary XLT coatings
• consisting of high-transmission multi-coatings for lenses and high reflectivity aluminum coatings
• ensure good light throughput for the optical system
• Integrated cooling fan helps optics cool down to ambient temperature and pulls air through vents with micromesh to prevent dust ingress
• Dual dovetail bars offer flexibility to mount the optical tube and conveniently attach additional accessories
• Accomodates CGE/Losmandy style dovetails.
• Two sets of 2x threaded insert holes in the rear cell provide additional mounting options
• Move and mount your optical tube with ease with carrying handles on the rear cell
• Although not normally needed
• there are 3x sets of push-pull screws to adjust the lens group to achieve optical alignment for the entire system
• Includes M48 camera adapter
• Motor system specifically designed for the RASA 36 cm focuser is manufactured by Starlight Instruments
• Optical Design: Rowe-Ackermann Schmidt Astrograph
• Aperture: 355.6mm (14")
• Focal Length: 790mm (31.1")
• Focal Ratio: f/2.2
• Central obstruction diameter: 158mm (6.22")(44% of aperture diameter)
• Light Gathering Power (Compared to human eye): 2581X
• Resolution (Rayleigh): 0.39 arc seconds
• Resolution (Dawes): 0.36 arc seconds
• Image circle: 60.1mm (2.36")
• 4.4 degree
• Useable field: 70mm (2.75")
• 5.1 degree
• only minimal performance loss at edge of FOV
• Wavelength range: 400 900 nm
• Spot size:Included Accessories:
• 48 mm camera adapter
• fan battery pack

Package Contents:

• Celestron Telescope RASA 36cm - OTA Only, f/2.2
• 48mm (1.89") camera adapter fan battery pack
