Celestron Infiniview - LCD Digital Microscope
Tap Tap to Zoom
Product Discontinued by Manufacturer
Celestron Infiniview - LCD Digital Microscope has been discontinued by Celestron and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Microscopes yourself to try and find the perfect replacement for you!
Product Info for Celestron Infiniview - LCD Digital Microscope
The Celestron Infiniview - LCD Digital Microscope is here at Opticsforyou.com and as usual we offer fantastic discounts !
Purchase your new Celestron Infiniview - LCD Digital Microscope from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

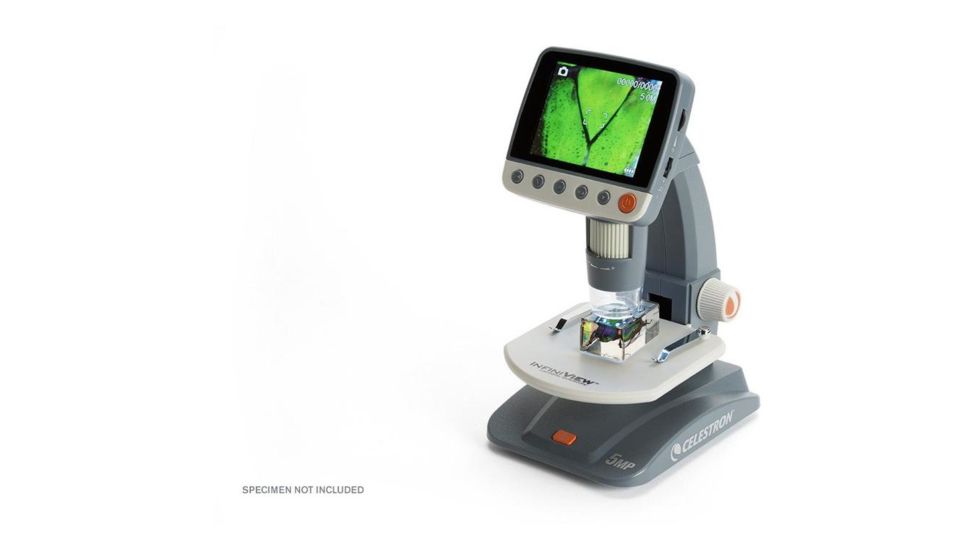

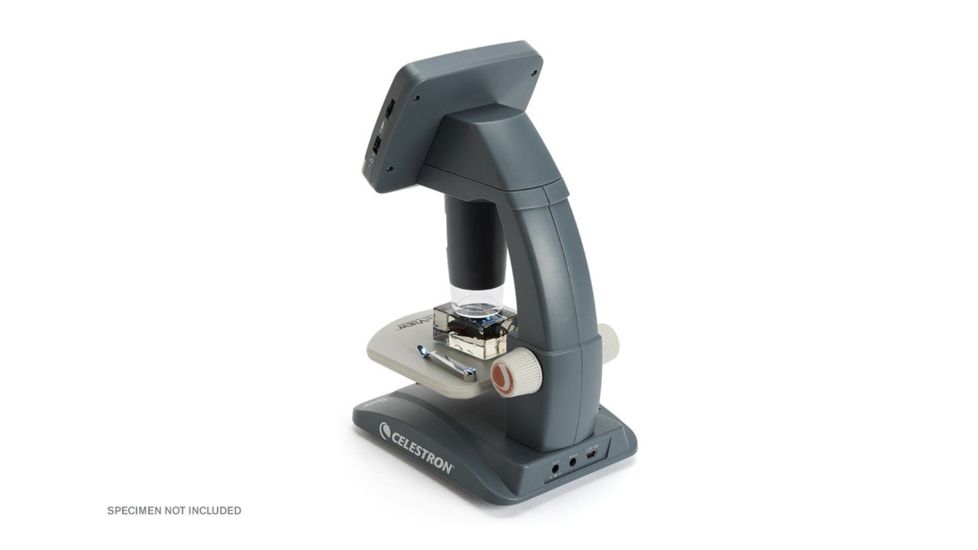

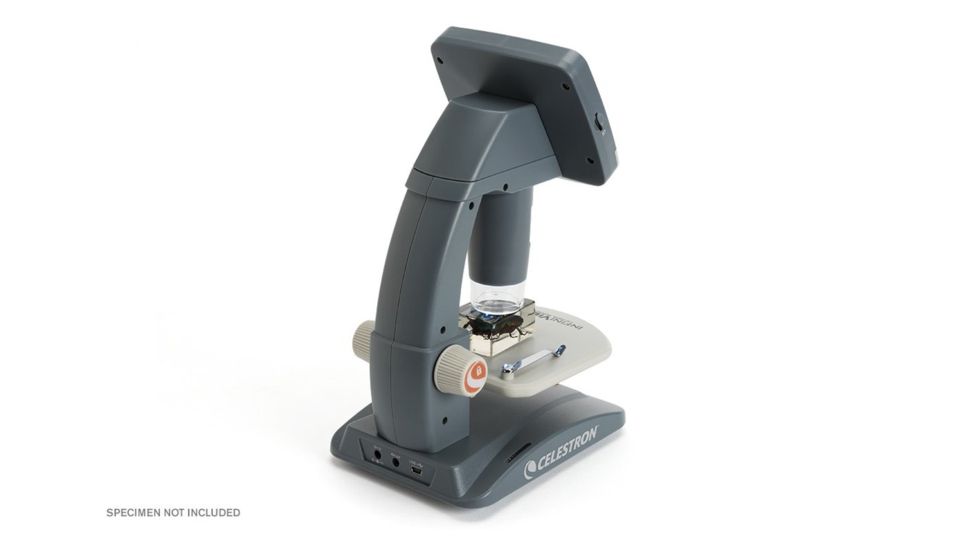

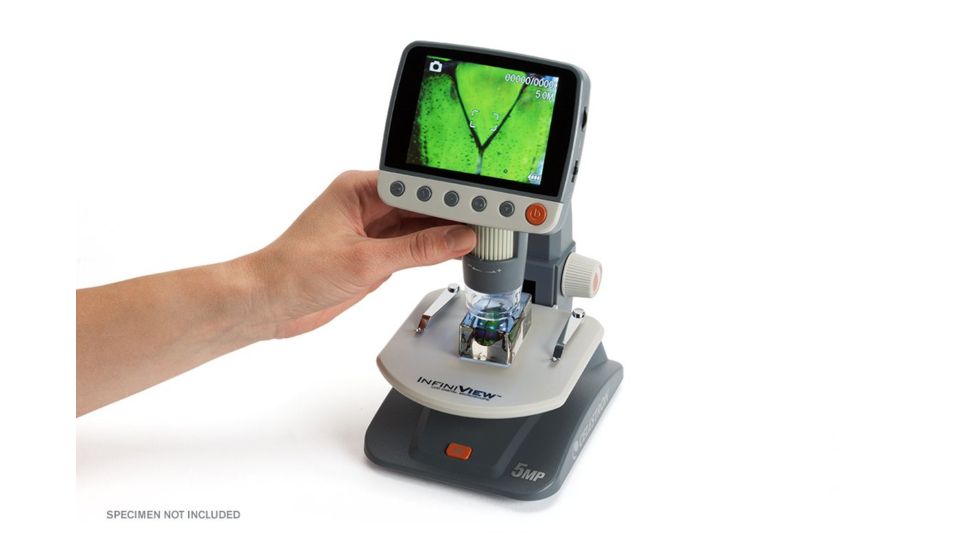

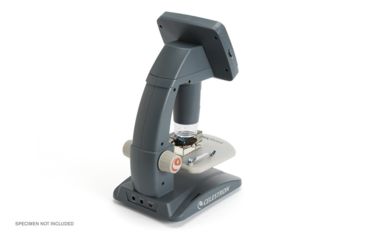

The professional-level Celestron InfiniView Digital Microscope is a versatile microscope that is just as useful out in the field as it is in the lab. With a 3.5 TFT LCD screen, onboard software, rechargeable lithium-ion battery, and Micro SD card slot, you can enjoy up to 2 hours observing and capturing images in the field. The grab-and-go microscope is lightweight and easy to carry. Back in the lab, plug InfiniView into an AC outlet and your computer via USB 2.0. The Portable Capture Pro software allows you to take accurate measurements of your specimens. Depending on your screen size, you can achieve up to 200x magnification for up-close viewing of traditional slides or 3D specimens like stamps, coins, bugs, plants, rocks, skin, gems, circuit boards, and more. Great for the discriminating hobbyist or professional, the InfiniView LCD Digital Microscope is well suited for jobs such as entomology, industrial quality control and inspection, medicine, scientific research, and forensics, just to name a few. Included Accessories USB Cable 2.0 AC Adapter TV out/AV cable Celestron Portable Capture Pro Software CD with measuring feature Calibration Ruler Lithium Ion battery for portable use Quick Setup Guide Instruction manual on included CD On board (LCD) lanGauges supported - English, German, French, Spanish, Italian, Portuguese, Japanese, Chinese Simple, Chinese traditional On Computer lanGauges supported - English, German, French, Spanish, Russian, Italian, Portuguese, Dutch, Polish, Japanese, Korean, Chinese For use in Europe, this microscope is also available with a multiplug. Click here for product page.
Specifications for Celestron Infinite-View Digital LCD Microscope:
| Dimensions: | 149mm x 104mm x 227mm (5.8” x 4.1” x 8.9”) |
| Weight: | 56 oz.(1600 grams) |
| Stage: | Adjustable height; 4.375” x 4.375” x .375” (111.1mm x 111.1mm x 9.5mm) |
| Digital Camera: | 5MP CMOS Sensor, 10x magnification in lieu of eyepiece |
| Shutter Speed: | 1 sec. to 1/1000 sec. |
| Lens: | 5 element IR Cut (Infrared reducing) high quality glass lens, |
| EFL (Effective Focal Length): | 15.8mm |
| Powers: | 20x to 200x (800x with digital zoom) |
| Focuser Range: | 10mm to infinity |
| Illuminator: | Upper – 8 white adjustable LEDs LCD |

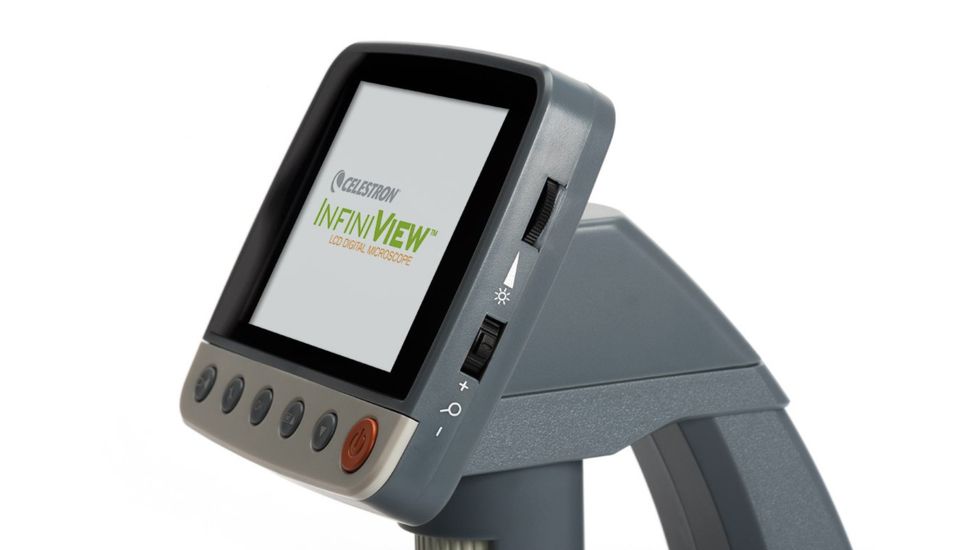

| Monitor: | 3.5” (90 mm) TFT LCD with 4x Digital Zoom — 320 x 240 pixels, 4-3 ratio |
| Image Stabilization: | Flicker Control 50Hz/60Hz Still |
| Image Resolution: | 5MP, 3MP, 1.3MP, VGA (12MP interpolation) |
| Video Capture Resolution: | VGA, 30fps |
| On Board Battery: | 800mAh Lithium Ion Battery- 2 Hours continuous use |
| Memory: | Micro SD card slot, supports up to 32G card- (card not included) |
| PC connection: | 2.0 USB- downloading images-charging optional |
| Measuring Software: | Robust measuring software with note taking capabilities. Calibration tool included. |
| OS systems supported: | Windows |
| On board (LCD) Languages supported: | English, German, French, Spanish, Italian, Portuguese, Japanese, Chinese Simple, Chinese traditional |
| On Computer languages supported: | English, German, French, Spanish, Russian, Italian, Portuguese, Dutch, Polish, Japanese, Korean, Chinese |
| TV Output: | AV cable for external monitor |
| Software: | Proprietary Celestron- CapturePro software |
| AC Adapter: | Input Universal 100 to 240Volt 50/60HZ (US version only) |
Features of Celestron Infiniview - LCD Digital Microscope:
- True 5MP sensor enables you to capture and save high-resolution images of your specimen
- Rechargeable Lithium-Ion battery gives the user portability -- no need for external power
- 5-Element IR cut high-quality glass lens ensures sharper images
- Full color 3.5" TFT LCD screen with onboard software makes the unit independent from your PC
- 4x to 160x powers in portable mode and up to 800x when connected to PC

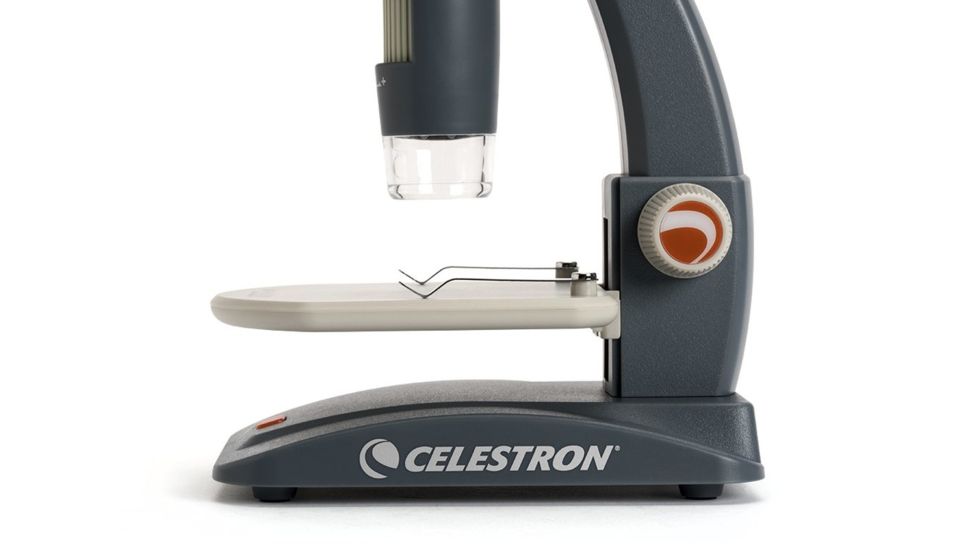

- Adjustable stage makes looking at different sized objects easier
- TV out for display on large monitor for classroom or lab environment
- Computer software option has robust measuring feature
- Shutter trigger on base to ensure no shaking when images are captured
- Connect via USB to both Windows and Mac systems
Package Contents:
- Celestron Infiniview - LCD Digital Microscope
