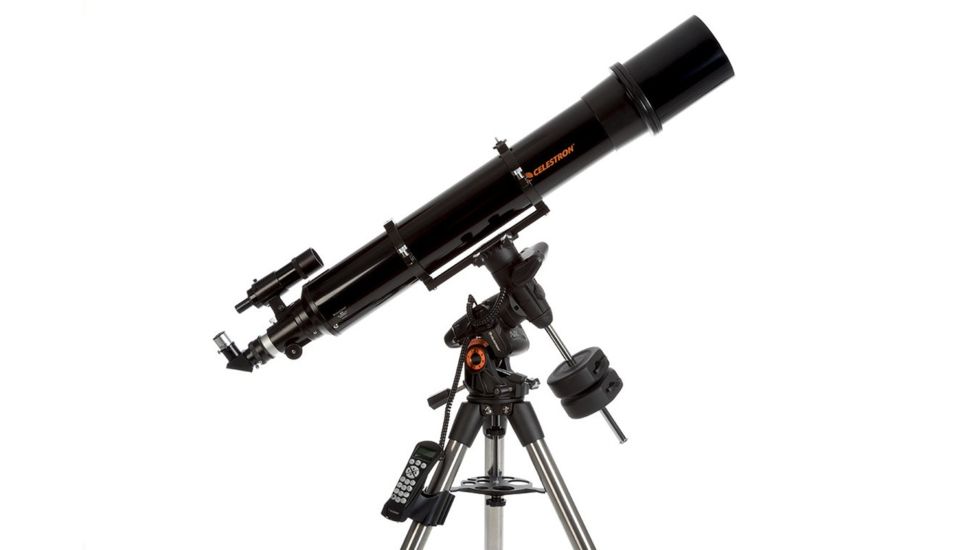

Celestron Advanced VX 6in Refractor Telescope 22020
Tap Tap to Zoom
Code: CI-TS-22020
MPN: 22020
UPC: 050234220200
Product Info for Celestron Advanced VX 6in Refractor Telescope
The Celestron Advanced VX 6in Refractor Telescope is here at Opticsforyou.com and as usual we offer great prices and discounts 23% Off!
Purchase your new Celestron Advanced VX 6in Refractor Telescope from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.
Ideal for planetary imaging and brighter deep-sky objects, many astroimagers say that there is no superior option to the Celestron VX Advanced Refractor 6in Telescope 22020. Unlike Schmidt-Cassegrain or Newtonian telescopes that have a secondary mirror, this Refractor Telescope from Celestron offers no obstruction of the aperture, giving you the highest possible contrast. The setup of the Celestron VX Advanced 6in Telescope features an f/8 objective lens, which can be paired with Nightscape CCD cameras to image brighter deep-sky objects or our NexImage 5 Solar System Imager to create dazzling images of the planets. The mount on the Celestron Advanced VX 6in Refractor Telescope was specifically designed to provide optimum imaging performance for smaller telescopes. Now your smaller telescope can take advantage of All-Star Polar Alignment and autoguider support. With this Celestron Telescope you'll be able to track through long exposures using permanently programmable periodic error correction. Image across the meridian without doing a meridian flip, so you can seamlessly image the best part of night sky. The Celestron Advanced VX 6in Refractor Scope features significantly larger base castings than our previous design, improving stability under heavier loads. Improved motors offer more torque and can handle slight load imbalances with ease.
Specifications for Celestron Advanced VX 6in Refractor Telescope:
| Optical Design: | Refractor |
| Aperture (mm): | 150 mm (5.91 in) |
| Focal Length (mm): | 1200 mm (47 in) |
| Focal Ratio: | 8 |
| Eyepiece 1 (mm): | 20 mm (0.79 in) |
| Magnification 1: | 60 x |
| Finderscope: | 9x50 |
| Optical Tube: | Aluminum |
| Fastar Compatible: | No |
| Tripod: | Adjustable, Stainless Steel |
| Tripod Legs: | 2" |
| Weight (lbs): | 71 lbs (32 kg) |
| Power Supply: | Car battery adapter |
| Highest Useful Magnification: | 354 x |
| Lowest Useful Magnification: | 21 x |
| Limiting Stellar Magnitude: | 13.4 |
| Resolution (Rayleigh): | 0.93 arc seconds |
| Resolution (Dawes): | 0.77 arc seconds |
| Light Gathering Power (Compared to human eye): | 459 x |
| Secondary Mirror Obstruction: | 2.2" in (56 mm) |
| Secondary Mirror Obstruction by Diameter: | 37 % |
| Secondary Mirror Obstruction by Area: | 14 % |
| Optical Tube Length: | 51" in (1295 mm) |
| Optical Tube Weight: | 19 lbs (8.62 kg) |
| EQ Mount Weight: | 17 lbs (7.71 kg) |
| Tripod Height (Max): | 64" in (1626 mm) |
| Tripod Height (Min): | 44" in (1118 mm) |
| Tripod Weight: | 18 lbs (8.16 kg) |
| Counterweight Bar: | 12" Length, 0.75" Diameter lbs (5.44 kg) |
| Counterweights: | 2 x 11 lbs |
| Latitude Range: | 7-77 deg |
| Motor Drive: | Low cog DC Servo motors with encoders, both axes |
| Slew Speeds: | Nine slew speeds, 4 deg/sec maximum |
| Tracking Rates: | Sidereal, Solar and Lunar |
| Tracking Modes: | EQ North and EQ South |
| Alignment Procedures: | 2-Star Align, Quick Align, 1-Star Align, Last Alignment, Solar System Align |
| Communication Ports: | 2x AUX ports, Autoguider port, RS-232 port (on hand control) |
| Computer Hand Control: | Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons |
| Database: | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Power Requirements: | 12V DC 3.5A (tip positive) |
| Internal Clock: | Yes |
| GPS: | Optional SkySync GPS Accessory |
Features of Celestron Advanced VX 6in Refractor Telescope:
- 6” (150mm) f/8 objective lens is perfect for high contrast planetary views
- 2” Focuser allows use with 2” and 1.25” accessories
- Integer gear ratios and permanently programmable Periodic Error Correction eliminates recurring track errors from the worm gear.
- Autoguider port for long exposure imaging
- New motors offer improved tracking performance & provide more power to overcome load imbalances
- Updated industrial design offers more rigidity, less flexure and improved aesthetics
- New design allows viewing or imaging across the meridian without interference from the motors housings
- Improved latitude range. Can be used between 7 – 77 degrees latitude.
- NexStar+ hand control offers multiple lanGauge programming (English, French, Italian, German, Spanish)
Package Contents:
- Celestron Advanced VX 6in Refractor Telescope
