Brother Mobile Solutions Compact 203dpi Desktop Thermal Printer
Tap Tap to Zoom
Product Discontinued by Manufacturer
Brother Mobile Solutions Compact 203dpi Desktop Thermal Printer has been discontinued by Brother Mobile Solutions and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Printers yourself to try and find the perfect replacement for you!
Product Info for Brother Mobile Solutions Compact 203dpi Desktop Thermal Printer
The Brother Mobile Solutions Compact 203dpi Desktop Thermal Printer is here at Opticsforyou.com and as usual we offer unbelievable prices !
Purchase your new Brother Mobile Solutions Compact 203dpi Desktop Thermal Printer from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

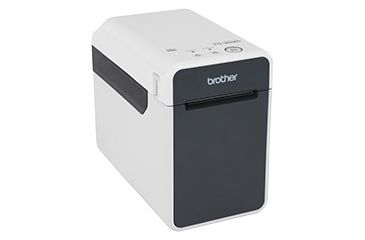

The Brother Mobile TD2020 Thermal Desktop Printer has been developed to be the ideal way to print retail labels, tags and receipts. Designed for use in almost any retail work space, this Receipt Printer from Brother Mobile Solutions is among the most compact and fastest 2.2in wide desktop thermal printers for retail applications. At 203dpi, it prints price, mark-down, product identification, returns and shelf-edge labels quickly at up to 6ips. The Brother TD2020 Desktop Printer also prints tags and receipts for kiosk and POS applications. An innovative drop-in roll, spindle-less design helps make loading easy with existing or standard converted media. Windows 8/7/XP drivers (and ZPL II compatibility) helps with integration into existing retail solutions. The Brother TD2020 Receipt and Label Printer comes with Brother label design and print software application.
Specifications for Brother Mobile Solutions Receipt Printer - TD-2020:
| Housing Color: | White with Gray Front Panel |
| Maximum Media Width: | 2.48" (63 mm) |
| Maximum Printing Speed: | Up to 6 ips (152.4 mm/sec) With AC Adapter |
| Maximum Print Resolution: | 203x203 dpi |
| Printing Method: | Raster, Text (Template), Command (ESC P) |
| Operation Modes: | Raster, Template 2.0, ESC P |
| Cutter: | None |
| Display: | None |
| Mobile Device Compatibility: | Windows CE 6.0, Windows Mobile 5.0/6.x, Android 2.2 or Later, iOS 4.3 or Later |
| Maximum Print Width (inches): | 2.2" (56 mm) |
| Minimum Print Length: | 0.5" (12.7 mm) |
| Maximum Label Length: | 39.37" (1K mm) |
| Maximum Resolution (dpi): | 203 |
| Media Sensor & Position: | Fixed Center Transmissive (Gap), Fully Adjustable (Left/Right) Reflective (Mark) |
| Media Types: | Direct Thermal Label, Tag or Receipt (Paper or Synthetic) |
| Maximum Roll Size (outside diameter): | 5" (127 mm) |
| Media Thickness - With Adhesive: | 7 mil (0.170 mm) |
| Media Thickness - Without Adhesive: | 5.3 mil (0.135 mm) |
| Control Panel: | 3 Push Button Keys & 2 LED's |
| Status Indicator: | LED |
| Printer Emulation: | ESC P |
| Internal Fonts: | Bitmap - Helsinki, Letter Gothic Bold, Gothic, Outline - Helsinki, Letter Gothic Regular, Gothic, Brussels |
| Internal Font Sizes: | ESC P - 16, 24 & 32 dots Bitmap, 1-400 dots Outline |
| Internal Font Styles: | Bold, Italic, Underline, Outline, Shadow, Outline+Shadow, Vertical |
| Memory: | 32 MB RAM, 16 MB Flash |
| Memory for Transferred Data (number): | 6 MB Internal Flash |
| Symbols for Windows ( No. of Clip arts in P-touch Editor): | 1379 |
| Multiple Copies: | Through PC |
| Mirror Printing: | Through PC |
| Vertical Printing: | Through PC |
| Rotate Printing: | Yes |
| Date/Time Stamp: | Through PC |
| Bar-codes Types: | Linear - Code39, Code 93, Code128, ITF, UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI, Codabar (NW-7), Postnet 2D |
| Microsoft Add-ins: | Office 2000/2003/2007 (Word, Excel & Outlook) |
| Database File Compatibility: | .csv, .txt, .mdb, .xls and Microsoft SQL Server |
| Software: | P-touch PT-Editor 5.0, Transfer Manager 2.1, Update Software |
| Networking: | None |
| Interface: | USB 2.0 (Full Speed) & Serial (RS-232C) |
| Compatibility: | Windows 8/7/XP, Windows Vista |
| Operating System: | Windows 8/7/XP, Windows Vista |
| Carton Contents: | Printer, AC Adapter, Power Cord, USB (Mini) Cable, CD, Documentation |
| Housing Dimensions: | 4.33" (w) x 6.77" (h) x 8.46" (d) |
| Weight: | 2.91 lbs (1.32 kg) |
| Power Supply: | 100-240 VAC, 50/60 Hz, 1.2 A External AC Adapter (PA-AD-001) |
| Power Switch: | Digital |
| Energy Star: | Yes |
| Warranty: | 2 Years Limited Warranty |
Features of Brother TD2020 Desktop Receipt Printer:
- High Speed Printing - Prints up to 6ips in 203dpi print resolution
- Small Size, But Big on Performance - Although these printers are among the smallest desktop thermal printers in their class, they also lead in performance over many 203 dpi print resolution desktop thermal printers
- Ergonomic Design - Uses an innovative spindle-less design that accepts labels, tags or receipt media with virtually any core size for a true drop-in media roll loading experience on a desktop, cart or even mounted to a wall
- Adjustable Edge-to-Edge Media Sensor - Flexibility to detect and print on more types of existing thermal media to help avoid converting custom media
- Complete Label Printing Solution - Comes with the full version of the Brother P-touch Editor software application with advanced design tools and printing features
- Print From a Database - Helps save time and increase accuracy by printing labels, tags and receipts linked directly to Microsoft SQL Server, Access or Excel database files
- Two Year, "At your side" Limited Warranty - As a commitment to reliability, the entire label printer is covered under a two year limited warranty, including the print head no matter the amount of media you print every day
Package Contents:
- Brother Mobile TD2020 Thermal Desktop Printer
- AC Adapter
- Power Cord
- USB (Mini) Cable
- CD
- Documentation
