ATN OTS-X-F670 Heat Seeking Monocular - 640x480, 70mm, 30Hz has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.

Product Info for ATN OTS-X-F670 Heat Seeking Monocular - 640x480, 70mm, 30Hz

The ATN OTS-X-F670 Heat Seeking Monocular - 640x480, 70mm, 30Hz is here at Opticsforyou.com and as usual we offer fantastic deals $200.00 Off!image

Purchase your new ATN OTS-X-F670 Heat Seeking Monocular - 640x480, 70mm, 30Hz from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

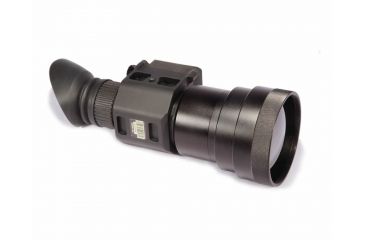

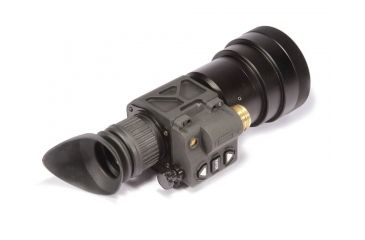

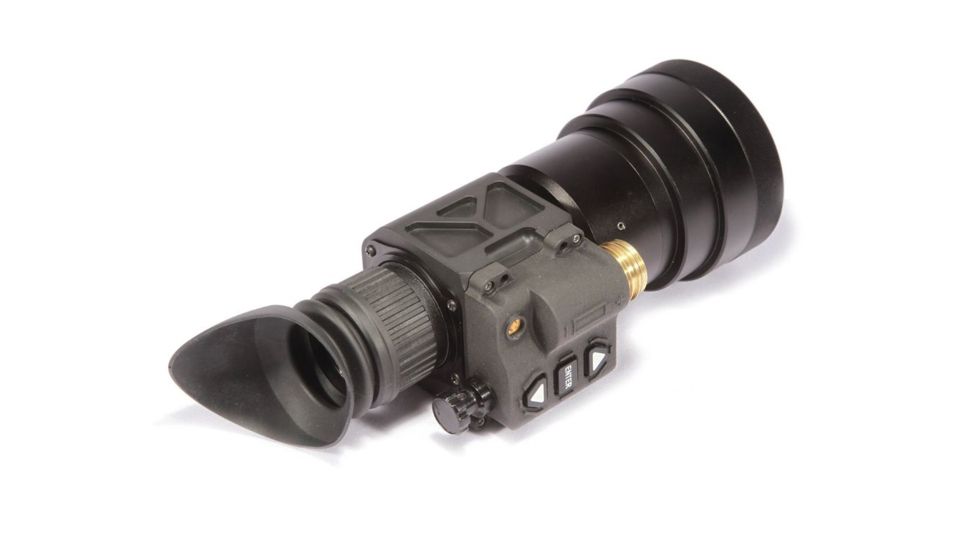

The ATN OTS-X F670 3.5x 30Hz Thermal Imager TIMNOTSXF670 is designed to be a versatile, compact, lightweight yet rugged thermal viewer that can be easily carried in a cargo pocket for Law enforcement and Sportsmen alike. This Heat Seeking Scope from ATN is one of the most affordable thermal viewers on the market that includes a full 640x480. One of the most unique features of the ATN F670 OTSX Heat Seeking Thermal Scope is the ability to interchange the objective lens so you can have multiple magnifications based on your need or mission.

Specifications for ATN OTS-X-F670 3.5X (30Hz) Thermal Imaging Viewer:

Sensor (microbolometer): 640 x 480
Type: Uncooled
Material: Vanadium oxide (VOx)
Image Size (output resolution): 800x600
Frame rate: 30 Hz
Video output: Analog RS-170
Lens: 70 mm
Display: Color OLED matrix, SVGA< 800x600
Thermal Sensitivity: <50mK
Spectral Response: 7-14 um
Field of View: 9°
Eye Relief: 27 mm
Diopter Adjustment: -1.5
Optical Magnification: 3.5X
E-Zoom: 7x, 14x, 28x
Human Detection: 1800
Human Recognition: 700
Human Identification: 460
Vehicle Detection: 3800
Vehicle Recognition: 1400
Vehicle Identification: 1000
Polarity control: White hot / Black hot / Multiple Color Modes
Start up time: <4 sec
Waterproof: Yes
Battery type: 1 x CR123A battery type
Battery Life: 2+ hrs
Weight: 1.75 lb /800 gr
Dimensions: 177 x 76 x 83 mm /7x3x3.3"
Warranty: 1 year

Features of ATN Thermal Image OTS X F670 Scope:

  • Resolution 640x480
  • Ergonomic Design
  • Fast Imaging (30hz)
  • Compact Rugged Construction
  • Interchangable Optics
  • Variable Geometry Display
  • E-Zoom
  • Digital Brightness Control
  • Icon Based Menu System
  • Color Modes
  • Black/White Polarity
  • VOx Vanadium Oxide Detector
  • 800x600 Display
  • Video Output
  • 1 Year Warranty

Package Contents:

  • ATN OTS-X F670 3.5x 30Hz Thermal Imager TIMNOTSXF670
