Product Discontinued by Manufacturer

Armasight IRIS Wireless Head Mounted Display has been discontinued by Armasight and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Thermal Imaging Accessories yourself to try and find the perfect replacement for you!

Product Info for Armasight IRIS Wireless Head Mounted Display

The Armasight IRIS Wireless Head Mounted Display is here at Opticsforyou.com and as usual we offer fantastic discounts !image

Purchase your new Armasight IRIS Wireless Head Mounted Display from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

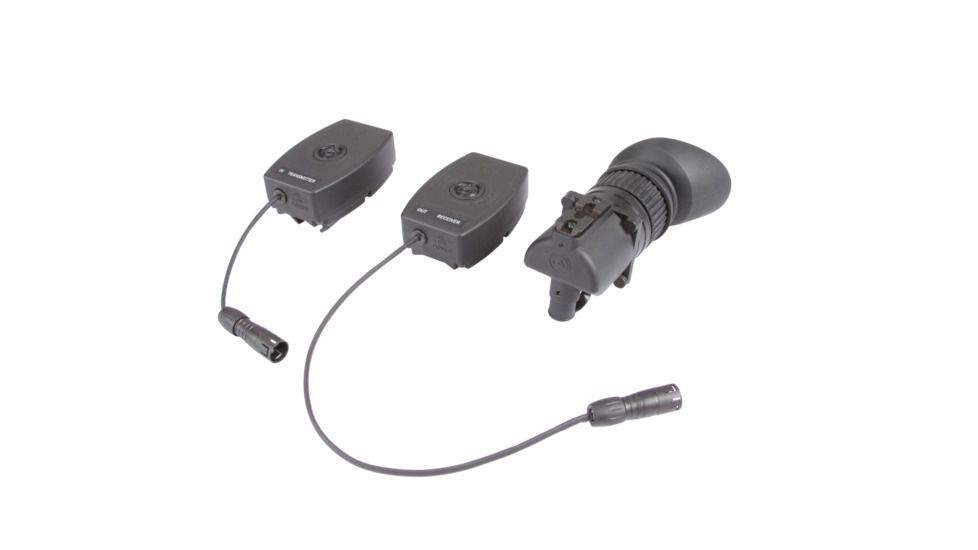

Armasights Iris Head Mounted Display (Iris HMD) is a remote heads-up display for thermal and digital imaging systems. The Iris HMD allows the operator to view the system display without looking through the eyepiece. This permits the operator to remotely view the imagery and target acquisition data discretely from a concealed position during surveillance and enemy engagement. The Iris HMD is ideally suited for use with medium and heavy machine guns where significant weapon recoil is present. The Iris HMD is also the perfect tool for fighting in builtup areas (FIBUA) where sighting and engaging the enemy around corners, in tunnels, through windows and into other confined spaces with minimum exposure is paramount. The Iris HMD can also be used in conjunction with proximally located remote weapon stations on armored vehicles or static emplacements where operators require concealment for covertness or safety in a hostile environment.

Weighing in at 150g, the Iris Head Mounted Display is small and lightweight with very low power consumption. It can operate continuously on rechargeable lithium batteries for up to 2 hours. The Iris HMD interface is compatible with most in-service US Army/Navy head and helmet mounts with the selection of the appropriate adapter. Once installed, the Iris HMD can be adjusted for either left or right eye use. Armasights optional ergonomic, fully adjustable padded head mount assembly allows the Iris HMD to be flipped out of the line of sight when necessary or rapidly removed. The Iris Head Mounted Display is waterproof for use in all weather conditions. Operators adjustable settings include display brightness, diopter adjustment and PAL/NTSC selection.

The Armasight Iris HMD is the right tool for enhancing operational flexibility and capability for the 21st century warrior on the tactical battlefield.

Features of Armasight IRIS Wireless Head Mounted Display:

  • FEATURES
  • Head or helmet-mountable flip-up display
  • Left or right eye use
  • High Performance OLED display
  • Manual display brightness control
  • Video-In analog PAL/NTSC standard
  • cable included
  • Self contained highly efficient power supply
  • Waterproof
  • MIL-SPEC fully compliant
  • Specifications
  • Transmission Frequency: 2.4 GHz
  • Working Range: Up to 10m
  • Display Type: OLED SVGA
  • Display Resolution: 800x600
  • Display Brightness Adjustment: Yes
  • Eyepice Focal Length: F27
  • Eyerelief: 25mm
  • Exit Pupil Diameter: 14mm
  • Diopter Adjustments: -5 .
  • +5
  • Control Unit Mount Type: Mini-rail
  • Power Supply: BL-5C Rechargeable Lithium Battery (3.7V/ 1000 mAh)
  • Battery Life: 2 hours
  • Indications: On
  • Low Battery
  • Battery Charging
  • Dimensions:
  • Eyepiece Unit: 83x53x40 mm
  • Control Unit: 84x50x27 mm
  • Transmitter: 845036 mm
  • Weight:
  • Eyepiece Unit: 143 g
  • Control Unit: 92 g
  • Transmitter: 94 g
  • Environmental Ratind: Waterproof 1m/30min
  • Operating Temperature: - 20 to + 40C

Package Contents:

  • Armasight IRIS Wireless Head Mounted Display
