Area 419 ARCALOCK Clamp and Barricade Kit 419-ALK-BCADE-KIT w/ Free Shipping

The Area 419 ARCALOCK Clamp and Barricade Kit is here at Opticsforyou.com and as usual we offer fantastic discounts 25% Off!

Purchase your new Area 419 ARCALOCK Clamp and Barricade Kit from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

Area 419 is always looking for ways to improve existing products when They are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, They saw a need to improve this great dovetail technology to something that could be mechanically locked in place instead of just friction. If you have ever tried using a Barricade stop on an existing ARCA rail, youve probably also seen it slide under much pressure.

Specifications for Area 419 ARCALOCK Clamp and Barricade Kit:

Features of Area 419 ARCALOCK Clamp and Barricade Kit

• Clamp Features:
• Proprietary two-stage screw design.
• Clamping screw features two different thread pitches. The coarse 16tpi is used when no tension is on clamp, allowing rapid movement of the clamp vs others on the market. With high speed comes low torque though, so to counteract this as soon as the clamp sees tension it will switch to the 32tpi threads in the knob to give you extra torque when not using on an ARCALOCK rail.
• 1/4 Turn releases the clamp from the detents on the ARCALOCK rail for movement
• One Turn releases clamp to be removed from rail
• Clamp directly bolts to Atlas Bipods using their factory hardware

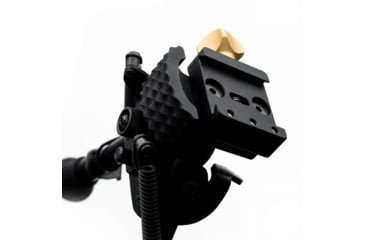

• Barricade stop can either be standalone on the clamp using provided hardware, or sandwiched between an Atlas bipod. Barricade stop does not work with Harris Bipods
• Harris Bipod adapter available immediately, find it here:
• Future plans for a Picatinny rail section that can be bolted to the clamp for use with other bipods.
• Clamp is backwards compatible with standard ARCA rails by removing the two pins, and will still work this way to give you infinite sliding adjustment on the ARCALOCK rail.
• Moving side of clamp is dovetailed on both sides to prevent tilt
• Knob/Screw design prevents the clamp from being able to fall apart if you loosen it too far
• Rail Features:
• Universal rail design is the same footprint as their previous rail. (There were two revisions to the hole spacing, if you have a very early model your hole spacing may change)
• Serrated rail sides interface with their proprietary clamp design to mechanically lock it in place so no movement is possible. Serrations are not sharp, will not damage bags or your hands.
• 65 Locking positions available on the 14? rail
• Rail is backwards compatible with standard Arca accessories, but will not be locking without their clamp
• Serrated fixed rear barricade stop is same as before, but now they include an extension plug to raise it by another 1/2?
• Rail is 14? long giving you the entire length of the stock forend for attachments. The best part is, it still only weighs in at a paltry 5.6oz
• No sharp edges. Every corner is radiused, and every edge is chamfered on the machine. This takes longer to make, but it is the only right way.
• While designed with Manners Composite Stocks in mind, this rail accommodates a multitude of rifle and stock configurations that have an accessible front action screw and some sort of front attachment point(s).
• Spacers for rifle stocks with non-flat forends are available HERE
• Designed to attach to the rifle up to 4 places for maximum strength and stability.
• Extends past the end of most rifle stocks, allowing a further forward bipod attachment, increasing stability.
• Rail comes with 2 Remington 700-style action screws of different lengths to fit the rail to the front action screw attachment point. Some trimming will likely be required.
• A 3/4 paddle bit and drill press may be required for installation of tee-nuts, depending on current rifle configuration.

Package Contents:

• Area 419 ARCALOCK Clamp and Barricade Kit
