UNICO G380 Series Trinocular Microscopes

$85999
Free Shipping
List Price $1,214.00
You Save $354.01 (29%)
Product Code UI-MI-G383M-G383-LED
UPC
SKU G383-LED
Model
Buy with Accessories & Save! (1 per order)
Celestron Microscope Blank Slides - 72 Piece Box 44416 $3.39
Description

UNICO G380 Series Trinocular Microscopes

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

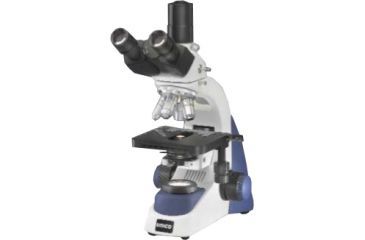

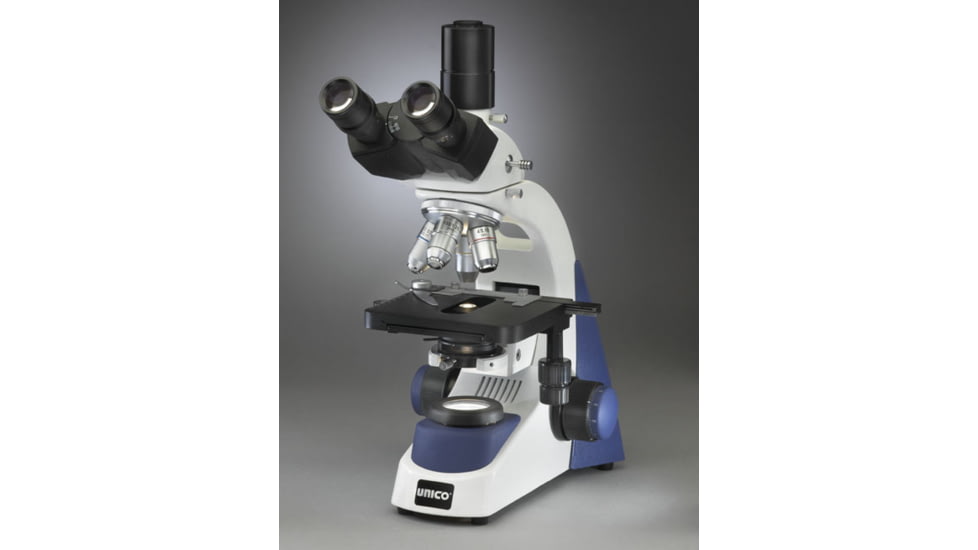

Unico G380 Series Trinocular Microscope is a high-magnification laboratory microscope built for two users or the attachment of a digital camera. These Unico microscopes use the less-common trinocular microscope head, which features a standard binocular eyepiece with an additional third eyepiece on the top of the microscope. The third eyepiece can be removed for the attachment of a microscope camera, or one of your colleagues can use it as an independent 10x eyepiece. The trinocular has independent diopter adjustment for each eyepiece, and they have been engineered to reduce strain for users with glasses. The Unico Triple Eyepiece Microscope can reach magnification rates of up to 1000x using one of its four objective lenses, which include 4x, 10x, 40x, and 400x magnification rates. Unico has outfitted all the objectives on this scientific microscope with anti-glare, color correction, and anti-fungal coatings to reduce inter-slide contamination and give you a clearer view of your subject.

Forget mirrors; the Unico G380 Series Microscope uses a powerful LED lamp to provide bright illumination to all your slides. The light is channeled using a professional-grade, 1.25 NA Abbe condenser, which uses a rack and pinion mechanism to adjust the light from a diffuse to concentrated beam. Manipulating your subject is simple with the Unico Adjustable Trinocular Micro-Scope as well; they feature a mechanical stage with low-position coaxial X-Y controls and smooth, ball bearing-equipped movement. Extra large, smooth focusing knobs eliminate stage drift with customizable tension adjustment, and the streamlined body shape of these Unico microscopes has made both the coarse and fine focusing knobs more accessible. With high powered, highly corrected lenses, fine manipulation capabilities, an exceedingly bright lamp, and a versatile trinocular eyepiece, the Unico G380 Series Trinocular Lab Microscope is an excellent piece of laboratory equipment.

UNICO G383PHT-LED: Trinocular WF10X,EP, 4x Brightfield,10x,40x,100x Semi-Plan Phase w/ Turret Condenser and LED Illum

Specifications for Unico Trinocular Micro Scope:

Dimensions: 9.5" x 7.5" x 16"
Weight: 14 lbs
Microscope Head: Trinocular
Interpupillary Distance: 52mm to 75mm
Eyepiece Zoom: 10x
Objective Zoom: 4x, 10x, 40x, 100x
Objective Lens: Achromatic (G383-LED), Plan Achromatic (G383PL-LED), or Semi-Plan (G383SP-LED)
Condenser: NA 1.25
Diaphragm: Iris
Stage: Mechanical
Illumination: LED bulb
Focus: Coaxial

Features of Unico G383M Medical Trinocular Microscope:

  • High powered, versatile microscope for medical or laboratory use
  • Trinocular eyepieces for camera attachment or dual microscope use
  • 10x eyepieces rotate 360 and lock in place
  • All optics coated with anti-glare, color correction, and anti-fungal coatings
  • 4x, 10x, 40x, and 100x objective lenses; 40x and 100x lenses are retractable
  • Standard 4 hole nosepiece
  • Choose from achromatic, plan achromatic, or semi-plan objective lenses
  • Sturdy cast metal frame with unique polymer accent panel
  • Focusable NA 1.25 Abbe condenser with rack and pinion focusing mechanism
  • Extra-large graduated coarse and fine focus knobs with tension control
  • Built-in graduated mechanical stage with smooth ball bearing movement
  • LED light source with variable intensity rheostat wheel
  • Adjustable Iris diaphragm with metal leaf overlay
  • Includes 5 year limited warranty, excluding bulbs and fuses
  • Comes with plastic dust cover

Package Contents:

  • Unico G380 Series Trinocular Microscope
  • Plastic dust cover
  • Blue filter
  • 2x extra fuses
  • Operation manual
Models & part numbers

UNICO G380 Series Trinocular Microscopes Options

Product Code UPC SKU UNICO G380 Series Trinocular Microscopes Options
UI-MI-G383M-G383-LED G383-LED UNICO LED Illuminated Trinocular WF10X 4X, 10X, 40XR, 100XR Achromat MECH. Abbe N.A. 1.25 G383-LED
UI-MI-G383M-G383SP-LED G383SP-LED UNICO LED Illuminated Trinocular WF10X 4X, 10X, 40XR, 100XR Semi-Plan MECH. Abbe N.A. 1.25 G383SP-LED
UI-MI-G383M-G383PL-LED G383PL-LED UNICO LED Illuminated Trinocular WF10X 4X, 10X, 40XR, 100XR Plan MECH. Abbe N.A. 1.25 G383PL-LED
UI-MI-G383M-G383PHT-LED G383PHT-LED UNICO Trinocular WF10X,EP, 4x Brightfield,10x,40x,100x Semi-Plan Phase w/ Turret Condenser and LED Illum G383PHT-LED
