Product No Longer Available
Unfortunately Humminbird PiranhaMax 143 Marine Sonar Fishfinder is not listed by OpticsForYou.You can also explore other items in the Fishfinders yourself to try and find the perfect replacement for you!
Product Info for Humminbird PiranhaMax 143 Marine Sonar Fishfinder
The Humminbird PiranhaMax 143 Marine Sonar Fishfinder is here at Opticsforyou.com and as usual we offer unbelievable prices !
Purchase your new Humminbird PiranhaMax 143 Marine Sonar Fishfinder from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

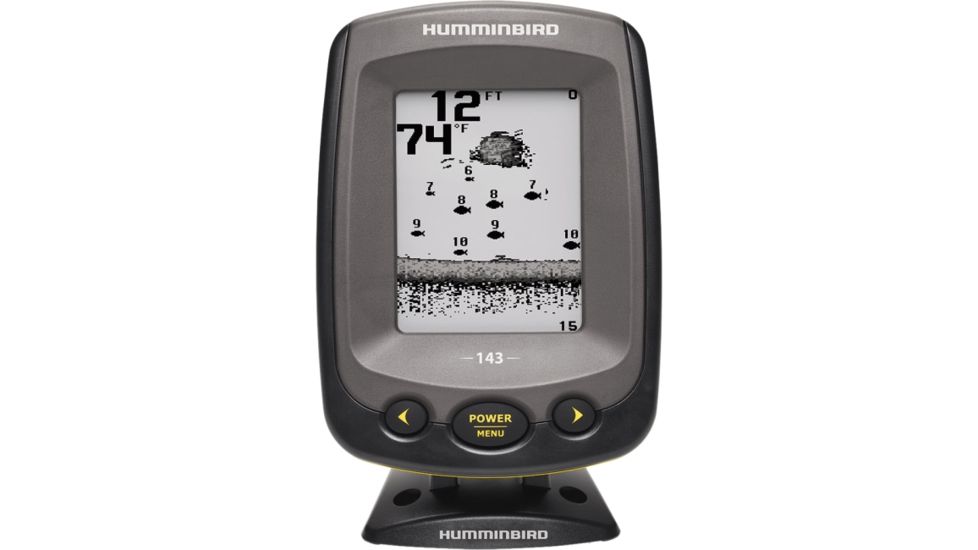

Humminbird PiranhaMax 143 features a 4 level grayscale 160V X 128H, 4" display with 800 watts PTP power output. The design also allows drop-in replacement for competitive in-cash models.
Specifications for Humminbird PiranhaMax 143 Fishfinder:
| Display Size: | 4.0" diagonal |
| Display Pixel Matrix: | 160V x 128H |
| Display Type: | FSTN LCD |
| Display Colors/Grayscale: | 4 Level Grayscale |
| Single Beam Sonar Coverage: | 200 kHz / 20° @ -10db |
| Target Separation: | 2.5 inches |
| Power Output (RMS): | 100 Watts (RMS) |
| Power Output (Peak to Peak): | 800 Watts (Peak-to-Peak) |
| Temperature: | Included |
| Backlight: | Yes |
| Waterproof: | Yes |
| Mount: | Tilt |
| Unit Size: | 4-3/8" W x 6-1/8" H x 3-1/4" D |
| Transducer - Standard: | XNT-9-20-T |
| Transducer Mounting: | Inside Hull or Transom |
| Power Input: | 10-20 VDC |
Features of Humminbird PiranhaMax 143:
- Temperature Sensor
Package Contents:
- Humminbird PiranhaMax 143, 4" FSTN LCD, 800 W Peak, 100 W RMS,200 kHz 4089401
