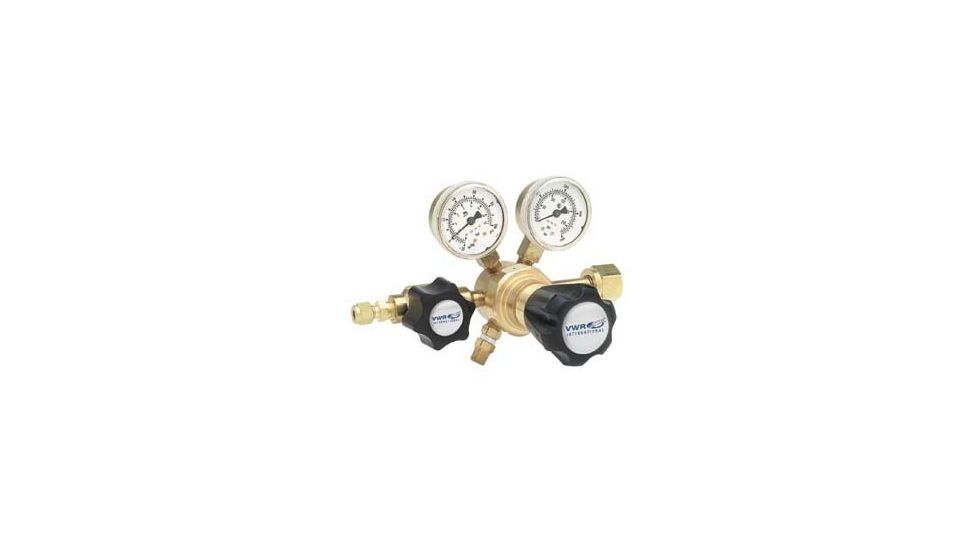

Harris Calorific High-Purity Single-Stage Gas Regulators, Brass 3001150

$37419
Free Shipping
List Price $476.23
You Save $102.04 (21%)
Product Code HF-LB-3001150
UPC
SKU 3001150
Description

Harris Calorific High-Purity Single-Stage Gas Regulators, Brass 3001150

Harris Calorific High-Purity Single-Stage Gas Regulators, Brass is a reliable and dependable addition to the Harris Calorific Labware & Accessories imagefamily of products. Combining top-notch and uncompromising quality with an affordable price, the Harris Calorific High-Purity Single-Stage Gas Regulators, Brass 3001150/ 55850-610 can fulfill your laboratory needs while still offering a great value for the money.

Product Category Description:

Regulators have a brass barstock body and are suitable for a variety of applications where pressure rise is not critical, such as high-purity gas applications, research sample systems, process analyzers, gas chromatography, EPA protocol mixes, laser gas systems, and emission monitoring systems. A stainless steel diaphragm eliminates contamination from diffusion or outgassing. A one-piece PTFE encapsulated seat design includes a sintered filter to protect the seat from particulate contamination. The 1x10-9cc/sec. inboard helium leak rate maintains gas purity levels. Front or back panel mountable.

Other delivery pressures and outlet connections are available; contact our sales representative for information.

Note: For noncorrosive gases only.

Specifications for Harris Calorific High-Purity Single-Stage Gas Regulators, Brass 3001150 :

Gas: Hydrogen
Inlet CGA: 350
Flow Capacity, Standard CFH: 11,430
Delivery Pressure, psig: 1–125
Unit: Each
Maximum Inlet Pressure:  3000 psig
Diaphragm:  Type 316L Stainless Steel, 4.3 cm (111/16")
Dual Scale Gauges:  5 cm (2") psi/bar
Outlet:  Diaphragm Valve with 0.6 cm (1/4") Tube Fitting
Body Ports:  0.6 cm (1/4") NPT
Models & part numbers

Harris Calorific High-Purity Single-Stage Gas Regulators, Brass 3001150 Options

Product Code UPC SKU
HF-LB-3001150 3001150
