Celestron NexImage CCD Solar System Imager 93712
Description

Celestron NexImage CCD Solar System Imager 93712

This model of Celestron Telescope Accessories is discontinued and no longer available. Please, choose from our wide selection of Bushnell Telescope Accessories, Meade Telescope Accessories, TeleVue Telescope Accessories, and other Telescope Accessories on our site.

Celestron NexImage is a complete CCD Solar System Imager capable of producing high quality planetary images with greater light sensitivity and color fidelity than comparable CMOS imagers. Celestron NexImage CCD Solar System Imager 93712 utilizes a CCD imaging chip to capture streaming video of any solar system object. Combined with Celestron NexImage Software Package, Celestron NexImage CCD Imager can bring out tremendous detail and reveal a final image that will rival those taken with astronomical CCD cameras costing thousands of dollars more:
  • Compatibility - threaded on 1.25" adapter barrel makes NexImage compatible with most any telescope.
  • Versatility - 1.25"adapter is threaded for standard eyepiece filters and can be removed and replaced with optional focal reducer lens.
  • Tutorial - step-by-step Quick start and tutorial complete with sample video file that will have you producing quality images your first night out.
  • Power - NexImage uses a 1/4" format color CCD chip that gives the same approximate magnification as a 5mm 50 degree field of view eyepiece.
Celestron NexImage Camera Control Software:
  • Full camera control - allows you to manually change the gain, contrast, exposure time, frame rate and color saturation.
  • Preview mode - shows a live feed of your image making focusing as easy as focusing an eyepiece.
  • Video recording - capture streaming video of solar system object used to generate the final high quality image.
Celestron NexImage Image Processing Software:
  • Frame Lists - automatically allows you to view individual frames of your video stream.
  • Quality cutoff filter - filter out low quality images based on individual frame quality and alignment differences.
  • Wavelet Filter - separates image into a series of unsharp mask layer that can be individually controlled to bring out all the hidden detail of the image.
  • Image Processing Control - maximize your image with the most powerful image processing controls like, contrast, brightness, gamma curve, RGB histogram and many more.
Recommended Minimum System Requirements:
  • PC running Windows 98SE or better
  • 333Mhz Pentium II or better
  • 128 MB of RAM
  • 40 MB of hard drive space
  • Screen resolution of 1024x768 or higher

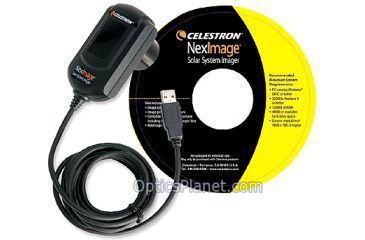

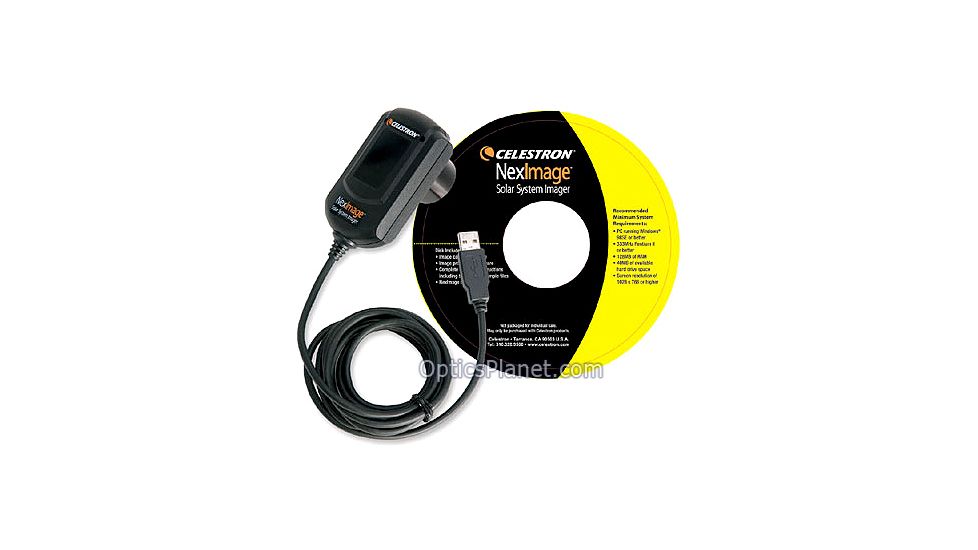

Celestron Nex Image CCD Imager 93712 comes with the following:
  • Celestron NexImage Camera with 1.25" adapter and USB cable attached
  • Celestron NexImage CD-ROM including:
  • Image capture software - to capture streaming video of image
  • Image processing software - to align and stack individual frame into one high quality image.
  • Quick Setup and Tutorial - complete with sample images

Specifications for Celestron NexImage CCD Imager 93712:

Chip:  1/4" format, HAD, color CCD chip
Resolution:  VGA 640x480
Size:  3.6mm x 2.7 (4.5mm diagonal)
Pixel Size:  5.6 micron square
Sensitivity:  <1 lux
USB Cable:  7ft

Features of Celestron NexImage Imager 93712:

  • Compatible with most any telescope
  • Producing high quality planetary images
  • Full camera control - allows you to manually change image settings
  • Quality Cutoff filters out poor images automatically
  • Wavelet Filter separates into a series of easily-controlled unsharp mask layers to unearth image detail
  • Image Processing Control

Package Contents:

  • Celestron NexImage CCD Solar System Imager 93712:
  • NexImage Camera with 1.25" adapter and USB cable attached
  • NexImage Software CD-ROM
Models & part numbers

Celestron NexImage CCD Solar System Imager 93712 Options

Product Code UPC SKU
CI-TA-93712 050234937122 93712
