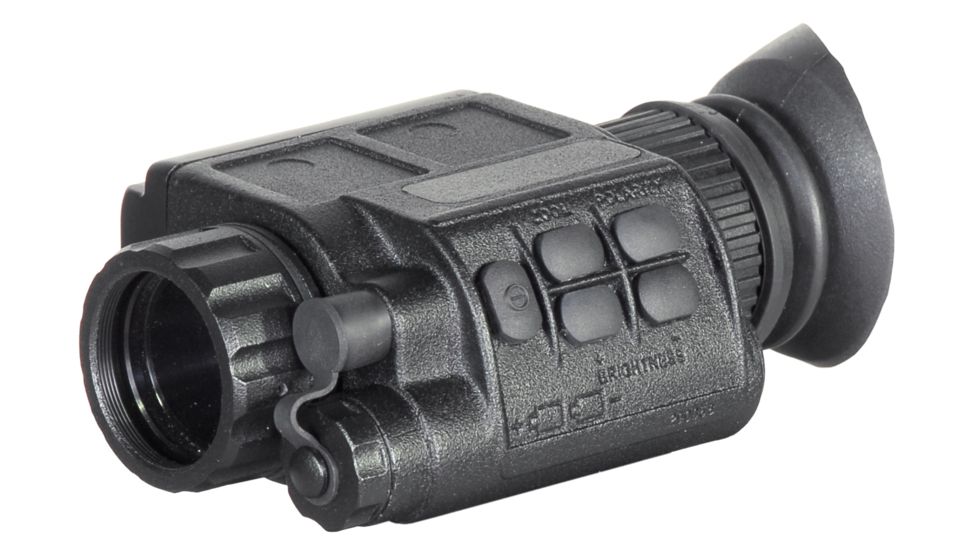

ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular
ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.
Product Info for ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular
The ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular is here at Opticsforyou.com and as usual we offer fantastic deals !
Purchase your new ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular from Opticsforyou.com today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.
The ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular has raised the standard for affordable, small, lightweight thermal imaging viewers. They're pocket-sized, rugged and durable. These ATN OTS-30 Thermal Digital Imaging Monoculars are built around state-of-the-art uncooled thermal imaging technology. ATN OTS-30 Thermal Digital Imaging Multi Purpose Monoculars w/ OLED Color Display offer superior performance, compact size, comfort of wear, and cost efficiency, making them the perfect choice for most any thermal imaging application. ATN OTS-30 Thermal Digital Imagers are ideal for home security, public safety, first responder and security operations.
Specifications for ATN OTS-30 Thermal Digital Imaging Multi Purpose Monoculars w/ OLED Color Display:
Video Frame Rate:
Varies by model - 9Hz, 30Hz, or 60Hz
Magnification:
1X
Objective Focal Length:
19 mm
FOV:
11° x 8°
Focus Range:
3m to infinity
Exit Pupil:
14mm
Eye Relief:
28mm
Detector Type:
Uncooled Microbolometer
Spectral Response:
7-14 μm
Resolution:
320x240
Pixel Size:
25 x 25 μm
Thermal Sensitivity:
< 0,1°C
Range to Detect a Human:
475 m
Output Format:
Analog PAL / NTSC
Display:
Color OLED matrix
Display Format:
SVGA, 800 x 600 pxl
E-ZOOM:
Yes
Brightness Adjustment:
Manual
Contrast Adjustment:
Automatic
Power Supply:
2 x 3 V CR123A type battery
Start-Up Time:
< 5 sec
Operating Time w/ one battery pack:
4+ hrs
Operating Temperature Range:
from -30°C to +60°C
Waterproof:
Yes
Dimensions:
118x81x52 mm
Weight (w/batteries):
0.34 kg
Warranty:
1 year
Features of ATN OTS-30 Thermal Digital Imaging Monoculars:
Compact & lightweight design
Digital imaging
Enhanced Imaging (60hz)
Vanadium oxide (VOx) Microbolometer Uncooled
Rugged design with mil. spec optics
Menu functions include reticle type & color selection; windage & elevation adjustment
Digital brightness control
Polarity single button modes: black on white, white on black, 5 different color settings
E-zoom
Video output with RCA cable
Diopter range: +2° to -6°
Eye relief: 28mm
Extended battery life using two (2)
CR123 lithium batteries (4-plus hours)
4 different reticles with choice of reticle color: black, red, green, or white
MIL-STD-1913 (Picatinny Rail) Quick Release Mount
Head/helmet mountable for hands-free use
Weapon mountable
One-year warranty
Package Contents:
ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular
